ASUS PRIME A520M-K AMD AM4 M/ATX BOARD

0.0 No reviews yet Write a review
SKU: 90MB1500-M0EAY0
New Supplier has stock — 1 avail

ASUS PRIME A520M-K micro-ATX AM4 motherboard with dual-channel DDR4, PCIe and SATA M.2 support, four SATA ports and Gigabit Ethernet.

R1,649.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: abb4e390MB1500-M0EAY0
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

ASUS PRIME · AMD AM4

A compact AM4 board with room for four SATA drives

The PRIME A520M-K puts an AM4 socket, two DDR4 slots and a full-length graphics slot on a 226 × 221 mm board. One M.2 socket accepts either a PCIe or SATA SSD. Four separate SATA ports leave room for additional drives.

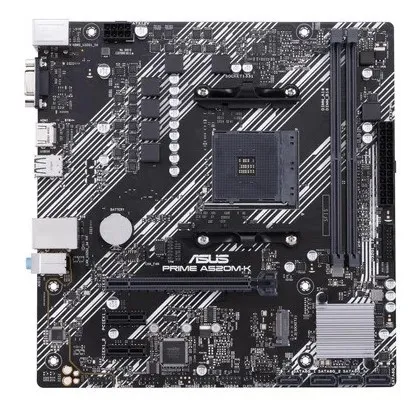

ASUS PRIME A520M-K board showing its AM4 socket, two DDR4 slots and PCIe expansion slots
AM4Check the CPU and BIOS pair
64 GBTwo DDR4 DIMM slots
1 × M.2PCIe 3.0 ×4 or SATA

PROCESSOR AND MEMORY

Choose the processor and memory together

ASUS lists selected Ryzen 3000, 4000 G and 5000 desktop processors, including supported 3000 G and 5000 G models. Check the exact processor and required BIOS before installation. The two DIMM slots operate in dual channel with a supported pair. ECC operation depends on the processor, and overclocked memory rates depend on the CPU, modules and BIOS.

STORAGE AND EXPANSION

Give the boot drive its own socket

The single M-key socket fits 2242, 2260 and 2280 drives and supports PCIe 3.0 ×4 or SATA. Four SATA 6 Gb/s ports support RAID 0, 1 and 10. The full-length PCIe 3.0 ×16 graphics slot operates at ×16 with listed processors. Two PCIe 3.0 ×1 slots take smaller add-in cards.

DISPLAY AND I/O

Plan the rear connections before assembly

Use the rear HDMI or VGA output with a processor that supplies graphics. ASUS lists up to 4K at 60 Hz through HDMI with a compatible processor, cable and display. Rear USB includes four 5 Gb/s Type-A ports, and the PS/2 combo port can take a compatible keyboard or mouse.

COOLING AND BUILD

Tune the CPU and chassis fans

The CPU and chassis headers each have four pins. ASUS documents hybrid PWM and DC fan control through Fan Xpert or UEFI. The board has an aluminium heatsink and the ASUS 5X Protection III hardware features listed below.

Specifications

Platform

ModelASUS PRIME A520M-K
Order code90MB1500-M0EAY0
Socket and chipsetAM4, AMD A520
ProcessorsSelected Ryzen 3000, 3000 G, 4000 G, 5000 and 5000 G desktop processors. Verify exact CPU and minimum BIOS in ASUS support.
Form factorMicro-ATX, 226 × 221 mm
OS listed by ASUSWindows 11 and Windows 10 64-bit

Memory and expansion

DIMMs2 × DDR4 unbuffered DIMM, dual channel, 64 GB maximum combined
Speed and ECCUp to DDR4-3200 at standard settings when supported. The manual lists up to DDR4-4600 OC, and the current specifications list selected higher OC profiles. Verify the memory QVL and installed configuration. ECC mode depends on the CPU.
PCIe1 × PCIe 3.0 ×16 at ×16 and 2 × PCIe 3.0 ×1
M.21 × M-key 2242, 2260 or 2280, PCIe 3.0 ×4 or SATA
SATA4 × 6 Gb/s, RAID 0, 1 and 10

Rear connections

Displays1 × HDMI, up to 4K at 60 Hz, and 1 × VGA. Graphics-capable CPU required.
USB and input4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A, 1 × PS/2 keyboard or mouse
NetworkRealtek RTL8111H Gigabit Ethernet with ASUS LANGuard
AudioRealtek 7.1 HD audio, three rear jacks, shielding and dedicated PCB layers. Requires a case with front-panel HD audio for 7.1 output.

Internal connections and safeguards

USB headers1 × USB 3.2 Gen 1 for two front ports, 2 × USB 2.0 for four front ports
Fan and power1 × four-pin CPU fan, 1 × four-pin chassis fan, 24-pin ATX and 8-pin CPU +12 V
Other headersFront-panel audio, system panel, clear CMOS, COM, S/PDIF out, speaker and 14-1 pin SPI TPM
5X Protection IIIDIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core and stainless-steel rear I/O
TuningFan Xpert and UEFI controls. ASUS also lists EZ Flash 3 and CrashFree BIOS 3.

Check the exact CPU, BIOS and memory QVL before assembly. Match the case standoffs and front-panel connectors to the board layout.
