MSI B650M PROJECT ZERO MotherBoard

0.0 No reviews yet Write a review
SKU: B650MPROJECTZERO
New Supplier has stock — 10 avail

MSI B650M PROJECT ZERO back-connect AM5 micro-ATX board with four DDR5 slots, two M.2 positions, Wi-Fi 6E and 2.5 GbE.

R5,309.00

VAT included · Secure checkout

Supplier has stock — 10 avail

Key product details

Full specifications below
  • Ean: 4711377126649
  • Gtin: 4711377126649
  • Brand: MSI
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 10 avail Supplier has stock — 10 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Official manufacturer overview

MSI PROJECT ZERO family overview

MSI Gaming · MSI shows the rear-connector design shared by PROJECT ZERO family motherboards. This listing is for the B650M PROJECT ZERO, an AM5 micro-ATX board. Check the case support for this exact board.

Play to load this video from YouTube.

MSI B650M PROJECT ZERO · BACK-CONNECT AM5

Route the motherboard cables behind the tray

The B650M PROJECT ZERO moves major power and case headers to the back of the board. Pair it with a compatible back-connect micro-ATX case, then plan memory and drive placement around the AM5 processor you choose.

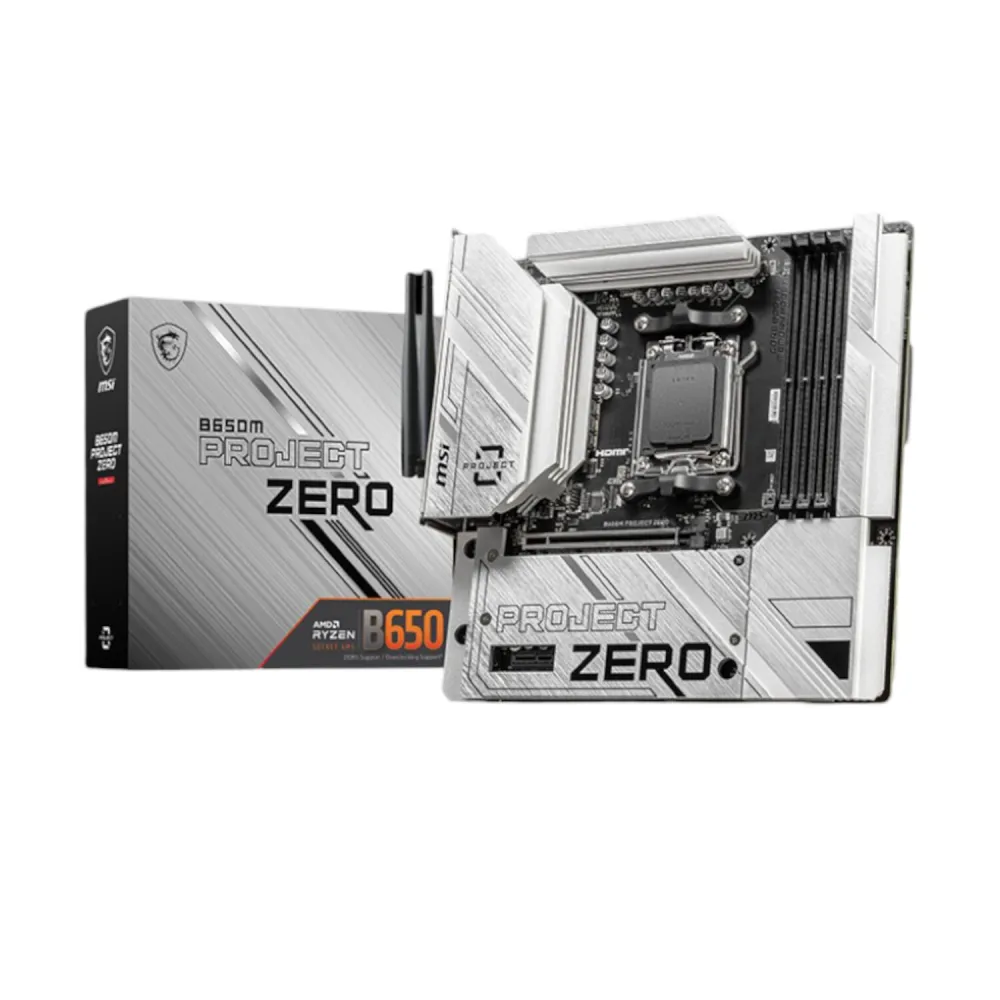

MSI B650M PROJECT ZERO silver and black micro-ATX motherboard beside its box
4 DDR5 DIMMsUp to 256 GB with compatible memory
2 × PCIe 4.0 M.2Second slot availability depends on processor
2.5 GbE + Wi-Fi 6EWired and wireless networking

CHASSIS

Check the case cut-outs before assembly

This micro-ATX board uses MSI’s back-connect layout. Select a case with the matching rear openings and clearance, such as a compatible MAG PANO M100R PZ configuration. The extended VRM heatsink and M.2 Shield Frozr cover the corresponding components.

MEMORY

Choose the number and rank of DIMMs deliberately

The board has four DDR5 slots and supports up to 256 GB with compatible BIOS and DIMMs. MSI’s listed overclocking limits vary with ranks and DIMMs per channel. Use the board’s CPU and memory support lists to plan a build.

EXPANSION

Match lane width and M.2 availability to your CPU

The full-length slot is PCIe 4.0 and runs up to x16 on Ryzen 9000/7000, x8 on Ryzen 8700/8600/8400 or x4 on 8500/8300 according to MSI. The two CPU-fed M.2 slots support up to PCIe 4.0 x4. M2_2 is unavailable with Ryzen 8500/8300.

CONNECTIVITY

Separate the rear I/O from the internal headers

Rear USB-C includes a 20 Gb/s port and a separate 10 Gb/s port. The board also has a 10 Gb/s front-panel USB-C header, 2.5 GbE, Wi-Fi 6E and Bluetooth 5.3. Six-gigahertz availability depends on country and operating-system support.

SETUP

Identify BIOS and boot issues at the board

Flash BIOS and Clear CMOS controls are available at the rear. Four EZ Debug LEDs help identify the stage where a system fails to boot. Check MSI’s CPU support list for the BIOS requirement of the processor you install.

Specifications

Platform and chassis

ModelB650M PROJECT ZERO
Chipset and socketAMD B650, AM5
Processor supportRyzen 9000, 8000 and 7000 desktop families. Check exact CPU and minimum BIOS in MSI compatibility list.
Board fitBack-connect micro-ATX, 243.84 × 243.84 mm; requires compatible rear cut-outs
Power delivery1 × 24-pin ATX and 2 × 8-pin CPU power; 10+2 power-stage design

Memory

Slots and total4 × DDR5 DIMMs, dual-channel, up to 256 GB
Listed ratesDDR5-4800 JEDEC; overclocked profiles up to 7600+ MT/s, subject to population, CPU and kit
One DIMM per channelSingle-rank up to 7600+ MT/s OC; dual-rank up to 6400+ MT/s OC
Two DIMMs per channelSingle-rank up to 6400+ MT/s OC; dual-rank up to 5400+ MT/s OC

Graphics, expansion and storage

Display outputsHDMI 2.1 HDR and DisplayPort 1.4, up to 4K at 60 Hz where supported by integrated graphics
PCI_E1CPU PCIe 4.0, full-length; x16 Ryzen 9000/7000, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300
PCI_E2Chipset PCIe 3.0 x1
M.22 × CPU-fed PCIe 4.0 x4 maximum, supports 2260/2280; M2_2 unavailable with Ryzen 8500/8300
SATA4 × SATA 6 Gb/s
RAIDMSI lists SATA RAID 0/1/10 and NVMe RAID 0/1; SATA_A1/A2 do not support RAID, so check topology before selecting a configuration

Networking, audio and I/O

Wired LANRealtek RTL8125BG 2.5 GbE
WirelessAMD Wi-Fi 6E in M.2 Key-E, 802.11a/b/g/n/ac/ax, MU-MIMO, 20/40/80 MHz; Bluetooth 5.3
AudioRealtek ALC897 7.1 HD audio; up to 32-bit/384 kHz front playback per MSI
Rear USB2 × USB 2.0, 2 × USB-A 5 Gb/s, 3 × USB-A 10 Gb/s, 1 × USB-C 10 Gb/s and 1 × USB-C 20 Gb/s
Other rear I/OHDMI, DisplayPort, Ethernet, Wi-Fi/Bluetooth antenna, audio, Flash BIOS and Clear CMOS
Front USB via headers4 × USB 2.0, 2 × USB-A 5 Gb/s, 1 × USB-C 10 Gb/s

Headers and offer

Cooling1 CPU fan, 1 pump fan, 3 system fan headers
Other headers2 front-panel connectors, chassis intrusion, front audio, 3 addressable V2 RGB and TPM 2.0 header
Diagnostics and OS4 EZ Debug LEDs; MSI lists Windows 11 and Windows 10 64-bit
BoxBoard, quick guide, EU regulatory notice, two SATA cables, Wi-Fi antenna and cable stickers per local listing
Local offer warranty36 months

Check chassis cut-outs, BIOS, memory QVL, CPU lane allocation and SATA port assignments. Use integrated-graphics video outputs only with a supporting CPU.
