GIGABYTE A520M S2H
Plan an AM4 build around the board layout

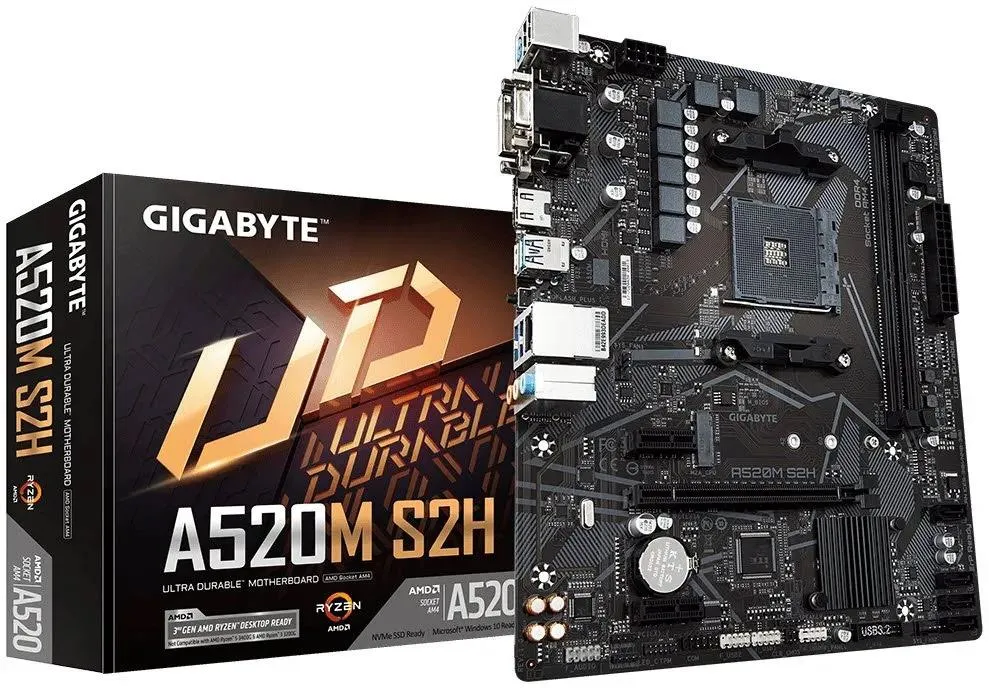

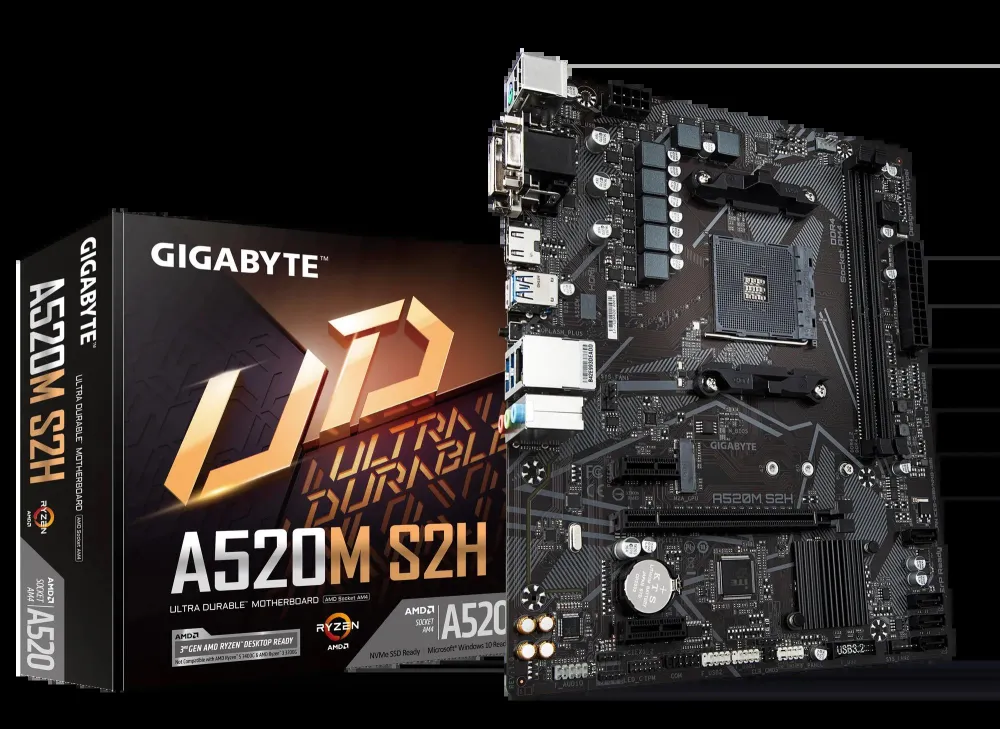

The A520M S2H gives an AM4 desktop two DDR4 memory slots, a processor-connected M.2 socket and four SATA ports on a microATX board. Choose the processor and memory together, then check the exact board revision and BIOS before assembly.

CPU AND MEMORY
Match the processor, BIOS and memory
Gigabyte lists selected Ryzen 3000 and 5000 desktop processors and Ryzen 3000 G, 4000 G and 5000 G models for rev. 1.x. Check the exact processor and minimum BIOS on the support list. Use a matching unbuffered DIMM in each of the two slots for dual channel.

STORAGE AND EXPANSION
Choose how your drives and cards will fit
The M.2 socket accepts SATA and PCIe 3.0 x4 or x2 SSDs in 2242, 2260 and 2280 lengths. Four chipset SATA connectors serve additional drives. The CPU-connected x16 slot and two chipset x1 slots provide separate expansion positions. Check card thickness and cooler clearance in your case.

PORTS AND CONTROLS
Match the rear ports to your processor

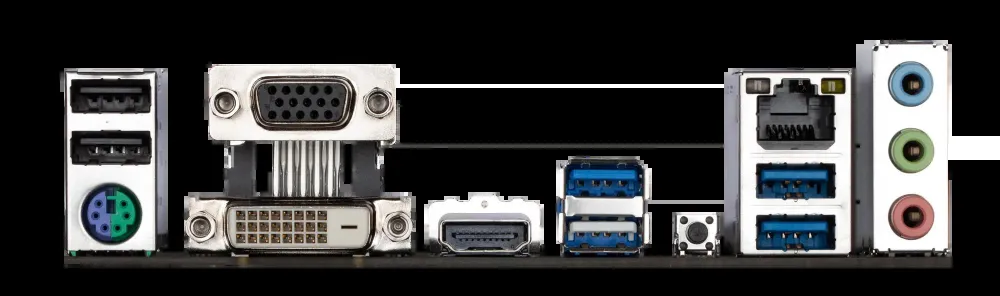

HDMI, DVI-D and VGA use the processor’s supported integrated graphics. Gigabit Ethernet, six rear USB ports and analogue audio connect the rest of the desk. The Q-Flash Plus button is documented for rev. 1.x. Check the printed revision before choosing a BIOS file.

BUILD DETAILS
Route the power and cooling cables

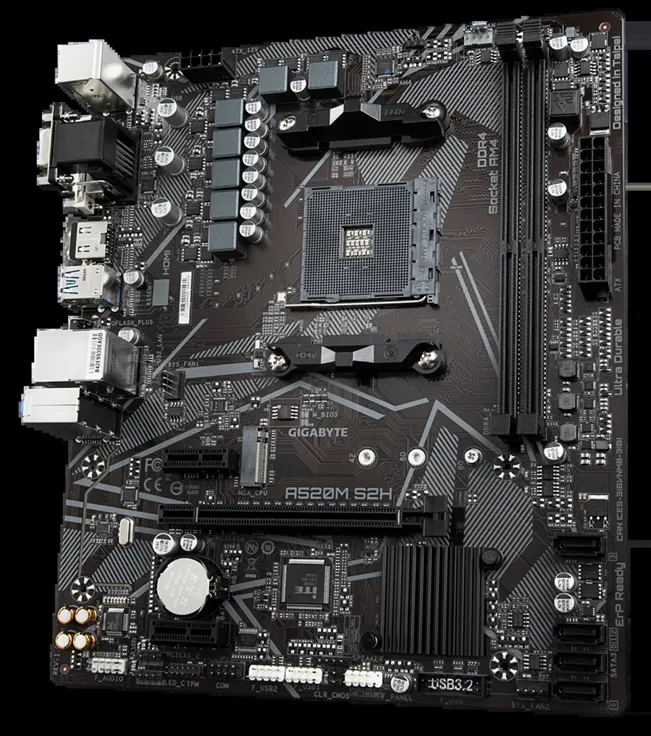

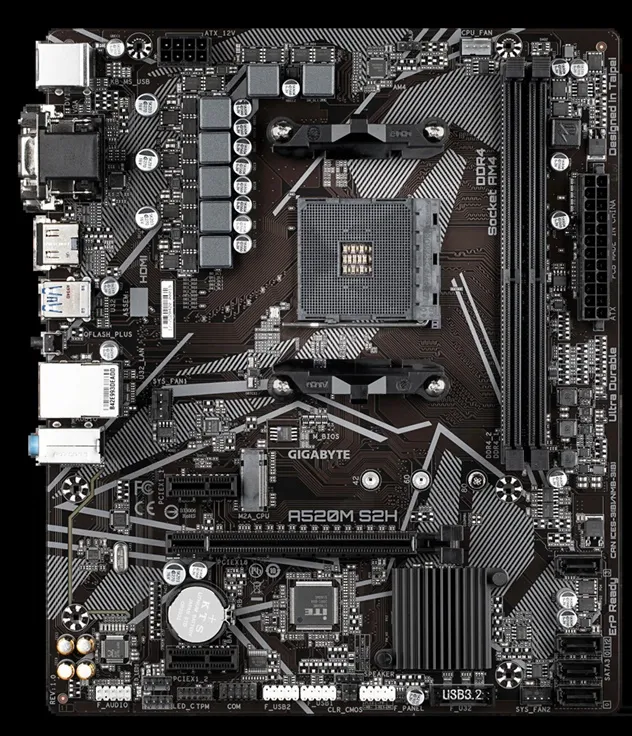

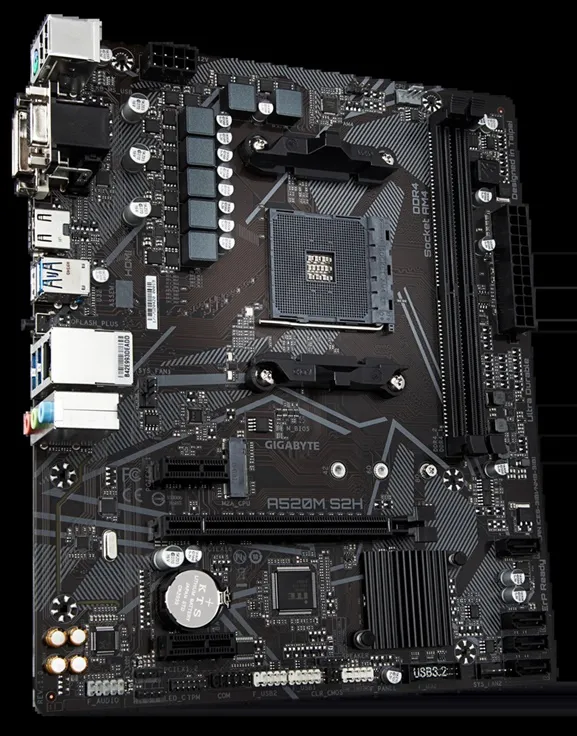

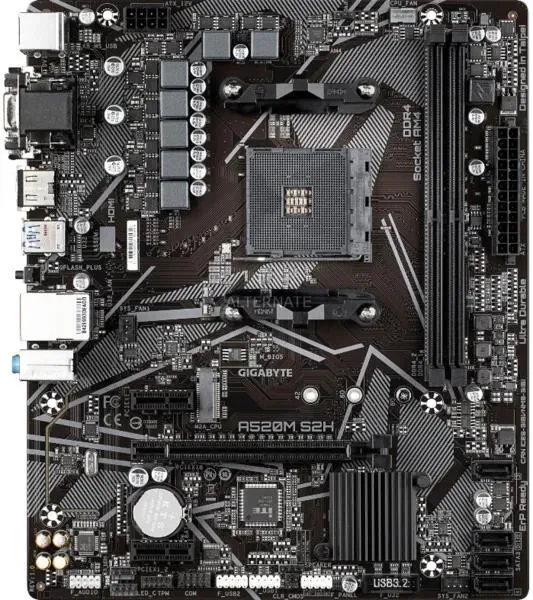

Connect the 24-pin main and 8-pin CPU power leads. The board layout identifies the CPU fan and two system fan headers, front-panel USB and separate digital and analogue lighting headers.
