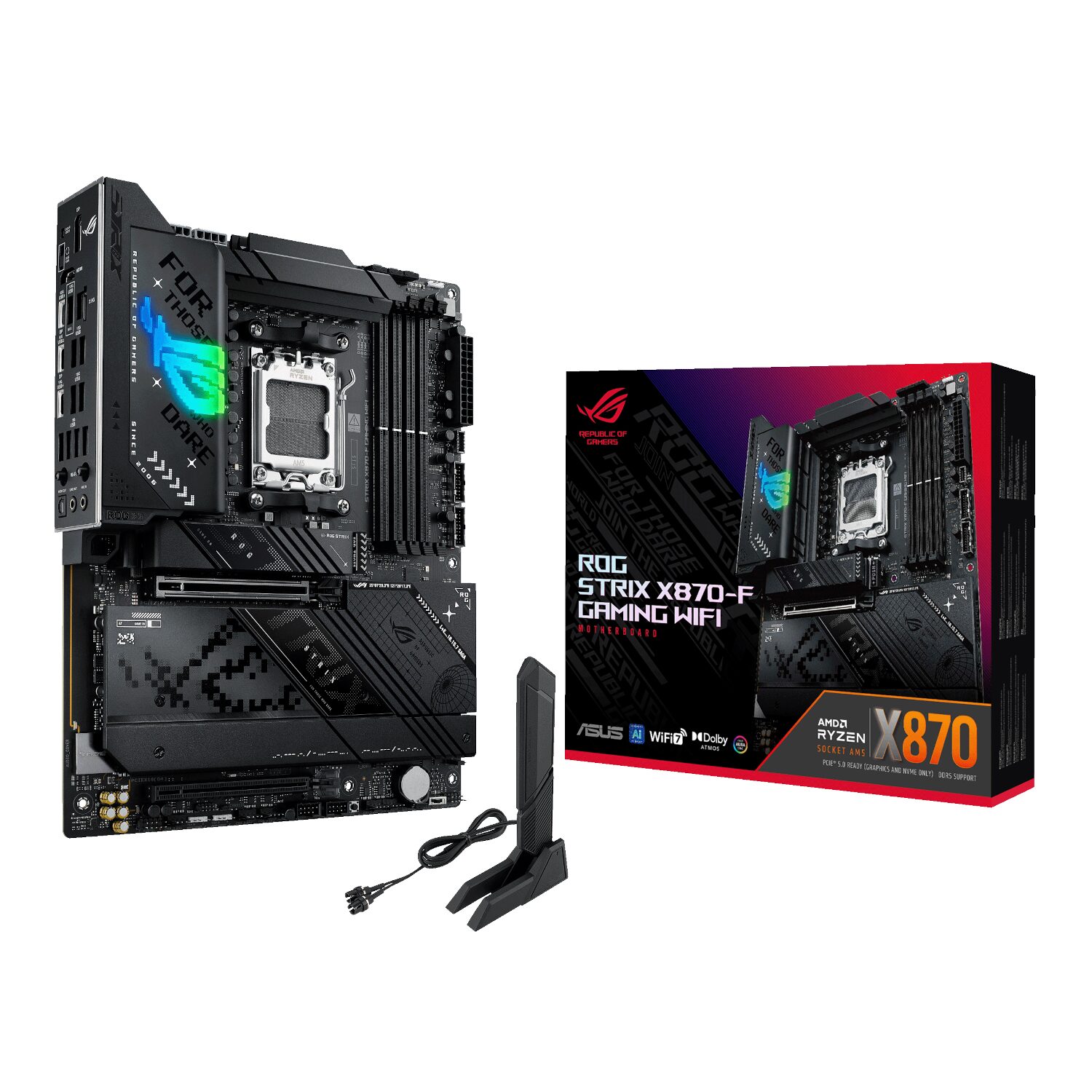

ASUS ROG Strix X870-F Gaming WiFi ATX AM5 motherboard with four DDR5 slots, four M.2 positions, dual40Gbps USB4, Intel2.5Gb Ethernet and Wi-Fi7. CPU-dependent lane modes and M.2 sharing apply.
R11,149.00
Out of stock
Clear fulfilment, warranty and payment details.
ROG Strix • X870-F Gaming WiFi • AMD AM5
ROG Strix X870-F Gaming WiFi combines an AMD AM5 socket, four DDR5 slots and an ATX layout with two USB4 ports, Intel 2.5Gb Ethernet and Wi-Fi 7. Four M.2 positions give storage room to grow, but their lane sharing matters: populating M.2_2 reduces the primary graphics slot to x8, and using M.2_3 disables the chipset expansion slot. Choose the processor, memory kit and drive layout as one system.
Platform and power
The X870 chipset and AM5 socket support listed Ryzen 9000, 8000 and 7000 desktop processors. ASUS specifies a 16+2+2 power-stage arrangement, with dual 8-pin CPU power inputs, substantial VRM heatsinks and 5K metallic capacitors. Confirm the exact processor on the CPU support list and the required BIOS before installation; socket compatibility alone does not establish every processor and shipping firmware combination.
Memory planning
Four DDR5 DIMM slots support up to 256GB total, with dual-channel architecture, AMD EXPO and ASUS Enhanced Memory Profile support. The advertised 8000+MT/s figure is an overclocked capability that depends on the processor, module kit, BIOS and population. It is not a guaranteed speed for four high-capacity modules. Match the exact kit and installed module count against ASUS qualification data; default operation follows the module SPD.
Graphics and storage
With Ryzen 9000 or 7000 processors, the primary slot supports PCIe 5.0 x16 and M.2_1/M.2_2 support PCIe 5.0 x4. Occupying M.2_2 reduces that graphics slot to x8. The chipset provides M.2_3/M.2_4 at PCIe 4.0 x4, but M.2_3 shares with the lower expansion slot and disables it when occupied. Ryzen 8000 changes the primary slot to PCIe 4.0 x8/x4, limits M.2_1 to PCIe 4.0 x4/x2 and disables M.2_2; check the particular CPU.
Rear and front connections
The rear panel combines two 40Gbps USB4 Type-C ports, six 10Gbps USB ports and four 5Gbps Type-A ports. One of the 10Gbps Type-C connections supports up to 30W USB Power Delivery; the USB4 ports are specified separately at up to 5V/3A. An internal 20Gbps Type-C connector and four each of 5Gbps and USB2 ports support a suitably equipped chassis. DisplayPort, HDMI and USB4 display output depend on the processor graphics and connected display.
Network and sound
Intel 2.5Gb Ethernet provides the wired connection, while the supplied Q-Antenna serves a 2×2 Wi-Fi 7 module. ASUS lists Qualcomm or MediaTek module variants, so inspect the board label before selecting wireless drivers. Full Wi-Fi 7 functions require Windows 11 24H2 or later, suitable networking equipment and permitted regional bands. SupremeFX ALC4080 audio, a Savitech amplifier and optical S/PDIF provide several audio paths; rear line-out does not support spatial audio.
Cooling and assembly
Dedicated CPU, CPU OPT and AIO pump headers sit alongside five chassis-fan headers, while three Addressable Gen2 headers support compatible lighting. M.2 heatsinks and a backplate support the storage installation. Q-Latch, Q-Release, Q-Slide and PCIe Slot Q-Release Slim simplify component handling, with Q-LED indicators for CPU, memory, graphics and boot checks. BIOS FlashBack and Clear CMOS buttons are on the rear panel; follow the exact model manual before using them.
Control and software
ASUS provides AI Overclocking, AI Cooling II through Fan Xpert4, GameFirst and Armoury Crate/Aura tools, alongside UEFI BIOS controls and monitoring utilities. Overclocking results depend on the chosen processor, cooling and memory. Bundled AIDA64, Adobe, Norton and WinRAR offers are time-limited trials or promotions, subject to availability and terms; they are not perpetual licences. Download drivers and firmware from the exact X870-F support route and match the installed wireless module and operating system.
| Manufacturer / model | ASUS ROG Strix X870-F Gaming WiFi |
|---|---|
| CPU socket / families | AMD AM5; Ryzen9000,8000,7000 desktop families; exact CPU/BIOS support list governs |
| Chipset | AMD X870 |
| Power stages | 16 ×110A +2 ×110A +2 ×80A, manufacturer feature page |
| Main power | 1 ×24-pin |
| CPU power | 2 ×8-pin +12V; ProCool II |
| Power components | Extreme Engine Digi+;5K black metallic capacitors |
| Form factor / size | ATX;305 ×244mm |
| BIOS | 256Mb Flash ROM;UEFI AMI BIOS |
| CPU BIOS qualification | Verify exact CPU and minimum BIOS on manufacturer support before build; no universal minimum version claimed |
| Slots / total | 4 ×DIMM;maximum256GB total |
|---|---|
| Type | DDR5 ECC/non-ECC unbuffered, CPU and kit dependent |
| Channels | Dual channel |
| Advertised data rate | Up to8000+MT/s OC;not guaranteed across CPU/kit/population |
| Profiles | AMD EXPO;ASUS AEMP |
| Default operation | Module SPD;may be lower than marketed OC speed |
| Per-module / population limit | Exact64GB-module and4-DIMM kit qualification not established;256GB total is not blanket approval for every64GB module |
| Population rates | Consult exact CPU/memory QVL for1/2/4-module rates;no single speed promised for all populations |
| On-die ECC | Supported within non-ECC DDR5;not equivalent to system-level ECC |
| Primary slot, Ryzen9000/7000 | 1 ×PCIe5.0 x16 physical/electrical x16,subject toM.2_2 sharing |
|---|---|
| Primary slot, Ryzen8000 | PCIe4.0 x8/x4 depending CPU |
| Lower slot | 1 ×PCIe4.0 x16 physical,x4 electrical via chipset |
| M.2_2 sharing | Occupied M.2_2 reduces primary PCIEX16(G5) to x8 |
| M.2_3 sharing | Occupied M.2_3 disables lower PCIEX16(G4) |
| Bifurcation | CPU/device dependent;consult exact manufacturer bifurcation support table |
| M.2 count / key | 4 ×KeyM |
|---|---|
| M.2_1 lengths | 2242/2260/2280 |
| M.2_1 Ryzen9000/7000 | PCIe5.0 x4 |
| M.2_1 Ryzen8000 | PCIe4.0 x4/x2,CPU dependent |
| M.2_2 lengths | 2242/2260/2280/22110 |
| M.2_2 Ryzen9000/7000 | PCIe5.0 x4;shares primary graphics lanes |
| M.2_2 Ryzen8000 | Disabled |
| M.2_3 | 2280;PCIe4.0 x4;shares lower expansion slot |
| M.2_4 | 2280;PCIe4.0 x4 |
| SATA | 2 ×SATA6Gb/s |
| RAID | AMD RAIDXpert2;PCIe0/1/5/10 and SATA0/1;RAID5 only Ryzen9000 |
| DisplayPort | 1 ×DP1.4;up to8K30,CPU dependent |
|---|---|
| HDMI | 1 ×HDMI2.1;up to4K60,CPU dependent |
| USB4 displays | 2 ×Type-C display outputs;DP1.4a up to4K60,CPU dependent |
| Ethernet | Intel2.5Gb Ethernet;ASUS LANGuard |
| Wi-Fi | 2×2 Wi-Fi7 802.11be;2.4/5/6GHz;320MHz where permitted |
| Wireless module | Qualcomm QCNCM865 or MediaTek MT7927;inspect supplied label |
| Wireless OS conditions | Full Wi-Fi7 requires Windows11 24H2+;earlier listed Windows11 releases limited toWi-Fi6E;no Windows10 wireless driver listed |
| Bluetooth | Listed5.4;module/driver dependent |
| Band availability | Country,router,OS and regulatory conditions apply;no universal6GHz/320MHz guarantee |
| Rear USB4 | 2 ×40Gbps Type-C;DP Alt Mode;each up to5V/3A output |
|---|---|
| Rear10Gbps | 5 ×Type-A +1 ×Type-C |
| Rear10Gbps Type-C PD | Up to30W;5V/9V3A,12V2.5A,15V2A |
| Rear5Gbps | 4 ×Type-A |
| Rear audio | 2 ×analogue audio jacks;1 ×optical S/PDIF |
| Rear service buttons | BIOS FlashBack;Clear CMOS |
| Rear other | DisplayPort;HDMI;Wi-Fi antenna connections;RJ45 Ethernet |
| Front USB20Gbps | 1 ×Type-C connector |
| Front USB5Gbps | 2 headers for4ports |
| Front USB2.0 | 2 headers for4ports |
| Codec | SupremeFX ALC4080;7.1 high-definition audio |
|---|---|
| Amplifier | Savitech SV3H712 |
| Rated SNR | 120dB stereo playback;110dB recording |
| Front playback | Up to32-bit/384kHz |
| Functions | Front/rear headphone impedance sensing;jack detection;multistreaming;front microphone retasking |
| Construction | SupremeFX shielding;premium capacitors;audio cover |
| Spatial audio condition | Rear LINE OUT does not support spatial audio;use suitable front-panel or USB audio path |
| Cooling headers | CPU_FAN;CPU_OPT;AIO_PUMP;5 ×chassis fan,all4-pin |
|---|---|
| Lighting | 3 ×Addressable Gen2 headers;Aura Sync |
| Other headers | Chassis intrusion;CPU overvoltage jumper;front audio;10-1pin system panel;thermal sensor |
| Onboard controls | Start button;Alteration PCIe mode switch |
| Diagnostics | Q-LED CPU red,DRAM yellow,VGA white,boot yellow-green |
| Installation | M.2 Q-Latch/Q-Release/Q-Slide;PCIe Slot Q-Release Slim;Q-Antenna;Q-Dashboard;Q-DIMM;Q-Slot;SafeSlot;SafeDIMM |
| Cooling hardware | VRM/chipset heatsinks;M.2 heatsinks and backplate |
| Rear shield | Pre-mounted I/O shield |
| Operating system | Windows11 |
|---|---|
| Management | Wake-on-LAN byPME;PXE |
| ASUS tuning | AI Overclocking;FanXpert4/AI CoolingII;Dynamic OC Switcher;FlexKey;TurboV Core |
| Utilities | Armoury Crate;Aura Creator/Sync;GameFirst;HWiNFO;Power Saving;DriverHub;GlideX;USB Wattage Watcher;ROG CPU-Z;Dolby Atmos |
| UEFI utilities | CrashFree BIOS3;EZ Flash3;EZ Mode;MyHotkey;AI Overclocking Guide |
| Trial offers | AIDA64 Extreme60days;Norton360 for Gamers60days;WinRAR40days;Adobe Creative Cloud promotion subject to terms |
| Supplied cables / antenna | 2 ×SATA6Gb/s cables;1 ×ASUS WiFi Q-Antenna |
| M.2 accessories | 1 ×22110 thermal pad;Q-Latch package;Q-Slide package;4 ×rubber packages |
| Other supplied items | Cable ties package;ROG keychain;ROG Strix stickers;quick-start guide |
| Warranty | 36months in original supplier record;regional manufacturer entitlement not independently established |
Check the exact CPU minimum BIOS, memory kit and populated slot count before assembly. M.2_2 and M.2_3 change expansion-slot availability. Match wireless drivers to the supplied module and Windows release. Manufacturer interface maxima and overclocked memory rates are not guaranteed application throughput.
