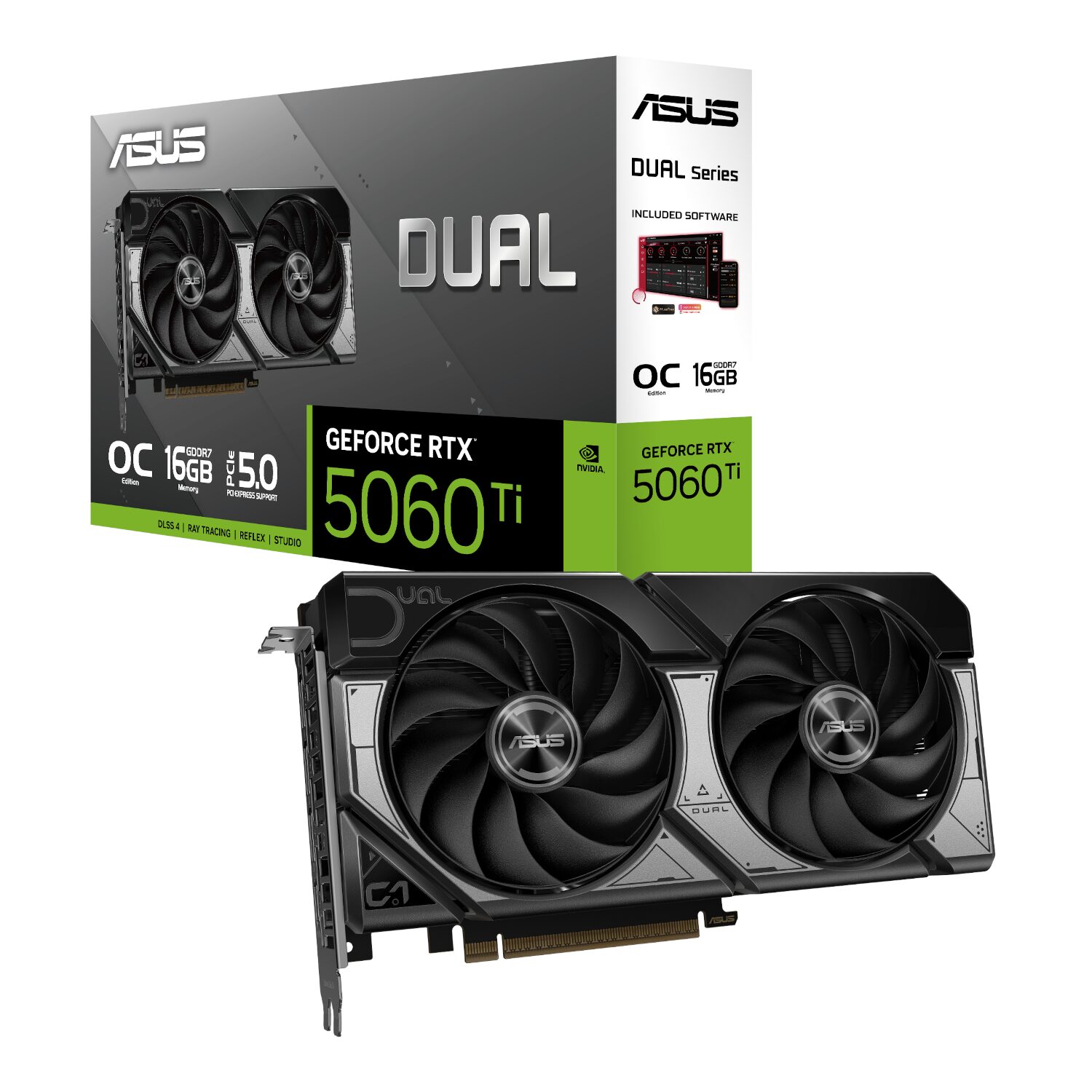

ASUS Dual GeForce RTX 5060 Ti OC Edition with 16GB GDDR7, 2602 MHz default boost / 2632 MHz OC mode, two Axial-tech fans, four-display support and a 229mm, 2.5-slot design.
R21,009.00
Supplier has stock — 10 avail
Clear fulfilment, warranty and payment details.
ASUS Dual • GeForce RTX 5060 Ti OC Edition
The ASUS Dual GeForce RTX 5060 Ti OC Edition pairs 16GB of GDDR7 memory with a dual-fan cooler in a 2.5-slot design. NVIDIA Blackwell graphics bring ray tracing and DLSS 4 support to compatible games and creative applications. Exact model DUAL-RTX5060TI-O16G keeps the important build choices clear: clocks, connections, power and physical fit.
Graphics and memory
With 4,608 CUDA cores and a 128-bit memory interface, this card carries 16GB of GDDR7 running at a specified 28 Gbps. Fifth-generation Tensor Cores and fourth-generation ray-tracing cores are part of the Blackwell design. DLSS 4, including Multi Frame Generation, depends on supported games, settings and drivers; the feature list is not a guaranteed frame rate or a promise of 8K gaming performance.
Clock modes
ASUS specifies a 2602 MHz boost clock in Default mode and 2632 MHz in OC mode. These are mode-specific rated clocks, not a fixed clock under every workload. GPU Tweak III provides monitoring and tuning controls; actual operating behaviour depends on the workload, temperature, power and system settings. Overclocking should be approached with the complete system in mind.
Cooling layout
Two Axial-tech fans direct airflow through the heatsink and heat pipes, with a vented backplate and dual-ball fan bearings. The 0dB stop mode halts the fans when GPU temperature falls below 50°C and power consumption is low. Under load, fan speed and system acoustics depend on operating conditions; the feature is not a silent-gaming guarantee.
Engineering and control
A Dual BIOS switch offers Performance and Quiet modes. ASUS describes Quiet mode as retaining the power target and top-end settings with a less aggressive fan curve. The protective backplate supports the board, while Auto-Extreme manufacturing completes soldering in a single pass. The compact cooler still needs clear intake and exhaust paths inside the case.
Display connections
One native HDMI 2.1b and three native DisplayPort 2.1b outputs support up to four displays simultaneously. The specified maximum digital resolution is 7680 × 4320, with HDCP 2.3 support. Resolution, refresh rate and available display features depend on the selected output, monitor, cable and configuration. A maximum output resolution is not a performance benchmark.
System fit and power
The card measures 229 × 120 × 50mm and occupies 2.5 slots. Allow room for the 8-pin power connection and cable routing as well as the card itself. ASUS recommends a 550W system power supply based on a fully overclocked GPU-and-CPU system; choose for the whole build, connector availability and PSU guidance. Compact dimensions do not establish universal small-form-factor case compatibility; check the exact enclosure, slot positions and surrounding components.
Software and ownership
Use the official ASUS model support page for drivers, GPU Tweak III, available utilities and documentation. Select the operating system and check model applicability before downloading; Windows 10 64-bit and Windows 11 64-bit selections were listed at review. Game Ready and Studio drivers serve different usage needs. MuseTree is listed by ASUS as an optional creative utility; availability and requirements should be checked on support. Firmware tools, where offered, require exact-model instructions and are not an automatic installation recommendation.
| Manufacturer | ASUS |
|---|---|
| Exact model | DUAL-RTX5060TI-O16G |
| Series | Dual |
| Graphics engine | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA cores | 4608 |
| Bus standard | PCI Express 5.0 |
| OpenGL | 4.6 |
| Tensor cores | Fifth generation |
| Ray-tracing cores | Fourth generation |
| Video memory | 16GB GDDR7 |
|---|---|
| Memory data rate | 28 Gbps |
| Memory interface | 128-bit |
| Default-mode boost clock | 2602 MHz |
| OC-mode clock | 2632 MHz |
| Clock conditions | Mode-specific rated clocks; workload, thermals, power and settings affect operation |
| HDMI | 1 × native HDMI 2.1b |
|---|---|
| DisplayPort | 3 × native DisplayPort 2.1b |
| Maximum simultaneous displays | 4 |
| Maximum digital resolution | 7680 × 4320; output limit, not a gaming-performance claim |
| HDCP | 2.3 |
| NVLink / CrossFire | Not supported |
| Cooling fans | 2 × Axial-tech |
|---|---|
| Fan bearings | Dual-ball bearings |
| Cooler design | Heatsink and heat pipes |
| Backplate | Vented protective backplate |
| Dual BIOS | Performance / Quiet modes |
| Fan-stop condition | Below 50°C and low power consumption |
| Manufacturing | ASUS Auto-Extreme |
| Dimensions | 229 × 120 × 50mm |
|---|---|
| Slot thickness | 2.5 slots |
| Power connector | 1 × 8-pin |
| Recommended system PSU | 550W |
| PSU recommendation basis | ASUS fully overclocked GPU and CPU system; tailor to complete build |
| Case clearance | Check length, height, slot thickness, airflow and power-cable space |
| Utilities listed | ASUS GPU Tweak III; MuseTree |
|---|---|
| Driver families listed | GeForce Game Ready Driver; Studio Driver |
| Support OS selections reviewed | Windows 11 64-bit; Windows 10 64-bit |
| Package contents | Graphics card; Speedsetup Manual; Thank You Card |
| Supplier-listed warranty | 36 months in original supplier content; terms and local entitlement require confirmation |
Check the complete system, display and power-cable clearances before purchase. The original supplier lists a 36-month warranty; confirm local terms and entitlement. Software features depend on supported applications and drivers.
