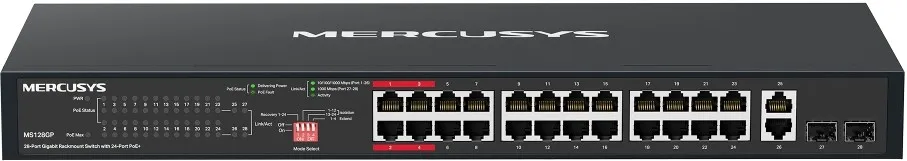

Mercusys | MS128GP
Bring 24 PoE runs into one rack switch
Give compatible cameras, access points and phones a single cable for data and power. The MS128GP has 24 Gigabit PoE+ ports, two copper uplinks and two Gigabit SFP slots. Plan the load across its 295 W shared PoE budget.

Device wiring
Keep all 24 powered ports available
Run a camera, access point or IP phone from a compatible PoE+ port and reserve the separate uplinks for the rest of the network. Add up the connected equipment’s power requirements before installation. The per-port ceiling and the shared switch budget both apply.
Network uplinks
Choose copper or fibre
Use the two Gigabit RJ45 uplinks for copper connections or the two Gigabit SFP slots with compatible modules. The switch negotiates Ethernet speeds automatically and needs no central configuration.
Long runs
Trade link speed for greater reach where needed
Extend mode can reach up to 250 m on four supported ports. Those links run at 10 Mbps in this mode, and the cable affects the usable distance. Plan long camera runs with that limit in mind.
Rack layout
Plan room for cables and airflow
The metal chassis is 44 mm high and has two fans. Keep the vents clear and leave room for patch leads. Front-panel controls provide port prioritisation, isolation and power recovery for applicable devices.
