Hikvision L2 Smart Managed Switch 24 10/100M RJ45 PoE ports 2 Gigabit combo ports 802.3af/at PoE power budget 370W Max. 300 meter long distance PoE transmission

0.0 No reviews yet Write a review
SKU: DS-3E1326P-EI
New Supplier has stock — 5 avail

Hikvision DS-3E1326P-EI with 24 10/100 Mbps PoE ports, two gigabit combo uplinks and a 370 W shared PoE budget.

R4,269.00

VAT included · Secure checkout

Supplier has stock — 5 avail

Key product details

Full specifications below
  • Ean: 6942160495774
  • Gtin: 6942160495774
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 5 avail Supplier has stock — 5 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

HIKVISION DS-3E1326P-EI

Connect and power up to 24 camera links from one switch

The DS-3E1326P-EI gives a surveillance network 24 Fast Ethernet PoE ports, a 370 W shared power budget and two gigabit combo uplinks. Use the management features to spot link and power problems from one place.

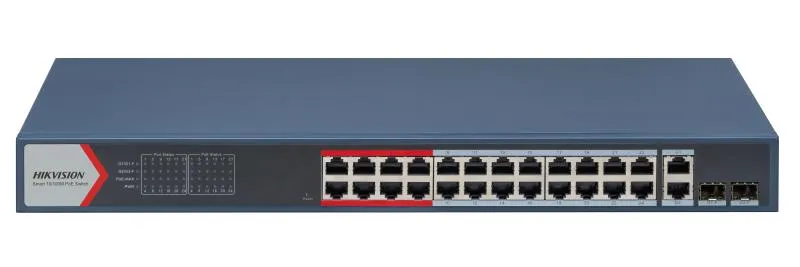

Front panel of the Hikvision DS-3E1326P-EI switch showing its Ethernet and uplink ports
24PoE ports
370 WPoE budget
2Gigabit combos
300 mExtend mode max

POWER PLANNING

Add camera loads before connecting

Each access port can supply up to 30 W to compatible IEEE 802.3af/at devices. The switch shares 370 W across all ports, so size the combined load before putting all cameras into service.

UPLINKS

Separate camera links from the backbone

Each camera port runs at 10/100 Mbps. Use the two gigabit combo uplinks for the path back to an NVR or switch. A combo interface represents one link with a choice of media.

EXTEND MODE

Treat the 300 m rating as a deployment limit

Hikvision lists up to 300 m in Extend mode with suitable AF/AT camera and cable conditions. Check the link rate and PoE load for the actual cable run rather than planning it as a gigabit connection.

Specifications

Ports and forwarding

ModelDS-3E1326P-EI
Access ports24 × 10/100 Mbps RJ45 with PoE
Uplinks2 × gigabit combo uplinks
Switching8.8 Gbit/s capacity, 6.5472 Mpps forwarding
Switching modeStore and forward
PriorityPorts 1–8 prioritised
MAC table / buffer16K entries / 4 Mbit

Power over Ethernet

StandardsIEEE 802.3af/at on ports 1–24
Maximum per PoE port30 W
Total PoE budget370 W shared
Maximum rangeUp to 300 m for compatible cameras in Extend mode
PoE surge protection6 kV per Hikvision datasheet

Management

MonitoringTopology view, network status, alarm reporting and port statistics with a supported Hikvision management environment
Uplink aggregationStatic aggregation on G1/G2
Service toolsDevice logs, remote update and default parameter restoration. Verify the physical hardware revision before any firmware change.

Physical and electrical

EnclosureMetal
Dimensions, W × H × D440 × 44 × 221 mm
Net weight2.83 kg
AC input100–240 V AC, 50/60 Hz
Maximum draw400 W including PoE load
Operating environment−10 to 55 °C, 5–95% non-condensing humidity
