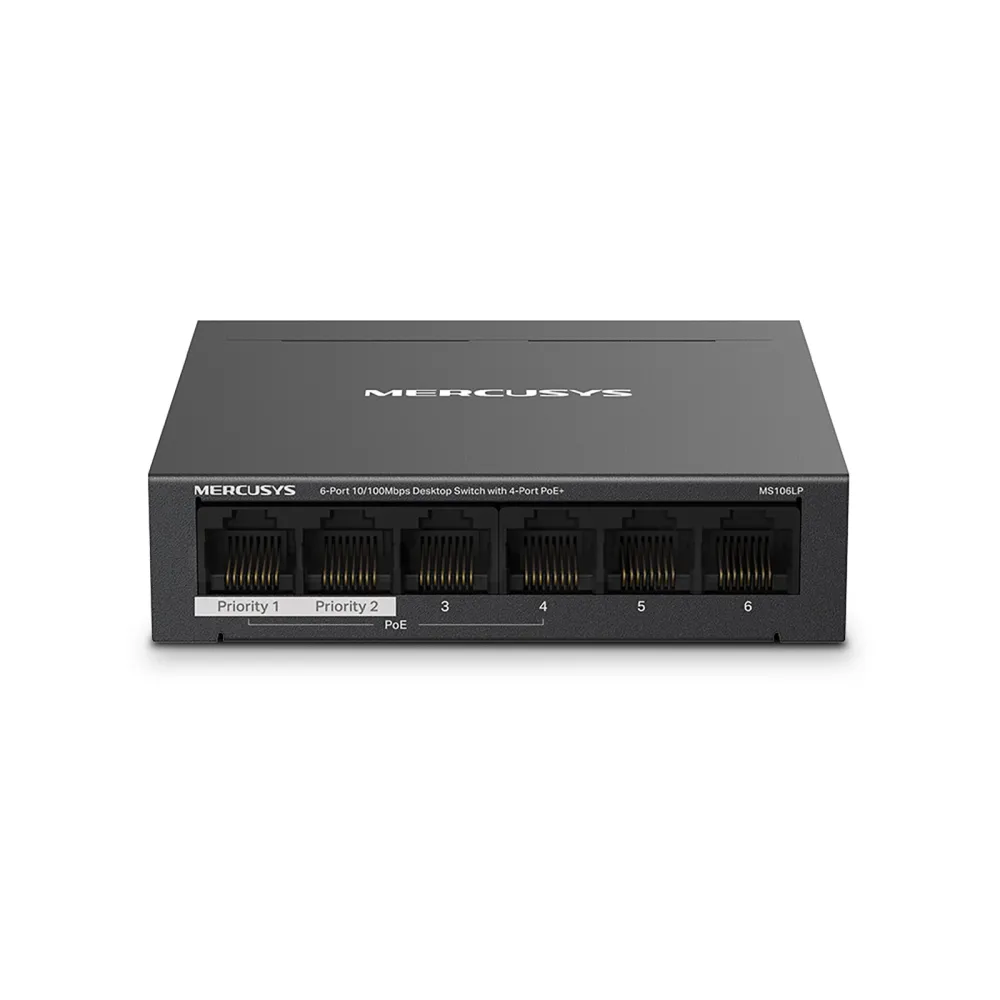

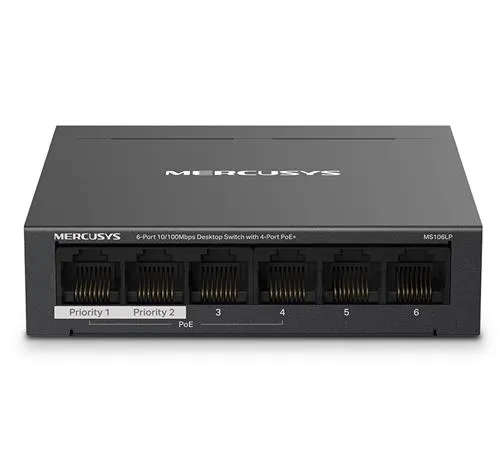

MERCUSYS MS106LP · FAST ETHERNET
Power four devices from one switch
The Mercusys MS106LP supplies data and power over the same Ethernet cable to compatible cameras, phones or access points. Its six ports include four PoE+ ports and two data-only ports for equipment such as a router or recorder.

PORT LAYOUT
Give the router and recorder their own ports
Connect compatible IEEE 802.3af/at devices to ports 1–4 and use ports 5 and 6 for data-only connections. Each PoE+ port can supply up to 30 W, within the switch’s 40 W combined budget.

CABLE RUNS
Trade link speed for extra reach
With Extend mode enabled, the affected PoE+ ports operate at 10 Mbps and can reach up to 250 m. The usable distance depends on the cable and the power draw of the connected device.
NETWORK SETUP
Separate traffic at the switch
Isolation mode prevents traffic passing directly between ports 1–4 and allows them to communicate with uplink ports 5 and 6. PoE Auto Recovery can restart an unresponsive powered device.
