LSI – RAID storage controller card – Ultra320 SCSI – PCI-X/133 MHz Series

0.0 No reviews yet Write a review
SKU: LSI20320-R
New Supplier has stock — 1 avail

LSI20320-R single-channel Ultra320 SCSI host adapter with 64-bit 133 MHz PCI-X, 68-pin internal and external connectors, and integrated RAID 0 and 1.

R2,479.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: LSI20320-R
  • Brand: LSI
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

LSI20320-R | Single-channel Ultra320 SCSI adapter

Keep a compatible PCI-X SCSI system connected

The LSI20320-R is a legacy 64-bit PCI-X host adapter with a single Ultra320 SCSI channel and integrated RAID 0 and RAID 1. Check the host slot, cables and termination before servicing an existing storage system.

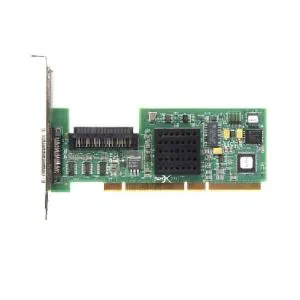

LSI Ultra320 SCSI adapter board showing its bracket and internal connector
Ultra320SCSI interface
PCI-XHost connection
RAID 0/1Integrated modes

Host connection

Check PCI-X or a compatible PCI slot

The card uses a universal 3.3 V and 5 V PCI/PCI-X edge connector. Check physical fit and platform support. A PCI Express slot uses a different connection.

SCSI connection

Plan one shared channel

The internal 68-pin and external 68-pin connectors share Channel A. Assign unique SCSI IDs, reserve ID 7 for the adapter and follow LSI’s termination layout for your cable configuration.

Array setup

Choose mirroring or striping in the legacy utility

The card supports RAID 1 mirroring and RAID 0 striping. Consult the setup guide and check the required operating-system driver for the actual host.

Specifications

Controller

ModelLSI20320-R
SCSI processorLSI53C1020
Channels1, shared by the two connectors
SCSI standardsWide Ultra320 LVD and Wide Ultra SE

Host and connectors

Host connection64-bit PCI-X up to 133 MHz, backwards compatible with supported PCI
PCI signalling3.3 V or 5 V
Internal connector68-pin high-density SCSI
External connector68-pin VHDCI SCSI
Ultra320 bus ratingUp to 320 MB/s with compatible equipment
Device limitUp to 15 SCSI devices on the shared channel

Integrated RAID and software

RAID modesRAID 0 striping and RAID 1 mirroring
ConfigurationLSI Logic BIOS Configuration Utility
Driver requirementLegacy host driver depends on the installed operating system. Confirm the precise version and platform.

This is legacy parallel SCSI hardware. Check the host driver and cable and termination requirements before selecting it.
