Dell Perc H355 Front, 12Gb, 16-Ports, PCIe Gen 4, SAS-SATA Raid Controller Card

0.0 No reviews yet Write a review
SKU: 0TKK9K
New In Stock with Supplier 2 — 1 avail

Front-mounted Dell PERC H355 storage controller for compatible PowerEdge servers. It provides 16 internal SAS/SATA ports, PCIe Gen 4, hardware RAID 0, 1 and 10, and non-RAID mode.

R10,469.00

VAT included · Secure checkout

In Stock with Supplier 2 — 1 avail

Key product details

Full specifications below
  • Mpn: 0TKK9K
  • Brand: Dell
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability In Stock with Supplier 2 — 1 avail In Stock with Supplier 2 — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Dell PowerEdge storage

PERC H355 Front

The Dell PERC H355 Front connects internal SAS and SATA drives to a compatible PowerEdge server. It uses a PCIe Gen 4 host interface and provides hardware RAID 0, 1 and 10, with a non-RAID mode for individual drives.

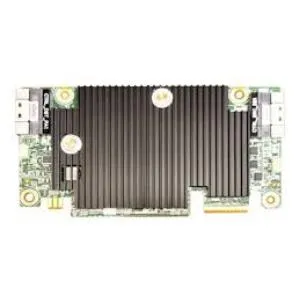

Dell PERC H355 Front controller board with its black heatsink
12 Gb/sMaximum SAS link rate
16Internal SAS/SATA ports in two groups of eight
0, 1, 10Supported hardware RAID levels

Drive connections

Two internal eight-port connections

The controller links to compatible internal SAS or SATA storage. SAS links run at up to 12 Gb/s and SATA links at up to 6 Gb/s, depending on the drives and the rest of the storage path.

Array options

Striping, mirroring and non-RAID mode

Use RAID 0 for striping, RAID 1 for a mirror or RAID 10 to combine both. The H355 Front also supports non-RAID drives. It uses write-through operation and has no onboard cache or battery backup.

System fit

Check the front controller position

Match the card to the server’s supported front controller position, backplane and cabling before ordering. Use the system service tag to confirm the controller and select any required software for that server.

Dell’s exact H355 Front row and the PowerEdge R450 guide support the product specifications. Seller-listed DP/N 0TKK9K is corroborated by independent trade catalogues. Manufacturer cross-reference for the specific stock part and public South African driver access remain open.

Specifications

Controller

ManufacturerDell
SeriesPERC 11
ModelPERC H355 Front SAS
Catalogue SKU0TKK9K
Form factorFront controller for supported PowerEdge configurations
Controller chipsetBroadcom SAS3816

Host and storage connections

Host interfacePCIe Gen 4
Internal drive ports16 across two eight-port connections
Supported drive interfacesSAS at 6 or 12 Gb/s, SATA at 3 or 6 Gb/s
Supported drive countUp to 16 without a SAS expander. Expander configurations depend on the host platform.

RAID and cache

Hardware RAID levels0, 1 and 10
Non-RAID modeSupported
Controller cacheNone
Write policyWrite-through
Battery backup unitNone
Virtual disk stripe size64 KB

Dell’s exact H355 Front row and the PowerEdge R450 guide support the product specifications. Seller-listed DP/N 0TKK9K is corroborated by independent trade catalogues. Manufacturer cross-reference for the specific stock part and public South African driver access remain open.
