HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter

0.0 No reviews yet Write a review
SKU: 614988-B21
New Supplier has stock — 1 avail

HP SC08e 614988-B21 external SAS host bus adapter with PCIe 2.0 x8 and two SFF-8088 Mini-SAS ports for qualified ProLiant storage configurations.

R5,139.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: 614988-B21
  • Brand: Hp
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

HP SC08e | 614988-B21 external SAS adapter

Connect a ProLiant server to its external SAS array

The HP SC08e gives a compatible ProLiant server two external Mini-SAS ports for an approved storage array. Each port carries four SAS links, with up to 6 Gb/s per SAS link. The adapter uses a PCIe 2.0 x8 host interface.

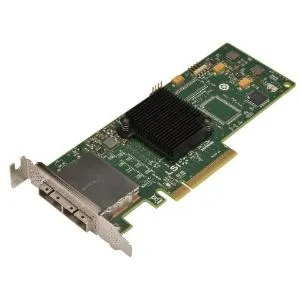

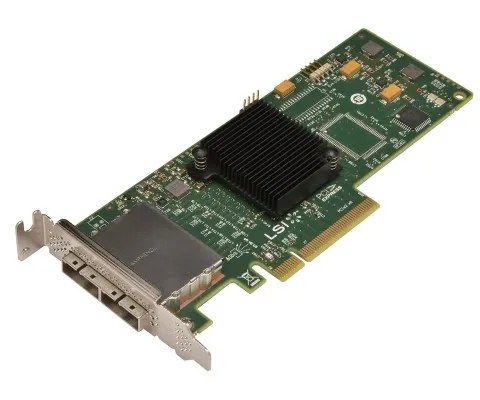

HP SC08e host bus adapter board with two external Mini-SAS ports
2 portsExternal Mini-SAS
6 Gb/sPer SAS link
PCIe 2.0 x8Host interface

External cabling

Match the Mini-SAS connector

Both external ports use SFF-8088 Mini-SAS. Check the array-side connector and cabling plan before choosing a cable. Each external port carries four physical SAS links.

Storage compatibility

Start with the server and array configuration

HP documents the SC08e for selected ProLiant generations and the P2000 G3 SAS Modular Smart Array. Check the server model, slot and storage controller together before ordering.

Legacy systems

Check drivers against the operating system release

HP’s archived QuickSpecs cover older Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESX releases. Plan the installation against the exact server and software version you maintain.

Check the installed bracket and cable requirements for your server and enclosure.

Specifications

Identification

ManufacturerHP
ModelSC08e
Order part number614988-B21
TypeExternal SAS host bus adapter

Host and storage interfaces

Host busPCI Express 2.0 x8
External connectors2 × SFF-8088 Mini-SAS
Physical SAS links8 total, four per connector
SAS link rateUp to 6 Gb/s per physical link
SATA drive protocol3 Gb/s in supported storage configurations

Fit and compatibility

Board dimensions excluding bracket168 × 68.6 × 16 mm
Slot fit in HP documentationHigh-profile and low-profile PCIe configurations. Check the installed bracket.
Storage exampleHP P2000 G3 SAS Modular Smart Array in qualified configurations
Examples of documented ProLiant serversDL360 G6/G7, DL380 G6/G7 and DL980 G7. Confirm chassis and array configuration.
Historical OS coverageWindows Server 2003, 2008 and 2008 R2, Red Hat Enterprise Linux 5, SUSE Linux Enterprise Server 10 and VMware ESX 4.0. Check specific editions and architecture in HP’s archived documentation.

Check the installed bracket and cable requirements for your server and enclosure.
