AP263 Wall-plate AP Wi-Fi 6 indoor Dual Radio(2.4G/5GHz) 2*2/2*2 MU-MIMO 1*GE Base-T 1*GE Base-T BLE USB internal smart antennas

0.0 No reviews yet Write a review
SKU: 50084981
New Supplier has stock — 10 avail

Huawei eKit AP263 50084981 indoor wall-plate Wi-Fi 6 AP with dual-band 2×2 MU-MIMO, two Gigabit Ethernet ports, BLE, USB and built-in smart antennas.

R2,099.00

VAT included · Secure checkout

Supplier has stock — 10 avail

Key product details

Full specifications below
  • Upc: 50084981
  • Gtin: 50084981
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 10 avail Supplier has stock — 10 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Huawei eKit AP263 · Wall-plate Wi-Fi 6

Wi-Fi 6, made for the wall.

The Huawei eKit AP263 brings dual-radio Wi-Fi 6, two Gigabit Ethernet ports, Bluetooth Low Energy and USB into a slim indoor wall-plate access point. Built-in smart antennas and 2×2 MIMO on each band support a considered installation for rooms where wireless access and a wired connection belong together.

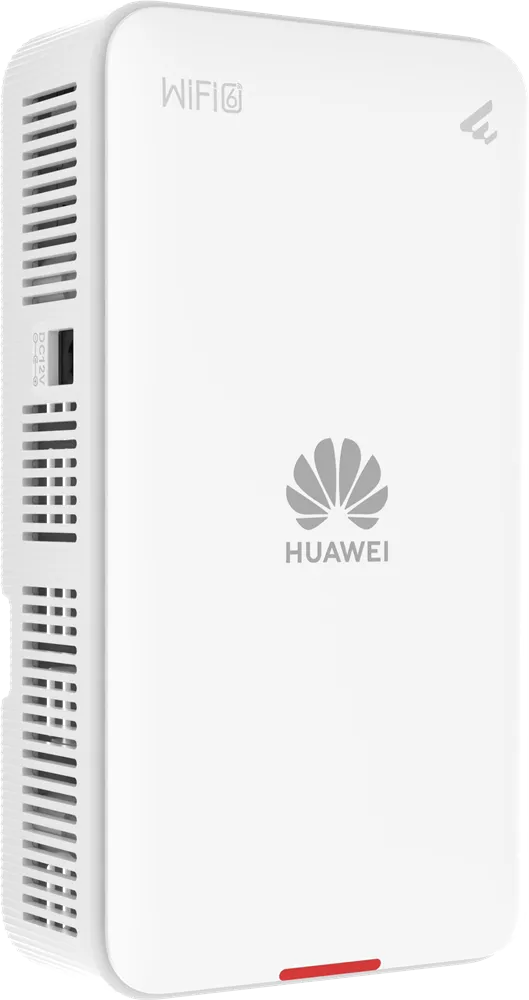

White Huawei Wi-Fi 6 wall-plate access point with side USB and DC power connections
2.4 + 5 GHzDual-radio Wi-Fi 6
2×2 per bandMIMO spatial streams
2 portsGigabit Ethernet
160 × 86 × 38 mmHeight × width × depth

Wireless architecture

Two bands, with two streams on each

AP263 operates on 2.4 GHz and 5 GHz, with a 2×2 MIMO arrangement on each radio and built-in smart antennas. MU-MIMO is part of its wireless feature set. The client device, radio environment and chosen channel settings determine which supported connection features can be used.

Radio and wired capacity

Plan the whole network path

Huawei lists a combined device rate of 2.975 Gbps across the radios. This is a wireless physical-link reference, rather than measured internet or application throughput for one client. The two RJ45 ports support 10, 100 and 1000 Mbit/s auto-sensing Ethernet; the wired network also shapes usable performance.

Room fit

A narrow body with several mounting options

The enclosure measures 160 mm high, 86 mm wide and 38 mm deep, with a listed device weight of 320 g. Huawei lists desk, wall, gypsum-board ceiling and junction-box installation, including 86 mm, 1-gang 120 mm and octagonal boxes. Match the mounting hardware and cable access to the chosen surface and box.

Power planning

Choose a suitable PoE or DC source

AP263 accepts IEEE 802.3at/af Power over Ethernet or 12 V DC with a ±10% voltage tolerance. Match the supply and power budget to the installation, including any USB accessory requirements. Check the included power equipment and mounting hardware before installation.

Local connections

Ethernet, BLE and USB in one enclosure

Two Gigabit RJ45 interfaces sit alongside Bluetooth Low Energy and USB support. Confirm the required USB function, supported accessory and software configuration before deployment; these connections do not establish universal accessory or controller compatibility.

Deployment and client planning

Set the limits around the room and its users

Huawei recommends 64 access users and lists a maximum of 256. Treat these as planning references, with application load and client capabilities considered alongside radio conditions. Use the permitted country settings, channels and transmit power for the supplied unit, and confirm its software revision, management mode and service requirements before installation.

Specifications

Identity and radio design

Manufacturer / rangeHuawei / eKit
ModelAP263
Manufacturer part number50084981
Device roleIndoor wall-plate wireless access point
Wi-Fi generationWi-Fi 6 / IEEE 802.11ax
Operating bands2.4 GHz and 5 GHz
Radio count2
MIMO / spatial streams2×2 on each radio
Multi-user featureMU-MIMO
2.4 GHz standardsIEEE 802.11b/g/n/ax
5 GHz standardsIEEE 802.11a/n/ac/ac Wave 2/ax
AntennasBuilt-in smart antennas
BluetoothBluetooth Low Energy (BLE)
USBSupported; confirm accessory and software applicability

Rate, channels and users

Combined device-rate reference2.975 Gbps across radios; physical-link reference, not measured application throughput
2.4 GHz maximum channel width40 MHz, where permitted and supported
5 GHz maximum channel width160 MHz, where permitted and supported
Recommended access users64, manufacturer planning reference
Maximum access users256, not an equal-throughput guarantee
2.4 / 5 GHz maximum transmit-power reference20 dBm per chain / 23 dBm combined per radio; country restrictions apply
BLE transmit-power referenceLess than 10 dBm; regional restrictions apply
Antenna-gain reference2.4 GHz: 2 dBi per chain peak / 1 dBi combined; 5 GHz: 3 dBi per chain peak / 1 dBi combined; BLE: 4 dBi

Wired connection and power

Ethernet ports2× GE RJ45
Ethernet negotiation10/100/1000 Mbit/s auto-sensing
PoE inputIEEE 802.3at/af
DC input12 V ±10%
Power equipmentConfirm adapter or injector inclusion and USB accessory budget for the supplied configuration

Physical fit and environment

Device dimensions160 × 86 × 38 mm (H × W × D)
Device weight0.320 kg, excluding packaging
Packaged dimensions75 × 205 × 115 mm (H × W × D), manufacturer reference
Packaged weight0.542 kg, manufacturer reference
Installation typesDesk; wall; gypsum-board ceiling; 86 mm / 1-gang 120 mm / octagonal junction box
Operating temperature0°C to 40°C, global exact-part product-page reference; altitude derating applies
Altitude deratingFrom 1800 m to 5000 m, maximum temperature decreases by 1°C for every additional 300 m
Operating relative humidity5%–95% RH, non-condensing

Deployment requirements

Region and channelsMatch the supplied regulatory variant and permitted country configuration
Management / softwareConfirm exact revision, management mode, controller/service requirements and accessory support
Package and warrantyLocal mounting accessories, power equipment and warranty entitlement require confirmation; no new duration stated
