UBIQUITI Wave AP; Max. throughput: 5.4 Gbps (2.7 Gbps duplex); 30° sector c

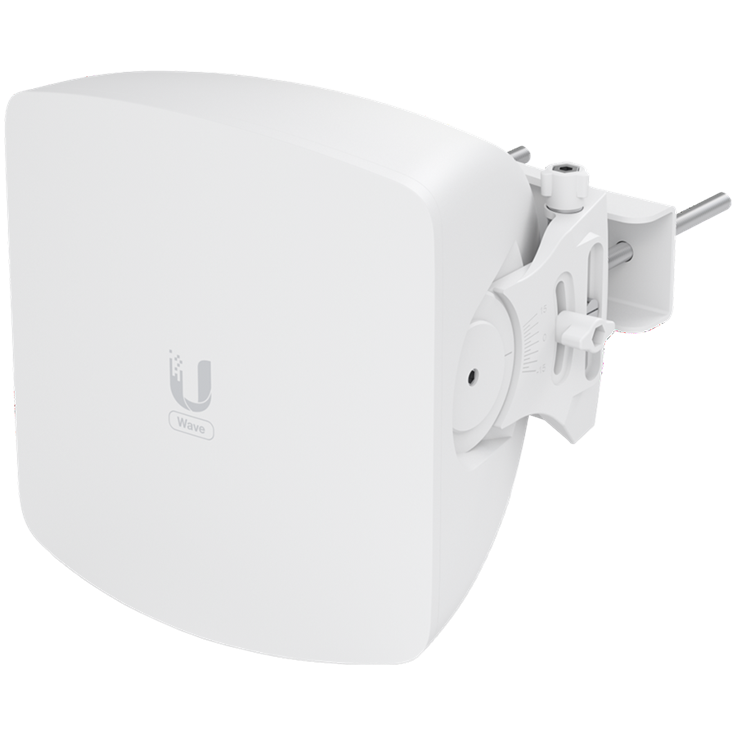

UBIQUITI Wave AP; Max. throughput: 5.4 Gbps (2.7 Gbps duplex); 30° sector coverage; 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps); 2.5 GbE and (1) 10G SFP+ WAN ports; Integrated GPS & Bluetooth; 15 client capacity: Wave Pro (8 km link range), Wave Long-Range (8 km link range), Wave Nano (5 km link range), Wave Pico (1.3 km link range).
Related products
Description
60 GHz PtMP access point powered by Wave Technology.
Attributes
| Name | Value | |
|---|---|---|
| CPU | ARM Cortex-A53 | |
| Internal Clock Rate | 1.4 GHz | |
| RAM | 512 MB DDR3 SDRAM | |
| Number of Ports | 2 | |
| Data Link Protocol Supports | 10 Gbps 2.5 Gbps |
|
| Device Location | External | |
| Frequency | 5.4 GB/sec | |
| Line Modulation Type | 16QAM 64QAM BPSK QPSK 256QAM 1024QAM |
|
| Status Indicator | Activity Status | |
| Encryption Algorithm | WPA2-PSK AES |
|
| Networking Features | PoE | |
| Certifications | FCC, IC, CE | |
| LAN | 1 (RJ-45) | |
| SFP+ | 1 | |
| Power Consumption Operational | 24 W | |
| External Color | White | |
| Included Accessories | Quick Start Guide | |
| Protection Standarts | IPX6 | |
| Built-in Devices | Reset Button | |
| Depth (mm) | 205 mm | |
| Height (mm) | 212 mm | |
| Width (mm) | 187 mm | |
| Nominal Weight | 2.3 kg | |
| Maximum Operating Ambient Temperature | 60 °C | |
| Maximum Operating Humidity | 95 % | |
| Minimum Operating Ambient Temperature | -40 °C | |
| Minimum Operating Humidity | 5 % | |
| Warranty Products Returnable | Yes | |
| Warranty Term (month) | 12 month(s) | |
| Warranty Term Notes | 24 months – for EU | |
| Warranty Validation Criteria | Serial Number | |
| Pack Weight Brutto (kg) | 0.5 kg | |
| Pack Weight Netto (kg) | 0 kg | |
| Pieces in pack | 1 | |
| Retail Packaging Net Weight Carton | 0 kg | |
| Retail Packaging Net Weight Plastic | 0 kg | |
| Packs in Box | 1 | |
| Package Type | Retail |
