Ubiquiti UniFi Redundant Power System

0.0 No reviews yet Write a review
SKU: USP-RPS-EU
New Supplier has stock — 5 avail

Ubiquiti UniFi USP-RPS-EU 1U redundant power system with six USP Connect DC outputs and a 950 W combined power budget.

R11,619.00

VAT included · Secure checkout

Supplier has stock — 5 avail

Key product details

Full specifications below
  • Upc: 817882029186
  • Gtin: 817882029186
  • Brand: Ubiquiti
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 5 avail Supplier has stock — 5 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

UBIQUITI UNIFI REDUNDANT POWER · 1U RACK UNIT

Keep a second power path ready for compatible UniFi equipment

The UniFi Redundant Power system gives compatible rack equipment a separate DC supply through Ubiquiti’s USP Connect interface. The 1U unit provides six outputs, with the shared power budget split across two DC rails.

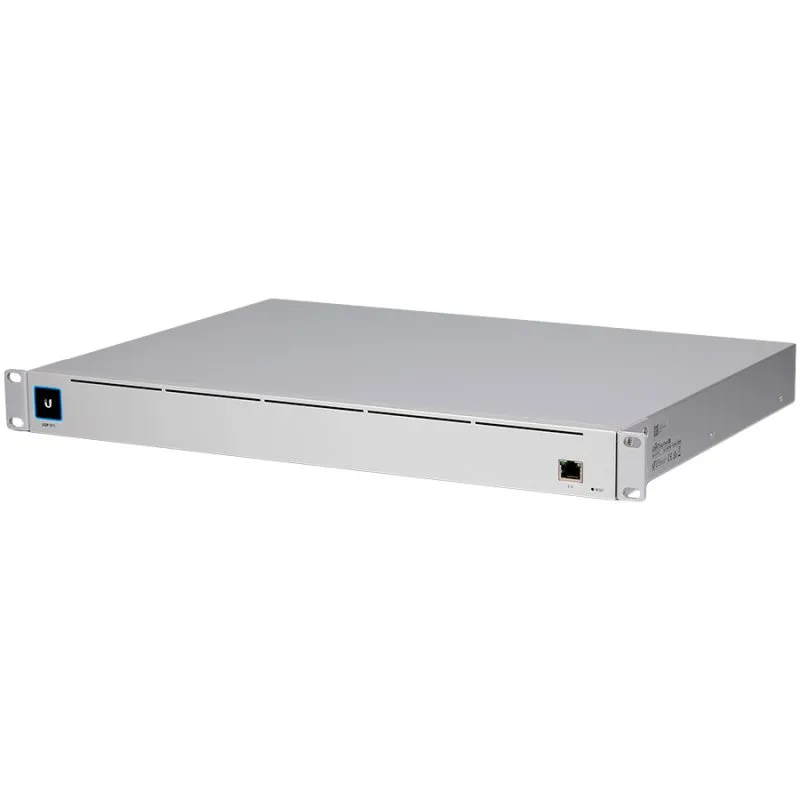

Front of the grey Ubiquiti UniFi Redundant Power rack unit
6 outputsProprietary USP Connect DC ports
950 WCombined rated DC output
1UStandard 19-inch rack fit

POWER PATH

Plan for device power-supply redundancy

Connect compatible devices through their dedicated USP Connect inputs. Feed the RPS from an AC source and, where mains outage coverage is needed, plan a separate upstream UPS. The RPS has no battery.

Ubiquiti UniFi Redundant Power System — Plan for device power-supply redundancy

CAPACITY

Size the rail budget for the connected devices

The shared DC capacity is 600 W on the 52 V rail and 350 W on the 11.5 V rail. Allocate each connected device’s demand before filling the six outputs.

MANAGEMENT

Monitor the rack from UniFi

Use the gigabit Ethernet management port to adopt the unit in UniFi Network. The 1.3-inch touchscreen and individual port LEDs provide local status.

INSTALLATION

Reserve 1U and the right number of cables

The 19-inch rack installation hardware and one USP cable are supplied per the manufacturer guide. Obtain additional compatible USP cables for additional devices.

Specifications

Exact unit

Order codeUSP-RPS-EU
Colour and chassisGrey SGCC steel enclosure
Mounting1U, standard 19-inch rack
UPC (GTIN-12)817882029186

Power

AC input100–240 V AC
Maximum input consumption995 W
Output6 × proprietary USP Connect DC outputs
Shared output capacity52 V DC at 11.54 A (600 W); 11.5 V DC at 30.44 A (350 W)
ApplicationRedundant DC supply to equipment with supported USP Connect input

Physical and control

Dimensions442.4 × 325.6 × 43.7 mm
Weight5.5 kg without brackets; 5.6 kg with brackets
Management1 × GbE RJ45 and UniFi Network adoption
Indicators1.3-inch touchscreen and port activity LEDs
Operating conditions−5 to 45 °C, 10–90% RH non-condensing
Guide packageRPS, one USP cable, rack brackets and hardware, mains lead and rubber feet
Local offer warranty12 months, validated by serial number

Check the connected device’s USP Connect compatibility and shared rail load. For outage protection, size an upstream UPS separately.
