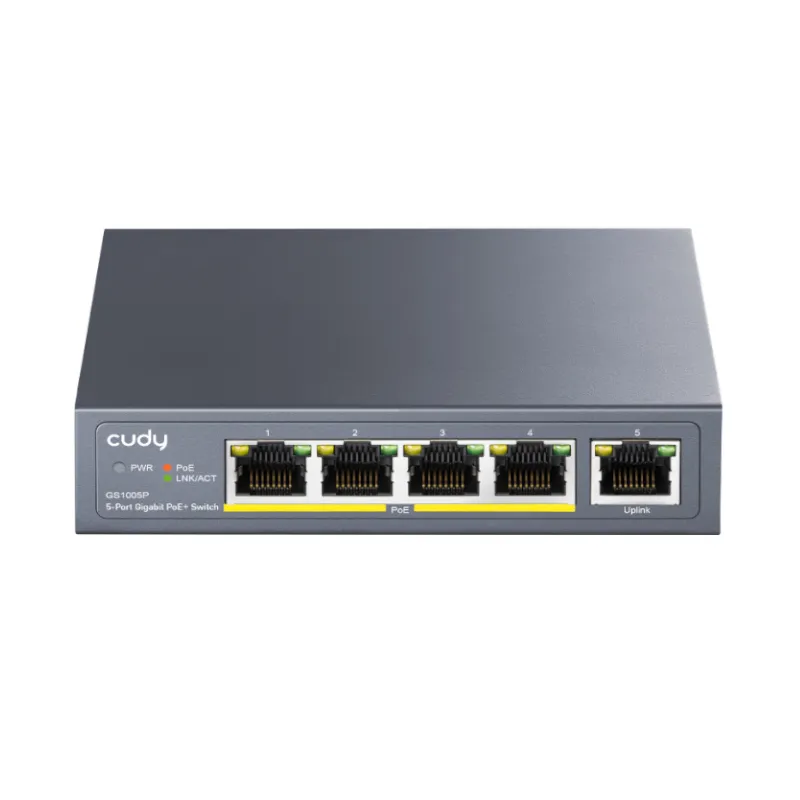

Cudy GS1005P | Gigabit PoE+ switch
Power four wired devices from one compact switch
The Cudy GS1005P combines four Gigabit PoE+ ports and one Gigabit uplink. Use it to add compatible IP cameras, VoIP phones or Wi-Fi access points without running separate power leads to each device.

Network layout
Use the separate uplink for the network
Connect the uplink to a router or another switch and put powered equipment on ports 1 through 4. Each RJ45 port negotiates 10, 100 or 1,000 Mbps. Use Cat 5e or better for Gigabit links up to 100 m.
Power budget
Add up the demand of the powered devices
The four 802.3af/at ports share the listed 60 W available for PoE. A single port can provide up to 30 W. Check each endpoint’s rated demand and leave the total within the switch budget.
Installation
Read the port LEDs at a glance
Per-port indicators show link and traffic, and the four powered ports have separate PoE status indicators. The 119 × 85 × 28 mm grey metal case is fanless and can sit on a desk or be wall-mounted.
