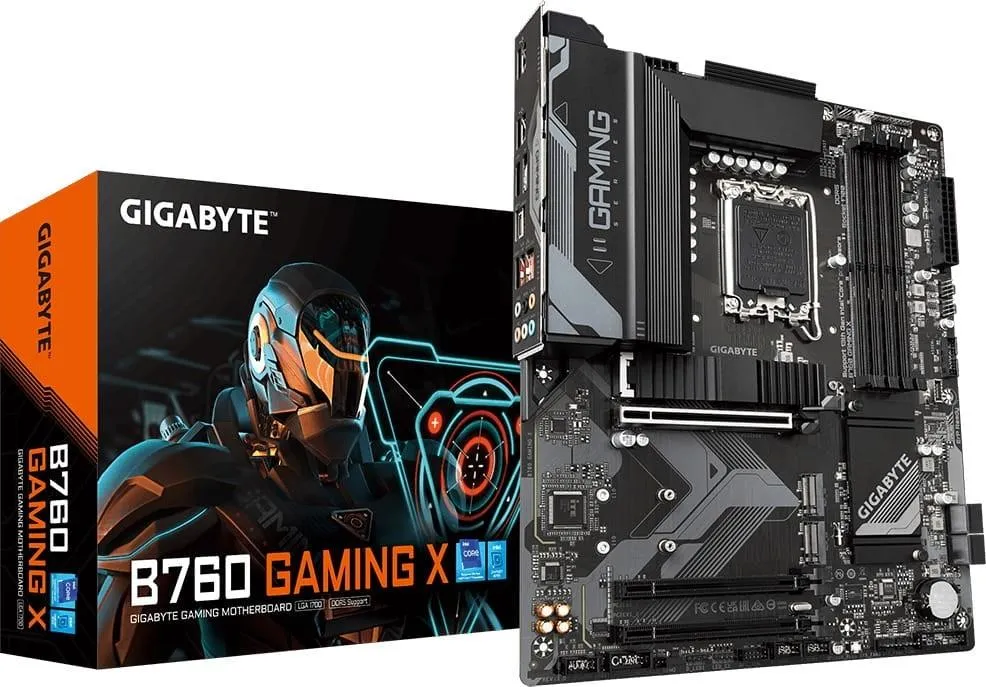

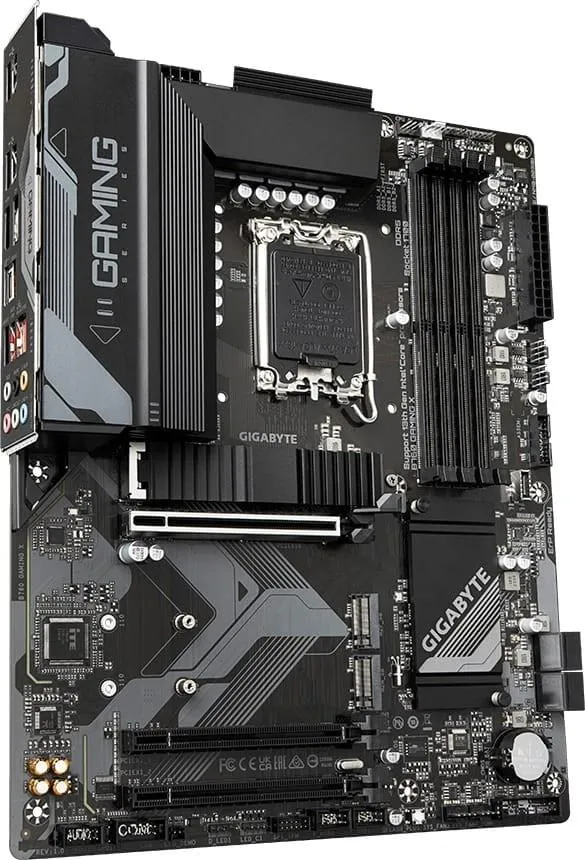

GIGABYTE B760 GAMING X | DDR5 ATX
An ATX foundation with room for three NVMe drives
Build around a compatible Intel LGA1700 processor, four DDR5 slots and a full-speed PCIe 4.0 x16 graphics slot. The B760 GAMING X adds two chipset-connected NVMe sockets alongside its CPU-connected socket, with 2.5Gb Ethernet and both front and rear USB-C connectivity.

Processor and BIOS
Check the CPU list before choosing the processor
GIGABYTE includes 12th, 13th and 14th Gen Intel Core on its rev. 1.0 support list. The CPU and installed BIOS determine compatibility. Q-Flash Plus provides a way to update BIOS without installing a CPU, memory or graphics card. Read the PCB’s REV marking before using a BIOS file.

Memory
Choose a matched DDR5 kit and the right slots
Use A2 and B2 for two modules. The existing listing specifies 128 GB. GIGABYTE documents higher capacities for rev. 1.0 with suitable BIOS, processor and DIMMs. Check those details and the PCB revision before choosing a kit above 128 GB or an overclocked XMP speed.
Storage and lanes
Give the graphics card the full x16 slot
The main PCIe 4.0 slot runs at x16 and has an EZ-Latch release. The two lower sockets look like x16 slots but each runs at PCIe 3.0 x1. The CPU feeds one M-key NVMe socket and the B760 chipset feeds the other two. Each accepts supported 2280 or 22110 PCIe SSDs.
Connections
Use the front USB-C header with a matching case
The internal USB-C header provides up to 10 Gb/s to a compatible case port. The rear USB-C runs at 5 Gb/s, with a separate rear USB-A port rated for 10 Gb/s. HDMI and DisplayPort need compatible processor graphics. Wired network access runs through a 2.5Gb Ethernet jack.
Cooling and build
Plan fan and pump connections before closing the case
The 8+1+1-phase digital power design sits behind the board’s cooling hardware. Smart Fan 6 works with on-board sensors and supported fans. There are separate CPU and system fan connections and designated fan/pump headers for a compatible cooler.
