Dell Networking | 0P8T4W
Split one supported 40GbE port into four 10GbE links

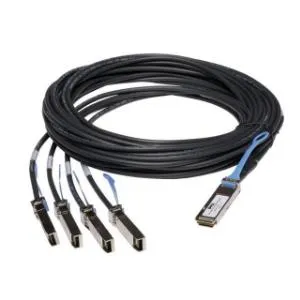

This five-metre passive copper DAC connects a breakout-capable QSFP+ port to up to four SFP+ endpoints. It keeps all four branches in one cable assembly for short links between compatible network equipment.

Topology
Fan out a switch link across four ports
The QSFP+ connector carries four 10GbE lanes. Each branch has its own SFP+ connector, giving a supported host four separate Ethernet links.
Cable construction
Route one passive copper assembly
The Dell 41000-series tested cable table identifies the five-metre P8T4W as 26 AWG copper. The DAC plugs attach directly at both ends without a separate optical transceiver.
System fit
Check the port mode before connecting
Both ends must support the cable type, and the QSFP+ port must support 4 × 10GbE breakout. Check the switch or adapter documentation for the specific port and configuration.
