Cudy M3000 white one-pack AX3000 Wi-Fi 6 mesh unit with 2.5 GbE WAN, Gigabit LAN and 160 MHz support. Confirm supplied hardware revision before firmware selection.
R999.00
In Stock with us — 8 avail
Clear fulfilment, warranty and payment details.

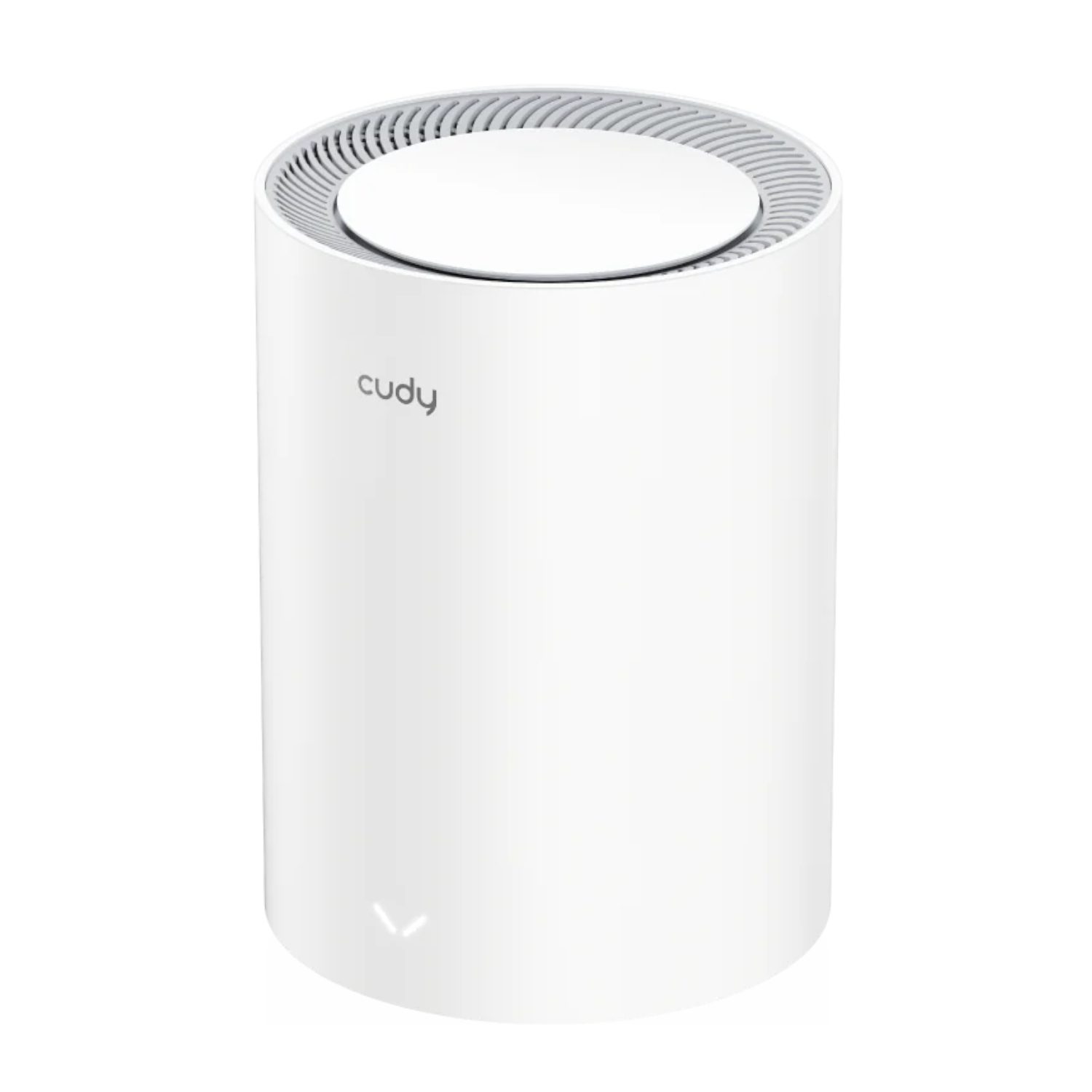

Cudy M3000 · White · One mesh unit
A single white M3000 brings dual-band Wi-Fi 6, a 2.5 Gigabit WAN connection and Cudy Mesh expansion into a compact desktop design. Use this one-pack to begin a network or plan an additional compatible mesh point. The supplied hardware revision must be confirmed; the detailed manufacturer reference below is M3000 2.0.
Wireless capacity
The manufacturer reference combines up to 2,402 Mbps on 5 GHz with 574 Mbps on 2.4 GHz, using two spatial streams on each band. Wi-Fi 6 features include OFDMA, MU-MIMO and BSS colour. A compatible client is required for 160 MHz operation and the highest link rates; these figures are wireless link rates, not promised download speeds.
Wired connections
The 2.5 Gigabit RJ45 socket is the WAN connection and the second socket is a Gigabit LAN connection. Plan a wired computer or switch around that 1 Gbps LAN limit. An internet service, modem or upstream connection is separate, and actual throughput depends on the full network.
Mesh planning
Cudy Mesh supports wireless and wired backhaul, with multi-band wireless backhaul and fast roaming. Additional compatible units are sold separately. This listing contains one mesh unit: multi-pack coverage figures do not describe this one-pack. Building materials, interference, placement and client capabilities determine the coverage and roaming experience.
Household management
The M3000 2.0 reference offers a separate guest network, WPA/WPA2/WPA3 security, parental profiles, online/offline schedules, internet pause and web filtering. Manage supported functions locally through the browser or Cudy App, or use supported remote management. Features and remote access depend on the installed firmware and account or network setup.
Remote connections
The reference firmware supports VPN server and client functions with WireGuard, OpenVPN, IPsec, ZeroTier, PPTP and L2TP. Confirm protocol and provider requirements before deployment; a VPN provider subscription is not included. Protocol availability does not establish a guaranteed VPN throughput or equal security across protocols.
Inside the cylinder
The reference uses a 1.3 GHz dual-core ARM Cortex-A53 processor, 256 MB DDR3 RAM and 128 MB NAND flash, with five internal Wi-Fi antennas. Position it upright on a desktop with ventilation. The native listing supplies one white unit, power adapter, Ethernet cable and installation guide; confirm the regional plug and hardware label before setup.
Useful controls
The reference interface shows internet, mesh, client and connection status and provides diagnostic tools including ping, traceroute, DNS lookup and system logs. Back up the configuration before changes. Firmware must match the exact hardware revision; do not choose a file by the retail SKU alone.
| Manufacturer | Cudy |
|---|---|
| Family / local SKU | M3000 / M3000W 1PACK |
| Pack quantity | 1 mesh unit |
| Colour | White |
| Reference hardware | M3000 2.0; supplied revision unconfirmed |
| Native warranty statement | 12 months; confirm current local terms |
| Wi-Fi generation | Wi-Fi 6 (dual-band) |
|---|---|
| 5 GHz maximum link rate | 2402 Mbps |
| 2.4 GHz maximum link rate | 574 Mbps |
| Spatial streams | 2 per band; 4 across both bands |
| Antennas | 5 internal |
| Radio front ends | 5 GHz: 3 internal; 2.4 GHz: 2 internal |
| Beamforming | Supported |
| Channel widths | Auto / 20 / 40 / 80 / 160 MHz |
| Maximum modulation | 1024-QAM |
| Efficiency features | OFDMA; MU-MIMO; BSS colour |
| Wireless security | WPA / WPA2 / WPA3 |
| Guest network | 2.4 GHz and 5 GHz |
| Recommended client upper limit | 200, workload and device dependent |
| Maximum stated capacity | 512; not a simultaneous-throughput guarantee |
| Range reference | Up to 220 m in open-space conditions with minimal interference; not an indoor coverage guarantee |
| Wall-placement guidance | Manufacturer examples: two wooden walls under 10 cm each, or one concrete wall under 20 cm, or two concrete walls under 10 cm each; actual results vary |
| Single-pack coverage | No guaranteed floor-area coverage stated for this listing |
| WAN | 1 × 2.5 Gbps RJ45 |
|---|---|
| LAN | 1 × 10/100/1000 Mbps RJ45 |
| Mesh platform | Cudy Mesh |
| Backhaul | Wired or wireless; multi-band wireless support |
| Roaming | Fast roaming; client support and placement dependent |
| Operating modes | Router / access point / range extender / WISP / client |
| Internet connection modes | DHCP / static IP / PPPoE / PPTP / L2TP |
| IP support | IPv4 and IPv6 |
| IPTV / VLAN | Bridge / tagged VLAN / VoIP VLAN / IPTV VLAN |
| Forwarding | Port forwarding / port triggering / UPnP / DMZ |
| DHCP | Server, client list and address reservation |
| Rate controls | Per-user and guest-network rate limiting |
| Firewall | SPI / DoS protection / ping blocking |
| Parental controls | Profiles, online/offline times, internet pause and web filtering |
|---|---|
| VPN roles | Server and client |
| VPN protocols | WireGuard / OpenVPN / IPsec / ZeroTier / PPTP / L2TP; firmware dependent |
| Provider scope | Confirm the provider’s supported protocol and account requirements; subscription is separate |
| DNS controls | DNS over TLS, manual DNS, rebind protection and client DNS override |
| Local management | Browser and Cudy App |
| Remote management | Supported HTTPS and Cudy App functions; configuration dependent |
| Diagnostics | Ping / traceroute / NSLookup / system log |
| Maintenance | Configuration backup/restore, timed reboot and compatible firmware updates |
| Processor | 1.3 GHz dual-core ARM Cortex-A53 |
|---|---|
| RAM | 256 MB DDR3 |
| Flash | 128 MB NAND |
| Buttons | WPS and reset |
| Indicators | System and Ethernet speed/link/activity |
| Power connection | DC jack |
| Input | 12 V DC, 1 A |
| Maximum stated consumption | 11.5 W |
| Idle stated consumption | 4.2 W |
| Adapter input | 100–240 V AC, 50/60 Hz |
| Adapter output | 12 V DC, 1 A |
| Mounting | Desktop |
|---|---|
| Dimensions | 110 mm diameter × 154.5 mm high |
| Unit weight | 360 g |
| Operating temperature | 0–40°C |
| Storage temperature | −40–70°C |
| Operating humidity | 10–90%, non-condensing |
| Storage humidity | 5–95%, non-condensing |
| Manufacturer compliance listings | FCC / CE; supplied regional label controls |
| Mesh unit | 1 × white Cudy M3000 |
|---|---|
| Power supply | 1 × adapter; confirm regional plug |
| Network cable | 1 × Ethernet cable |
| Documentation | 1 × installation guide |
One unit is supplied. Detailed technical and software references describe M3000 2.0; the stock hardware revision is not established by the retail SKU or existing photos. Confirm the label before relying on revision-specific features or firmware. Wi-Fi rates, range and device-count references are conditional, not guaranteed performance. The original listing states a 12-month warranty; confirm current local terms when ordering.
Use official support resources for this product. Each link opens in a new tab.
Official firmware, release notes and documentation for M3000 2.0 only. The supplied revision is not yet confirmed; choose another hardware version in Cudy’s selector if the label differs.
