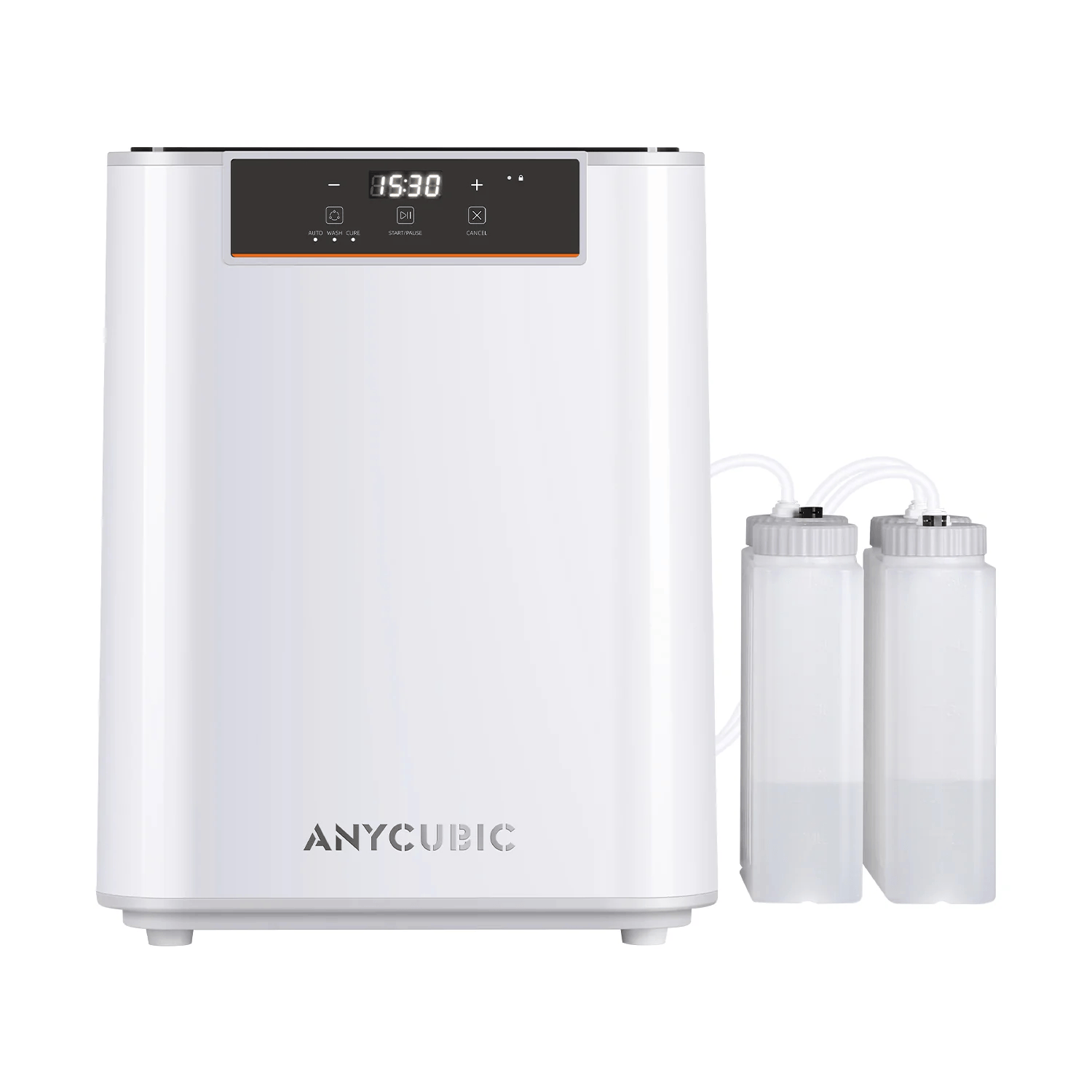

Anycubic Wash and Cure 3 Max

Product details

Ultra-large 15.1L wash capacity | One-click automated washing and curing | Compatible with most mainstream LCD printers up to 13.6 inches | Customisable wash and cure modes | Intelligent error monitoring

The Anycubic Wash & Cure 3 Max is built for serious resin 3D printing enthusiasts, studios, and professionals who need a reliable, high-capacity post-processing station. With a maximum wash capacity of 305 × 165 × 300 mm and a cleaning container capacity of 20L, it handles large and batch prints with ease — making it compatible with the Photon M3 Max, Photon Mono M7 Max, and most mainstream LCD printers with a build volume of 13.6 inches or smaller. One-click automation drives the full wash and cure cycle, eliminating messy manual handling, while three flexible modes — Auto (13–42.5 mins), Wash (10–39.5 mins), and Cure (0.5–30 mins) — let you dial in the process to suit each print. A 360° rotating curing platform powered by 20 × 405nm LEDs plus a gooseneck light delivers a maximum curing power density of 25,000 µW/cm² at 18 cm irradiation distance for a thorough, even cure. Full-process intelligent monitoring alerts you to open covers, low voltage, blockages, and liquid inflow issues before they become problems. The result is a cleaner, faster, and more controlled post-processing workflow from first wash to finished print.

Features

• Ultra-large 15.1L maximum curing volume accommodates large prints and batch runs from most LCD printers up to 13.6 inches
• Maximum wash dimensions of 305 × 165 × 300 mm — compatible with Photon M3 Max, Photon Mono M7 Max, and most mainstream LCD printers
• One-click fully automated washing and curing cycle keeps hands clean and the workflow simple
• Three customisable modes: Auto (13–42.5 mins), Wash (10–39.5 mins), and Cure (0.5–30 mins) for flexible post-processing
• 360° spray cleaning combined with bottom-section immersion for thorough, IPA-efficient cleaning
• Curing platform with 20 × 405nm LEDs plus gooseneck light, reaching up to 25,000 µW/cm² power density at 18 cm
• Full-process intelligent monitoring with error alerts for open cover, no liquid inflow, outlet blockage, and low voltage
• Transparent flip-open lid and minimalistic touch-button control panel for easy access and operation

Specifications

• Maximum Curing Volume: 15.1L
• Maximum Cleaning Volume: 305*165*300mm
• Cleaning Method: Alcohol Soaking + Spray Rinse
• Time Setting Range: 13-42.5 Mins (Auto mode), 10-39.5 Mins (Wash mode), 0.5-30 Mins (Cure mode)
• Cleaning Container Capacity: 20L
• UV Light Configuration: 20pcs*405nm LEDs + Gooseneck Light
• Power Supply: 120W
• Control Interface: Touch Buttons
• Compatible Printer Models:
  • Photon M3 Max
  • Photon Mono M7 Max
  • Most mainstream LCD printers with build volume 13.6 inches or smaller
• Product Dimensions: 43.4 × 43.4 × 55.6 cm
• Product Weight: 13500g

What’s in the Box

• Anycubic Wash & Cure 3 Max Tray x1
• Detergent Drum x1
• Waste Liquid Drum x1
• Clean Liquid Drum x1
• Water Tubes x4
• Wrench Set x1
• Power Adapter and Power Cord x1
• User Manual x1

Weight

13500g

Manufacturer

Anycubic

Product Name

Anycubic Wash and Cure 3 Max

Accessory Type

Wash and Cure Machine

Package Weight

19.1 kg

Compatible Printer Models

Photon M3 Max,Photon Mono M7 Max,Most mainstream LCD printers with build volume 13.6 inches or smaller

Quantity Per Pack

1

Package Dimensions

505 × 500 × 620 mm

Printer Technology

Resin/LCD

Product Dimensions

43.4 × 43.4 × 55.6 cm

Included Components

Wash and Cure 3 Max Tray x1,Detergent Drum x1,Waste Liquid Drum x1,Clean Liquid Drum x1,Water Tubes x4,Wrench Set x1,User Manual x1,Power Adapter and
