UGREEN • Revodok • CM512 / 60515
One connection. A desk that comes together.

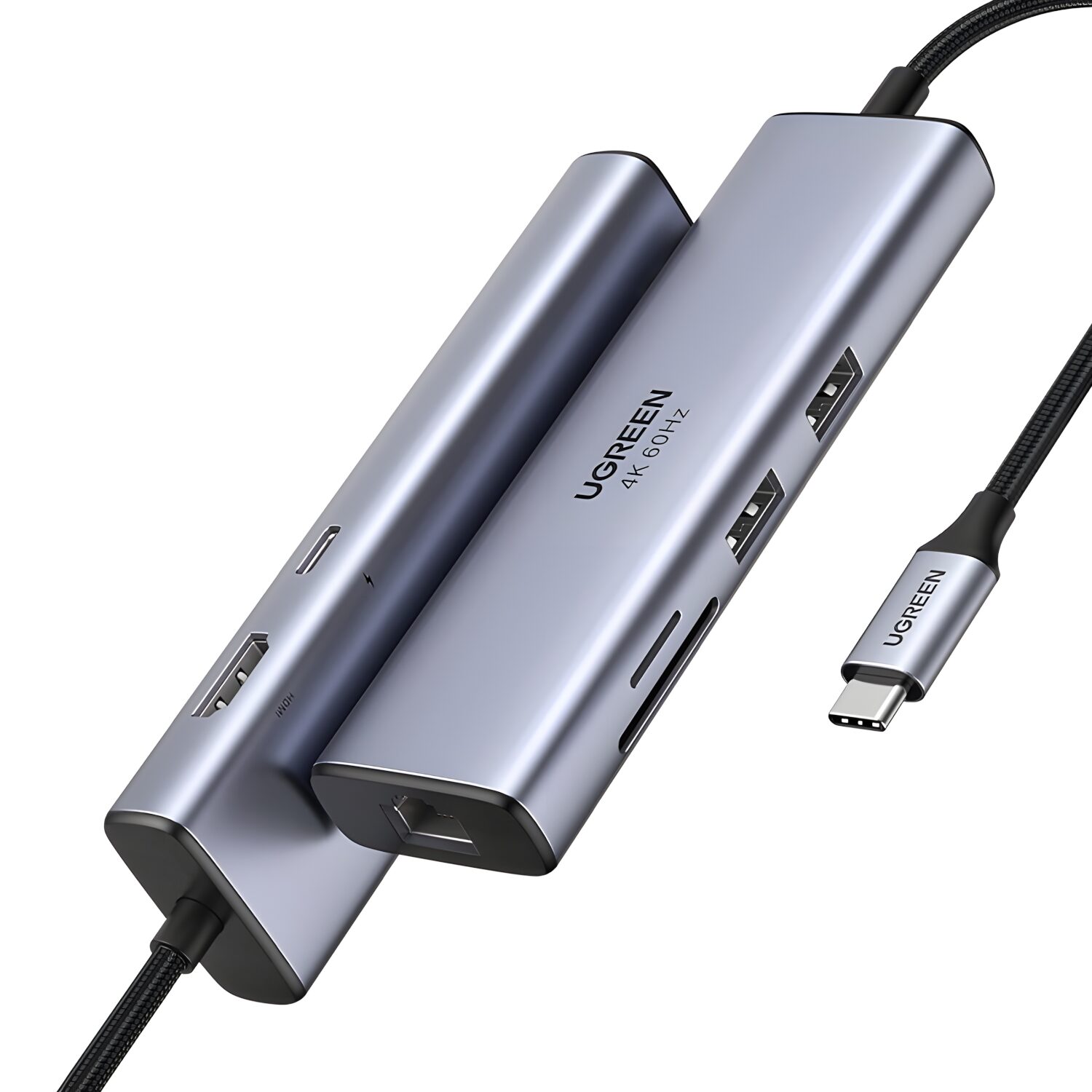

Bring a display, wired network, USB accessories and memory cards to a compatible USB-C host. This seven-port Revodok hub combines HDMI, Gigabit Ethernet, two USB-A ports, SD and microSD slots, plus USB-C Power Delivery input in an aluminium enclosure.

Display connection
Give the work another screen.
Use the HDMI output to mirror your display or extend the desktop where the host operating system supports it. Up to 4K at 60Hz requires a USB-C host with DisplayPort 1.4 Alt Mode, a suitable HDMI connection and a compatible display. A USB-C connector by itself does not establish video-output support.
Peripherals and files
Keep the everyday connections close.
Two USB-A 3.0 ports provide nominal links up to 5Gbps for compatible peripherals. The separate SD and microSD/TF slots are rated up to 104MB/s. Actual transfers depend on the card, drive, host and shared hub connection; interface rates are not promises of sustained file speed.
A wired route
Connect the desk to the network.
The RJ45 port supports Gigabit Ethernet. A 1Gbps network port, suitable cable and supported Ethernet driver are required for the rated link. Network equipment, service and traffic determine actual transfer or internet speed; the hub does not increase a slower connection.
Pass-through power
Leave room in the power budget.
Connect a suitable USB-C PD charger to the charging input while the hub is in use. The input is rated up to 100W; the manufacturer specifies up to 85W output to the host after the hub power allowance. Charging also depends on the charger, cable, host and connected workload. The USB-C PD input is for charging, not an extra data port.
