UniFi Lite 16 PoE installation guide
Official model-specific illustrated installation guide. Check mounting, power and adoption steps for the Lite 16 PoE.
Open official support (opens in a new tab)
UBIQUITI Lite 16 PoE; (8) GbE PoE+, (8) GbE ports; 45W total PoE availabili
New
Supplier has stock — 5 avail
UniFi Lite 16 PoE EU-version managed Layer 2 switch with 16 Gigabit RJ45 ports, eight 802.3af/at PoE+ ports sharing 45W, fanless cooling and desktop/wall placement.
R4,819.00
VAT included · Secure checkout
Supplier has stock — 5 avail
Key product details
Full specifications below- Upc: 810010071163
- Gtin: 810010071163
- Brand: Ubiquiti
- Condition: New
Delivery & support
Clear fulfilment, warranty and payment details.
- Availability Supplier has stock — 5 avail Supplier has stock — 5 avail
- Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
- Dispatch Ships within 24 hours. Ships within 24 hours
- Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
- Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
- Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ubiquiti • UniFi Lite 16 PoE • EU version
Sixteen connections. One considered network.
Bring wired devices and compatible PoE equipment together in a compact, fanless switch. UniFi Lite 16 PoE provides sixteen Gigabit Ethernet ports, including eight PoE/PoE+ ports sharing a 45W power budget, with desktop or wall placement and management through UniFi Network.
16 GbERJ45 ports
8 PoE+45W shared budget
FanlessDesktop or wall
UniFiLayer 2 management
Connections that count
Separate the port count from the power budget.
All sixteen RJ45 ports support 10/100/1000Mbps Ethernet. Eight also provide standards-based 802.3af/at PoE/PoE+ for compatible devices; the other eight carry data. The 45W total PoE budget is shared across the powered ports, so plan for the combined device demand rather than multiplying a single-port rating by eight.
A quieter equipment space
Fanless cooling, compact placement.
The white polycarbonate enclosure can sit on a desktop or mount to a wall. With no cooling fan, it fits equipment spaces where fan noise is unwelcome. Observe the specified ambient range and leave ventilation clear; wall mounting does not make the switch an outdoor device.
Manage the wired network
Put ports and policies in one view.
UniFi Network provides configuration and monitoring through the Ethernet management connection. Supported Layer 2 features include VLANs, LACP aggregation, STP/RSTP, IGMP snooping, port mirroring and flow control. Choose the UniFi deployment and software appropriate to your installation; the switch is not a router or an SMB file server.
Switching capacity
Room for Gigabit traffic across the ports.
The switch is rated for 32Gbps switching capacity and 16Gbps total non-blocking throughput, with a 24Mpps forwarding rate. These are switching specifications, not an internet-speed promise. The uplink, connected devices and traffic pattern still shape performance.
Power and physical fit

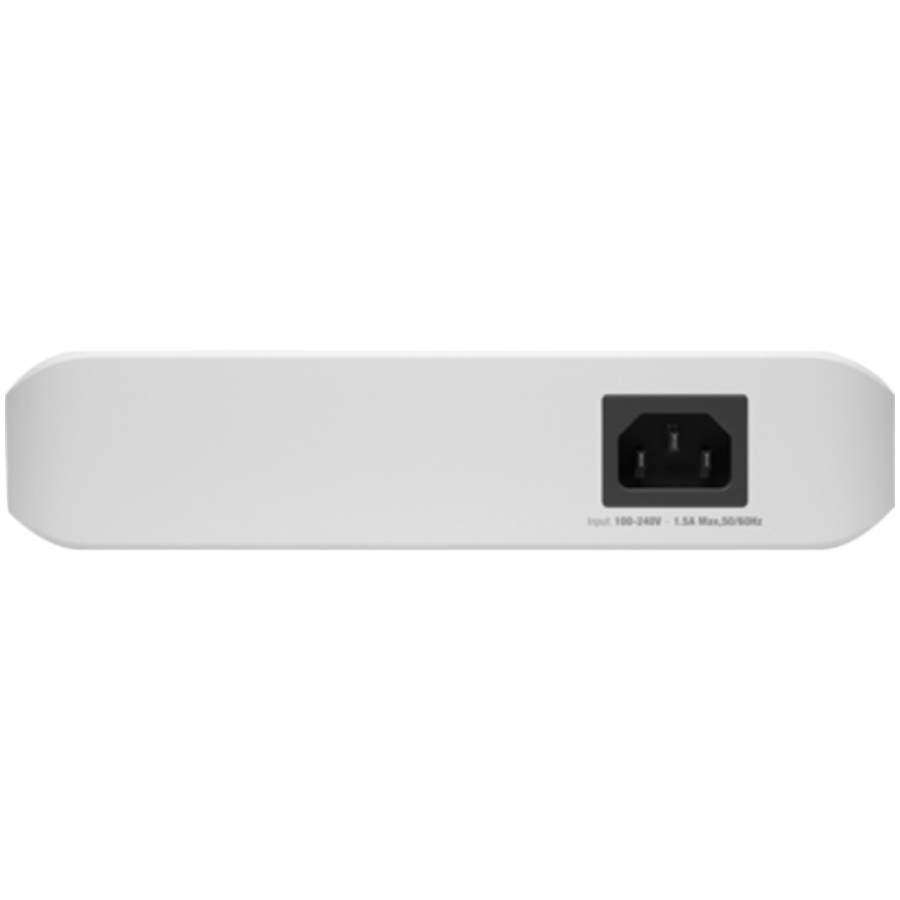

AC power stays inside the enclosure.
An internal 60W AC/DC supply accepts 100–240V AC at 50/60Hz. The switch itself uses up to 15W excluding PoE output, or up to 60W with PoE output included. This listing carries the EU-version suffix; confirm a suitable mains lead and local plug arrangement for the installation.
Specifications
Identity and ports
| Model | UniFi Switch Lite 16 PoE |
|---|---|
| Listing SKU / region | USW-LITE-16-POE-EU / EU version |
| Ethernet ports | 16 × RJ45, 10/100/1000Mbps |
| PoE-enabled ports | 8 × PoE/PoE+; IEEE 802.3af/802.3at |
| Data-only ports | 8 × Gigabit Ethernet |
| Total PoE budget | 45W shared across all PoE ports |
| Per-port selection | Match the powered-device class and power demand; shared 45W budget remains the overall limit |
| Form factor | Compact desktop or wall-mount switch |
Switching and management
| Switching layer | Layer 2 |
|---|---|
| Switching capacity | 32Gbps |
| Total non-blocking throughput | 16Gbps |
| Forwarding rate | 24Mpps |
| Supported VLANs | 1,000 |
| MAC address table | 8,000 entries |
| Packet buffer | 0.5MB |
| Management interface | Ethernet, in-band |
| Controller application | UniFi Network 7.2.94 or later, per current manufacturer requirements |
| Selected Layer 2 features | LACP, STP/RSTP, IGMP snooping, VLANs, port mirroring, flow control |
Power and enclosure
| Power input | 100–240V AC, 50/60Hz |
|---|---|
| Power supply | Internal 60W AC/DC |
| Maximum consumption excluding PoE | 15W |
| Maximum consumption including PoE | 60W |
| Cooling | Fanless |
| Enclosure / colour | Polycarbonate / white |
| Dimensions (W × D × H) | 191.7 × 185 × 43.7mm; current rounded specification 192 × 185 × 44mm |
| Weight | 1.2kg |
Environment and supply
| Operating temperature | −15°C to 40°C |
|---|---|
| Operating humidity | 10–90%, non-condensing |
| Certifications | CE, FCC, IC; regional requirements apply |
| Supplied item | 1 × switch; check supplied mains lead for the installation |
| Warranty listing | Supplier-listed 12 months; applicable supplier/manufacturer terms apply |
Check the total PoE demand of the intended devices and the UniFi Network deployment before ordering. This switch supplies standards-based PoE/PoE+; a 24V passive-PoE radio needs its own compatible power arrangement. EU-version wording does not establish a 24-month South African warranty.
Driver & Software Downloads
Use official support resources for this product. Each link opens in a new tab.
UniFi Lite 16 PoE technical datasheet
Official original datasheet for the exact switch. Confirm powered-device requirements and the shared 45W PoE budget; specifications may be revised.
