TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera – 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details. 24h Full-Color: Captures 24 hours of full-color details

0.0 No reviews yet Write a review
SKU: VIGI-C540V
New Supplier has stock — 10 avail

TP-Link VIGI C540V 4 MP outdoor pan-and-tilt camera with dual-lens 3× mixed zoom, colour and infrared night viewing, PoE+ and microSD support.

R2,169.00

VAT included · Secure checkout

Supplier has stock — 10 avail

Key product details

Full specifications below
  • Mpn: VIGI-C540V
  • Brand: VIGI
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 10 avail Supplier has stock — 10 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

TP-LINK VIGI C540V

Follow activity across a wider site

Cover a yard, loading bay or entrance with a motorised 4 MP camera. Set patrol points for the wider site and use the dual-lens 3× mixed zoom when you need a closer view.

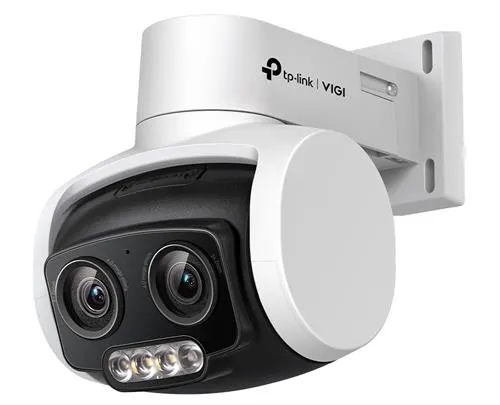

White TP-Link VIGI C540V outdoor camera with two front lenses and wall bracket
3×Mixed zoom
332°Pan range
4 MPMain stream
256 GBMaximum microSD capacity

Framing

Patrol between the points you choose

Set up to eight patrol routes and pick the views that belong on each route. Use person or vehicle classification, region rules and line crossing to focus alerts. Smart tracking can follow detected movement within the camera’s view.

After dark

Choose colour or infrared

Use the three white LEDs when colour information matters after dark. Use infrared for a monochrome view. TP-Link rates both illumination modes at up to 30 m.

Wiring and recording

Plan the recording before mounting

Use a PoE+ port or a separate 12 V DC supply. Record locally to a compatible microSD card or use a compatible recorder. The microphone and speaker support two-way audio, and event rules can trigger light or sound.

Specifications

Optics and movement

Sensor1/3-inch progressive-scan CMOS
Lens systemDual lens, f/1.6, 4–12 mm mixed zoom range
View84° horizontal, 46° vertical, 100° diagonal (manufacturer-listed field of view)
Pan and tilt0° to 332° pan, 0° to 120° tilt
Presets and patrolsUp to 300 presets, eight patrols, eight presets per patrol
Night lightingOne 850 nm infrared LED and three white LEDs, up to 30 m in either mode

Video and audio

Main stream2560 × 1440 maximum, up to 25 fps at 50 Hz or 30 fps at 60 Hz
Sub-stream640 × 480 maximum, up to 25 fps at 50 Hz or 30 fps at 60 Hz
EncodingMain: H.265+, H.265, H.264+ or H.264. Sub: H.265 or H.264.
Image controlsDigital WDR, 3D DNR, Smart IR, privacy masks and region of interest
Two-way audioBuilt-in microphone and speaker
EventsPeople and vehicle classification, motion, tampering, intrusion, line crossing and region entry or exit

Installation

NetworkOne 10/100 Mbps RJ45, ONVIF Profile S
Power802.3at PoE+, class 4, or 12 V DC ±5%, 14 W maximum
StoragemicroSD up to 256 GB. Card sold separately.
Protection and environmentIP66, −30 to 60 °C, up to 95% RH non-condensing
Size and weight139 × 136 × 107 mm, approx. 430 g
Manufacturer-listed packageCamera, guide, weatherproof cable fittings and mounting accessories
