TP-Link VIGI C540S VIGI 4MP Full-Color PTZ Network Camera

0.0 No reviews yet Write a review
SKU: VIGI-C540S(4MM)
New Supplier has stock — 1 avail

VIGI C540S 4 MP outdoor pan and tilt camera with a fixed 4 mm ColorPro lens, PoE+, two-way audio and microSD support.

R3,129.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: VIGI-C540S(4MM)
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

TP-LINK VIGI C540S

Colour after dark, with room to look around

The VIGI C540S combines a bright fixed 4 mm lens with motorised pan and tilt. Use its 4 MP picture to monitor a broad outdoor area and return quickly to saved views.

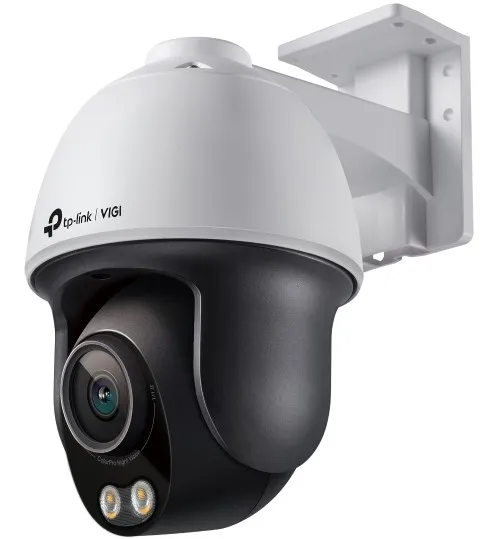

TP-Link VIGI C540S pan and tilt camera with its wall mounting bracket
4 MP2688 × 1520 video
4 mmFixed f/1.0 lens
348°Motorised pan travel
IP66Outdoor protection

Low-light picture

Keep colour when ambient light falls

ColorPro combines a 1/1.79-inch sensor and an f/1.0 lens. TP-Link rates the sensor at 0.0005 lux in colour. In complete darkness, the camera can use its white lights, rated up to 30 m, with lighting on a schedule or controlled automatically.

Pan and tilt

Save a view for each point of interest

Set presets for an entrance, gate or loading bay and group up to eight presets per patrol. The fixed 4 mm lens gives a 104° horizontal field of view from each position. Pan and tilt change the direction of the view.

Review and response

Find a relevant event and respond on site

Use person and vehicle classification or set line-crossing and intrusion alerts. The microphone and speaker support two-way audio, and configured events can trigger the white light or audible warning. TP-Link specifies compatible VIGI software for face recognition and attribute-based searches.

Mounting and storage

Plan the cable and where video will be kept

Use a wired PoE+ port or a suitable 12 V DC supply. Fit a microSD card for on-camera recording or plan network recording separately. Use the included cable fittings and check the guide before mounting outdoors.

Specifications

Optics and motion

Sensor and lens1/1.79-inch progressive-scan CMOS, fixed 4 mm f/1.0 lens
Field of view104° horizontal, 55° vertical, 127° diagonal
Low-light rating0.0005 lux, 0 lux with white light
White illuminationTwo LEDs, rated up to 30 m
Pan and tilt0–348° pan and 0–105° tilt
Patrol settingsUp to 300 presets and 8 patrols with up to 8 presets each

Video and events

Maximum resolution2688 × 1520
Main stream rateUp to 25 fps in 50 Hz mode, 30 fps in 60 Hz mode
Main encodingH.265+, H.265, H.264+, H.264
Dynamic range120 dB WDR, digital WDR only when face recognition is enabled
DetectionPerson and vehicle classification, line crossing, intrusion, movement, tampering and other selectable events
Analytics dependencyFace recognition and people or vehicle attribute search require TP-Link’s specified VIGI software
AudioBuilt-in microphone and speaker for two-way audio

Network, power and storage

EthernetOne 10/100 Mbps RJ45 port, ONVIF support
PowerIEEE 802.3at PoE+, class 4, up to 16.47 W, or 12 V DC ±5%, up to 13.13 W
Local storagemicroSD up to 512 GB, card sold separately
EnclosureIP66, plastic
Size (L × W × H)120 × 172 × 203 mm
Operating range−30 to 60 °C, up to 95% RH, non-condensing
PackageCamera, quick start guide, weatherproof fittings and mounting accessories. Pole mounting kit and microSD card are separate.
