TP-Link VIGI-C420I 2

0.0 No reviews yet Write a review
SKU: VIGI-C420I(2.8MM)
New Supplier has stock — 1 avail

TP-Link VIGI C420I 2.8 mm turret camera with 1080p video, infrared night vision, PoE and people and vehicle detection.

R649.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: VIGI-C420I(2.8MM)
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

TP-Link VIGI C420I · 2.8 mm IR turret

See more of the entrance in one frame

The 2.8 mm VIGI C420I is a 2 MP turret camera for a wide view at short range. Mount it where you can see both sides of an indoor entrance, use its infrared light after dark and run power and data over one Ethernet cable from a compatible PoE source.

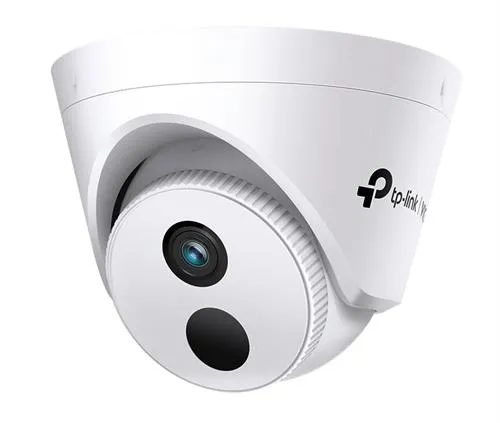

White VIGI C420I turret camera with its lens and infrared emitter facing forward
2.8 mmFixed wide-angle lens
1080p2 MP recording
PoEOne Ethernet cable for power and data

Framing

Cover a wider doorway

The 88.2° horizontal field of view takes in more of the scene than the 4 mm version. For a corridor, rotate the picture into a vertical frame so more of the recording follows the passage. Rotation limits the maximum frame rate to 20 fps.

After dark

Keep the entrance visible when lights go out

The infrared emitter lights the scene in darkness, with a manufacturer-rated range of up to 30 m. Smart IR helps control glare from subjects close to the camera; wide dynamic range and digital noise reduction help with uneven light and image noise.

Event review

Choose what should trigger an alert

Draw a line or mark a region in the picture to flag the activity you need to review. The camera can classify people and vehicles and watch for tampering or objects left behind or removed. H.265+ is available on the main stream for a compatible recorder; storage use depends on the scene and settings.

Specifications

Optics

Fixed lens2.8 mm, f/2.2, M12 mount
Field of view88.2° horizontal, 48.7° vertical, 106.5° diagonal
Sensor1/3-inch progressive-scan CMOS
Infrared850 nm, up to 30 m; mechanical IR cut filter
Manual adjustmentPan 0–360°, tilt 0–85°, rotate 0–360°

Video and image

Maximum resolution1920 × 1080 (2 MP)
Main streamH.265+, H.265, H.264+ or H.264; 1920 × 1080, 1280 × 960 or 1280 × 720
SubstreamH.265 or H.264; up to 704 × 576
Frame rateUp to 25 fps in 50 Hz mode or 30 fps in 60 Hz mode; up to 20 fps at 90° or 270° image rotation
Image processingWide dynamic range, Smart IR, 3D digital noise reduction, backlight and highlight compensation
Privacy maskingUp to four masks

Detection

ClassificationPeople and vehicles
Scene eventsLine crossing, intrusion, region entry/exit and objects left or removed
Other eventsMotion and camera tampering; push notifications when configured

Network and power

Ethernet1 × RJ45, 10/100 Mb/s
Power over EthernetIEEE 802.3af/at, Class 0
ManagementVIGI app, VIGI Security Manager and compatible VIGI NVR
InteroperabilityONVIF; confirm features with the intended recorder
Audio and storageNo built-in microphone, speaker or on-board storage listed for the documented version

Installation

HousingPlastic turret; no IP weather rating listed
Size123 × 123 × 83 mm in the regional product specifications
Operating conditions−30 to 60 °C, up to 95% relative humidity, non-condensing; keep the installation sheltered and dry

Use a compatible PoE switch, injector or recorder. Plan to record to a compatible NVR or recording platform. Manufacturer range is an illumination rating, not a guarantee of identification distance.

Driver & Software Downloads

Use official support resources for this product. Each link opens in a new tab.

VIGI C420I setup and downloads

Select the hardware version on the device label to find the matching installation guide and regional firmware. The page lists supported versions of VIGI tools for Windows.

Open official support (opens in a new tab)
