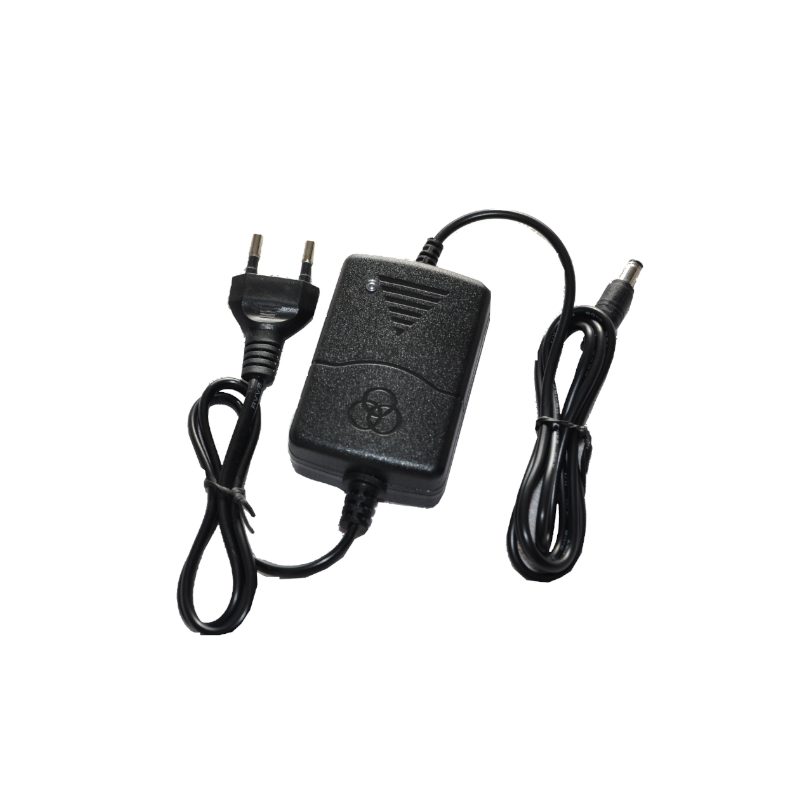

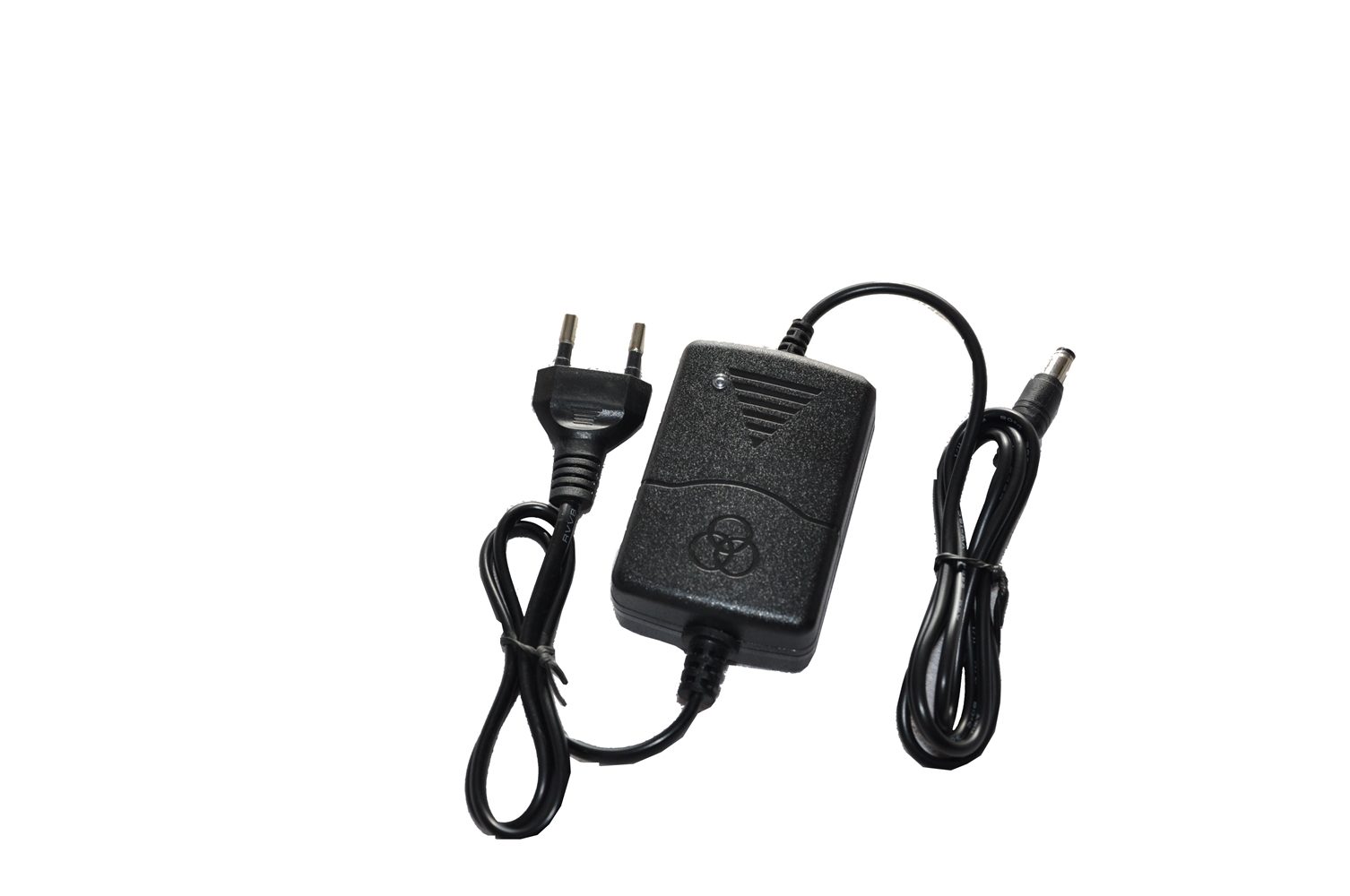

PD Power 12V 1A Desktop Adapter
PD Power 12V 1A Desktop Adapter
R64.00
In Stock — 50 available — Ships within 24 hours
Key product details
Full specifications below- Warranty: 2 Year Warranty
- Voltage: 12V
- Brand: PD Powers
- Ean: 0732030025554
- Gtin: 0732030025554
- Availability In Stock — 50 available — Ships within 24 hours In Stock — 50 available — Ships within 24 hours
- Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
- Dispatch Ships within 24 hours. Ships within 24 hours
- Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
- Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
- Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Product details
12V 1A Desktop Adapter
FEATURES
- Universal AC input/Full range
- Protections: Short circuit/Overload
- 100% full load burn-in test
- Cooling by free air convection
- High efficiency up to 80%
- Low cost, high reliability
SPECIFICATION
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 1A
CURRENT RANGE: 0~1A
RATED POWER: 12W
RIPPLE & NOISE (max.): 300mVP-P
VOLTAGE TOLERANCE: ±0.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2ms, 40ms/115VAC at full load
HOLD UP TIME(Typ.): 5ms/115VAC at full load
INPUT
VOLTAGE RANGE: 100 ~ 245VAC
FREQUENCY RANGE: 50 ~ 60Hz
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 3A/240VAC
INRUSH CURRENT (Typ.): COLD START 30A/240VAC
LEAKAGE CURRENT: <3mA / 240VAC
PROTECTION
OVERLOAD: 105 ~ 135% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~16.2V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
WORKING TEMP.: 0 ~ +40 (Refer to “Derating Curve”)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP. / HUMIDITY: -25 ~ +85 ?,10~ +95% RH
SAFETY
SAFETY STANDARDS: CE approved
WITHSTAND VOLTAGE: DIELECTRIC STRENGTH 1500Vac/5mA/60s
DIMENSION: 90 x 50 x 30mm (L x W x H)
DC jack: 5.5 x 2.1/2.5mm
AC cable length: 120cm
DC cable length: 100cm
| Weight | 0.07 g |
|---|---|
| Dimensions | 98 × 12 × 5 cm |
| Warranty | 2 Year Warranty |
| Voltage | 12V |
| Brand | |
| Ean | 0732030025554 |
| Gtin | 0732030025554 |
