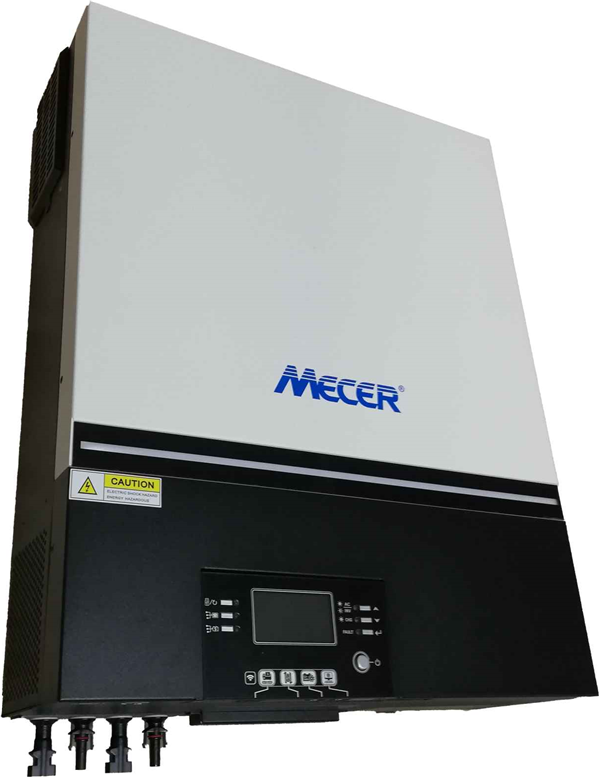

MECER SOL-I-AX-8M Off Grid 8kVA 8kW 8kW MPPT 48V Inverter

Name: MECER SOL-I-AX-8M Off Grid 8kVA 8kW 8kW MPPT 48V Inverter | MatzoTech
Brand: Mecer
SKU: SOL-I-AX-8M
Price: 12939.00 ZAR
Availability: InStock

0.0 No reviews yet Write a review

Solar Inverters SKU: SOL-I-AX-8M

R12,939.00

VAT included · Secure checkout

In Stock with Supplier 2

Mpn: SOL-I-AX-8M
Brand: Mecer

Availability In Stock with Supplier 2 In Stock with Supplier 2
Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
Dispatch Ships within 24 hours. Ships within 24 hours
Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred

021 853 4790 onlineshop@matzotech.com WhatsApp

Product details

MECER 8kW Axpert MAX is a high performance off-grid inverter with 120A MPPT solar charger and customizable status bar LED bar with RGB lights.
If the 8000W is not enough for you, then the MAX can parallel up to 6 units in a single or 3-phase configuration for a total of 48000kW.

Features

    Customizable status LED bar with RGB breathing lights.
    Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
    Supports USB On-the-Go function.
    Reserved communication port for BMS (RS485, CAN-BUS or RS232).
    Replaceable fan design for ease of maintenance.
    Battery independent function.
    Enhanced AC/Solar charger to 120A.
    Built-in anti-dust kit.
    Parallel operation up to 6 units.

Specifications

    Model: SOL-I-AXMAX-8K48V.
    Rated Power: 8000VA/8000W.
    Parallel Capability: Yes, 6 units.

Input

    Voltage: 230 VAC.
    Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
    Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

    AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
    Efficiency (Peak): 90% ~ 93%.
    Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
    Waveform: Pure sine wave.
    No Load Power Consumption: <70W.

Efficiency

    Battery Voltage: 48 VDC.
    Floating Charge Voltage: 54 VDC.
    Overcharge Protection: 66 VDC.

Solar Charger & AC Charger

    Solar Charger Type: MPPT.
    Maximum PV Array Power: 8000W (4000W x 2).
    MPP Range @ Operating Voltage: 90 ~ 450 VDC.
    Maximum PV Array Open Circuit Voltage: 500 VDC.
    Number of MPP Trackers: 2.
    Maximum Solar Charge Current: 120 A.
    Maximum AC Charge Current: 120 A.
    Maximum Charge Current: 120 A.

Physical

    Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.
    Net Weight (kgs): 18.4.
    Communication Interface: USB/RS232/RS485/Wifi/Dry contact.
    IP Rating: IP21.

Environment

    Altitude: 1000m and de-rate by 1% for every 100m above 1000m.
    Humidity 5% to 95% Relative Humidity (Non-condensing).
    Operating Temperature: -10°C to 50°C (with over-temp protection in case inner component temperature reaches protection level.).
    Storage Temperature: -15°C to 60°C.
