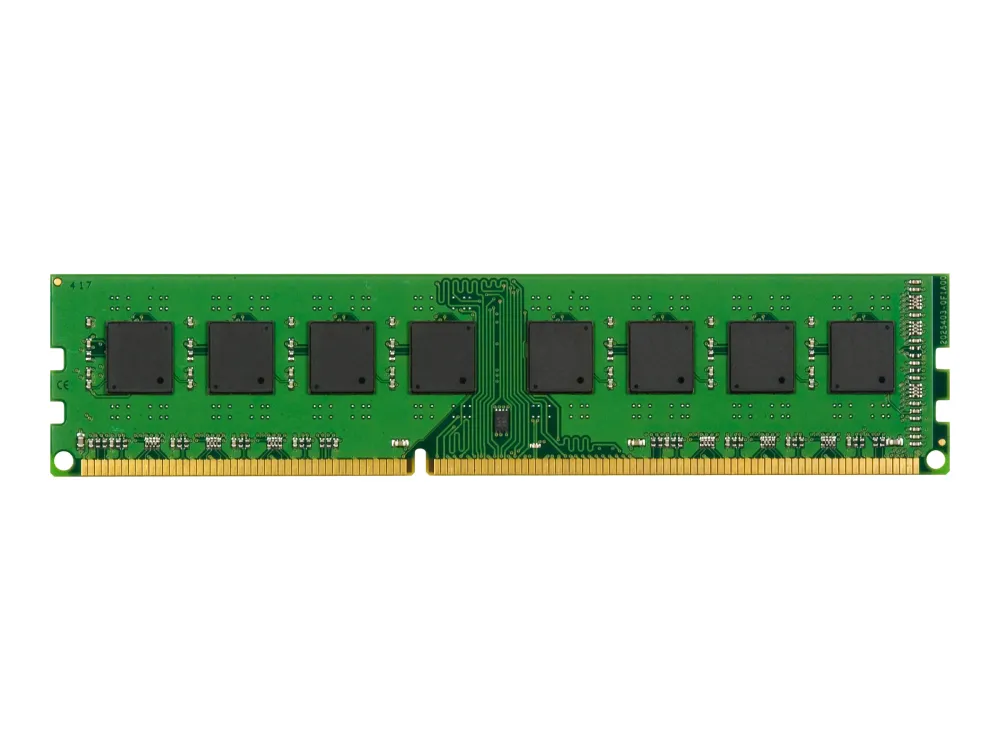

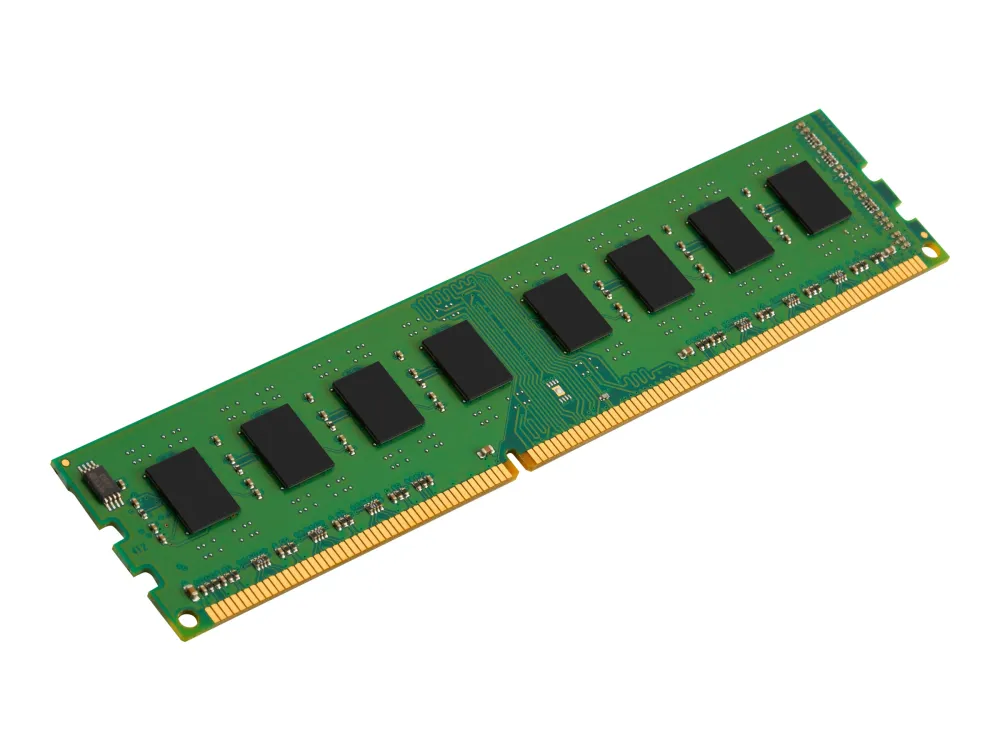

Kingston KCP316NS8/4 · desktop memory
4GB DDR3, matched to the platform
Kingston KCP316NS8/4 is a 4GB DDR3 desktop DIMM rated at 1600MT/s, with CL11 latency and a 1.5V operating voltage. Its 240-pin, non-ECC, unbuffered design and single-rank x8 organisation are the details to match before upgrading an existing system.

Electrical match
Start with the memory your system accepts
This module uses DDR3, a 240-pin DIMM connection and a 1.5V operating voltage. Check the computer or motherboard specification for this memory generation, voltage and module type before installation.
Module organisation
Keep rank and error-checking requirements aligned
Kingston identifies the part as 1Rx8: a single-rank module using x8 organisation. It is unbuffered and non-ECC. These characteristics matter when matching memory to an existing desktop platform; capacity alone does not establish compatibility.
Legacy platform support
An identified part for an existing system
The exact KCP316NS8/4 part is listed as discontinued by Kingston. The existing offer retains its lifetime warranty description. Select against the exact supported system and its permitted memory configuration, rather than assuming every DDR3 desktop accepts the same module.
