Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard | Red Switches – Black

0.0 No reviews yet Write a review
SKU: V1M-D1
New Supplier has stock — 1 avail

Black Keychron V1 Max 75% ANSI knob keyboard with linear Gateron Jupiter Red switches, QMK remapping and three connection modes.

R2,579.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Mpn: V1M-D1
  • Brand: Keychron
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Official manufacturer overview

Keychron V1 Max typing sound test

Keychron · Hear the Gateron Jupiter Red switches from 0:10. This Keychron V1 Max test also demonstrates the separately available Brown and Banana switches.

Play to load this video from YouTube.

KEYCHRON V1 MAX · GATERON JUPITER RED

A compact layout with a smooth linear switch

Make more room for your mouse while keeping dedicated arrows and function keys. This black Keychron V1 Max comes fully assembled with linear Gateron Jupiter Red switches, and works over 2.4 GHz, Bluetooth or wired USB-C.

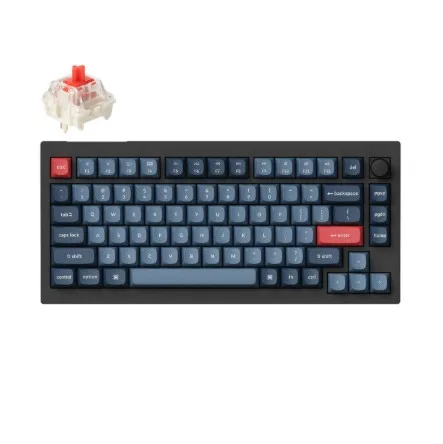

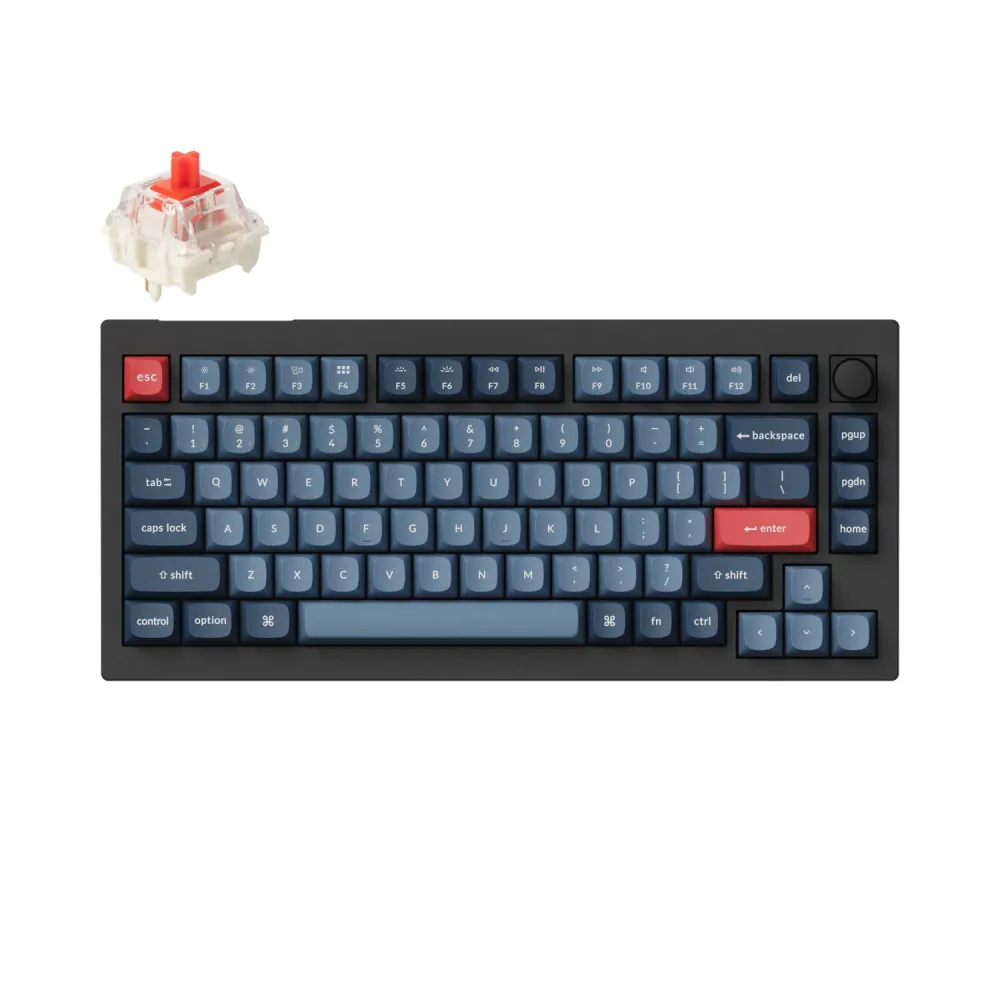

Black Keychron V1 Max ANSI keyboard with rotary knob and Gateron Jupiter Red switches
75%ANSI layout with rotary knob
RedGateron Jupiter linear switch
3 modes2.4 GHz, Bluetooth and wired

LAYOUT

Keep the controls you reach for

A compact 75% ANSI layout keeps the function row and arrow keys and leaves room beside the keyboard. The top-right rotary knob adds another programmable control.

SWITCHES

Set up the typing feel you want

The pre-lubed Red switches have 45 ± 15 gf operating force. The gasket mount and polycarbonate plate form the typing assembly. If you change switches, the PCB sockets accept compatible 3-pin or 5-pin MX-style mechanical switches without soldering.

CONNECTION

Pair three Bluetooth hosts or choose the receiver

Pair up to three Bluetooth hosts for switching, use a supplied 2.4 GHz receiver or plug in a USB-C cable. Keychron specifies 1,000 Hz polling in wired and 2.4 GHz modes and 90 Hz over Bluetooth.

CUSTOMISATION

Remap the knob, keys and layers

Connect by cable and use the model guide to reach Keychron Launcher in a compatible Chromium browser. The guide also covers receiver pairing, backlighting and the separate firmware instructions for the ANSI knob version.

Specifications

Exact edition

ModelV1 Max
Order codeV1M-D1
Configuration75% ANSI/US knob, fully assembled, Carbon Black
SwitchGateron Jupiter Red, linear, pre-lubed
Switch force and travel45 ± 15 gf, 2 ± 0.6 mm pre-travel, 4 mm maximum total travel

Construction

Case and plateABS case, polycarbonate plate, gasket mounting
KeycapsOSA-profile double-shot PBT, non-shine-through
Socket compatibility3-pin or 5-pin MX-style mechanical switches
StabilisersPCB-mounted screw-in stabilisers
LightingSouth-facing RGB
Controller32-bit STM32F402, 256 KB flash
Footprint and height328.5 × 148.7 mm; 21.5 mm front and 29.4 mm rear without keycaps
Typing angles and weight3.5°, 7.1° and 9.5°; 770 ± 10 g assembled
Platform controlsMac/Windows system toggle and alternate operating-system keycaps per Keychron
Operating environment−10 to 50 °C

Connections and power

Connection2.4 GHz receiver, Bluetooth 5.1, wired USB-C
Polling1,000 Hz over 2.4 GHz or wired; 90 Hz over Bluetooth
RolloverN-key rollover in wired and wireless modes
Host platformsWindows, macOS and Linux per Keychron
Battery4,000 mAh rechargeable lithium polymer, around 5 h charge time
Published battery estimatesUp to 190 h with lighting off or 100 h at the lowest RGB setting under Keychron test conditions

In the box

IncludedAssembled keyboard, USB-C to USB-C and USB-A to USB-C cables, receiver extension adapter, USB-A and USB-C 2.4 GHz receivers, keycap/switch puller, screwdriver and hex key
Local offer warranty12 months

This listing is the Red-switch ANSI knob edition. For layout-specific settings or firmware, use the V1 Max guide and confirm the ANSI/US knob layout on the device first.
