HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 3.5 mtr. coiledUSB cable(CBL030UA)and autosense. Incl. smart adjustable stnd

0.0 No reviews yet Write a review
SKU: NLS-HR3300-SA
New Supplier has stock — 3 avail

Newland HR33 Marlin Corded 1D and 2D handheld barcode scanner with a 3.5 m coiled USB lead and adjustable autosense stand.

R2,109.00

VAT included · Secure checkout

Supplier has stock — 3 avail

Key product details

Full specifications below
  • Mpn: NLS-HR3300-SA
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 3 avail Supplier has stock — 3 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Newland · HR33 Marlin Corded

Scan from the stand or in your hand

The HR33 Marlin Corded uses a megapixel imager and a cross-shaped laser aimer to read 1D and 2D barcodes. This exact bundle includes a 3.5 m coiled USB lead and Newland’s adjustable autosense stand, so you can leave the reader at the counter or lift it to scan larger items.

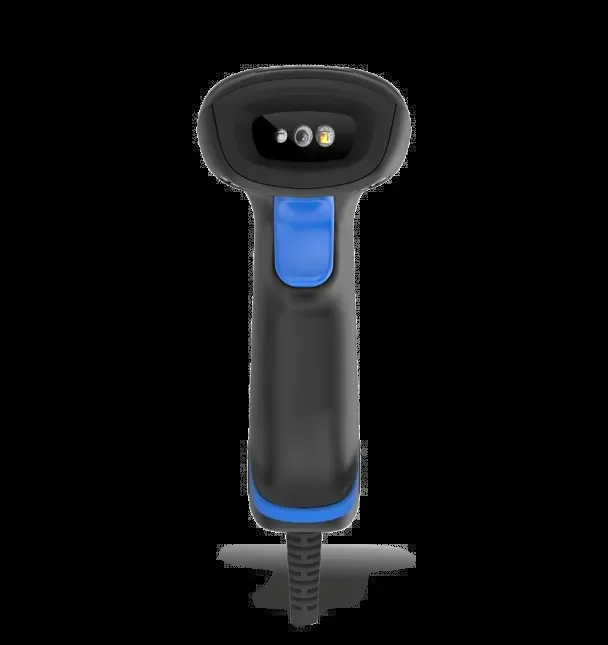

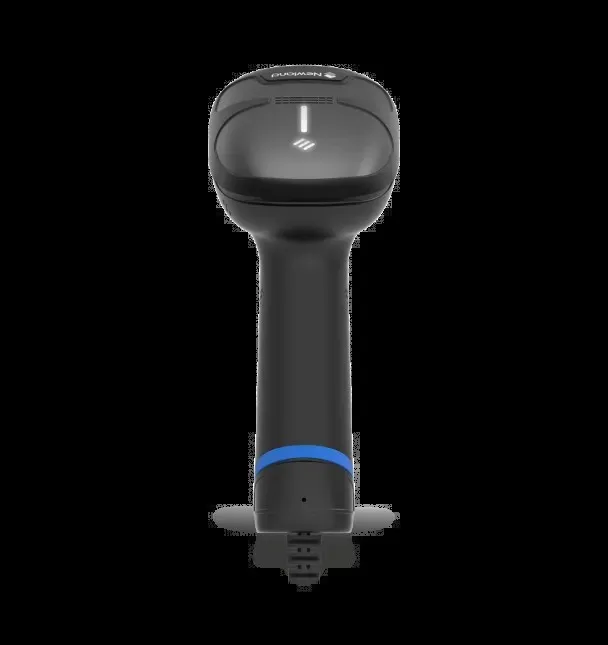

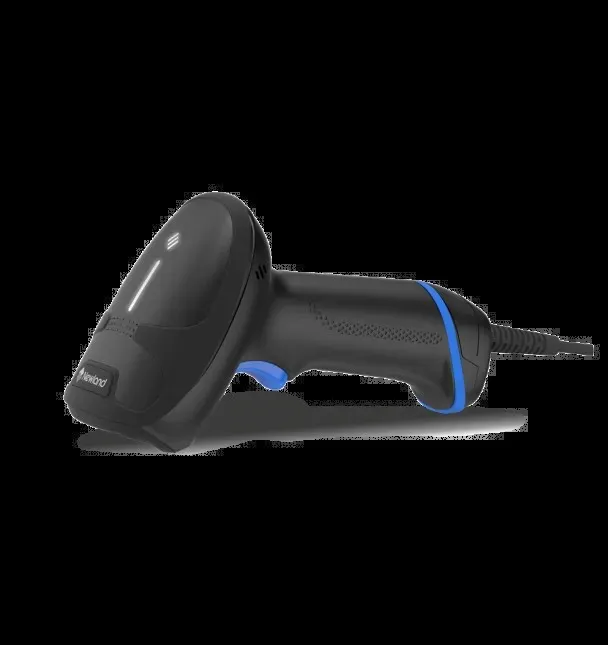

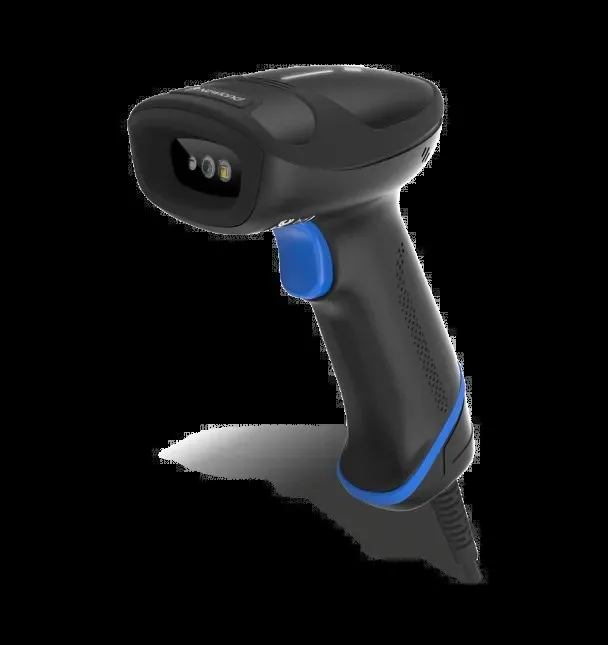

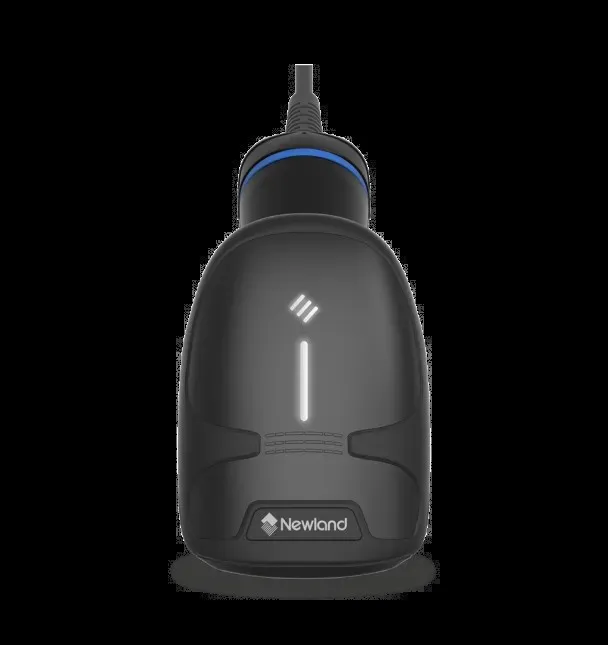

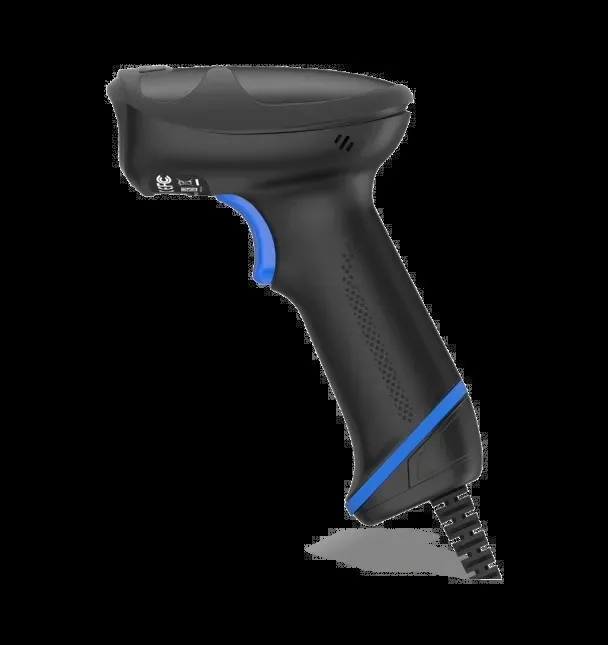

Newland HR33 Marlin Corded handheld barcode reader with blue trim around its black scan head
1D + 2DBarcode capture
3.5 mIncluded coiled USB lead
IP52Scanner ingress rating

Scan head

Aim at the intended code

The cross laser gives you a visible target while the 1280 × 800 imager reads formats including EAN-13, Code 128, QR Code and Data Matrix. A beep, light or vibration can confirm a good read.

HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 3.5 mtr. coiledUSB cable(CBL030UA)and autosense. Incl. smart adjustable stnd — Aim at the intended code

Counter workflow

Pick up the scanner as needed

Angle the supplied stand for hands-free presentation scanning and lift the reader for cartons or codes away from the counter. The coiled USB cable gives the handheld some reach when you move it.

HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 3.5 mtr. coiledUSB cable(CBL030UA)and autosense. Incl. smart adjustable stnd — Pick up the scanner as needed

Host connection

Choose the USB mode used by your host

USB keyboard mode sends scans as keystrokes. USB CDC and HID POS are available when your host software supports those modes. Use Newland’s user guide or EasySet to configure the reader for your workflow.

Specifications

Scanner and exact bundle

Manufacturer modelHR33 Marlin Corded
Order codeNLS-HR3300-SA
Supplied cableNewland CBL030UA, 3.5 m coiled USB
Supplied standNewland NLS-STD23-33-SA smart adjustable autosense stand
NotificationsBeeps, LED and vibration
Scanner size, length × width × height117.5 × 67.5 × 144 mm
Scanner weight140 g
Standard manufacturer warrantyFive years under Newland’s terms

Optics and barcodes

Image sensor1280 × 800 CMOS
Aim and illuminationCross laser; white LED lighting
1D examplesEAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, GS1-128, Code 93, Codabar, ITF and GS1 DataBar
2D examplesQR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode and DotCode
EAN-13 typical range40–535 mm at 13 mil
Code 39 typical range50–230 mm at 5 mil
Data Matrix typical range30–245 mm at 10 mil
PDF417 typical range45–215 mm at 6.7 mil
Field of view48° horizontal, 30° vertical

Host connection and environment

USB modesUSB keyboard wedge, USB virtual serial (CDC), HID POS
Other scanner interfaceRS-232 with a separately supplied compatible cable; the NLS-HR3300-SA includes USB
Setup utilityNewland EasySet
Input5 V DC ±5%
Current at 5 V281 mA maximum active; 129 mA standby
Ingress and drop ratingsIP52; 1.5 m drop rating
Operating temperature−20°C to 60°C
Storage temperature−40°C to 70°C
Humidity5% to 95%, non-condensing
