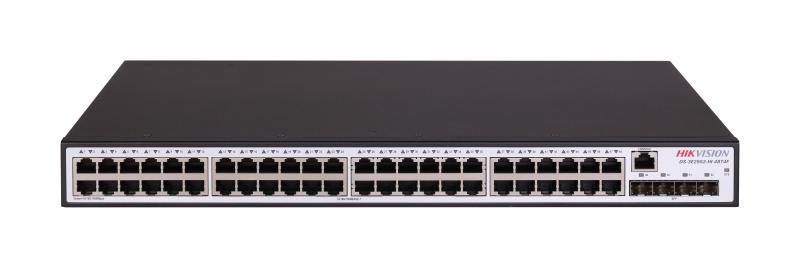

Hikvision Full Managed L2 Network Switch 48 * Gigabit Port 4 * 1Gb SFP Ports
New
Supplier has stock — 6 avail
Hikvision DS-3E2552-HI-48T4F managed Gigabit switch with 48 RJ45 ports, four Gigabit SFP uplinks, VLAN and QoS controls, static routing/RIP/OSPF and a rack-mount metal enclosure.
R8,199.00
VAT included · Secure checkout
Supplier has stock — 6 avail
Key product details
Full specifications below- Ean: 6942160440101
- Gtin: 6942160440101
- Condition: New
Delivery & support
Clear fulfilment, warranty and payment details.
- Availability Supplier has stock — 6 avail Supplier has stock — 6 avail
- Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
- Dispatch Ships within 24 hours. Ships within 24 hours
- Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
- Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
- Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Hikvision DS-3E2552-HI-48T4F • Managed Gigabit
Copper access. Fibre uplinks. More control.
Build a managed network around 48 Gigabit RJ45 ports and four Gigabit SFP uplinks. The DS-3E2552-HI-48T4F combines VLAN and traffic controls with manufacturer-listed static routing, RIP and OSPF, plus several ways to configure and monitor the switch.
48 × RJ45Gigabit access
4 × SFPGigabit fibre uplinks
104GbpsSwitching capacity
L2+Managed switching and routing
Access and uplinks
Keep fibre and copper options together
Forty-eight Gigabit RJ45 ports serve wired endpoints, while four Gigabit SFP connections provide fibre uplink choices with suitable modules. The 104Gbps switching and 77.38Mpps forwarding ratings describe the switch fabric. This is the 48T4F model, so PoE capability or 10Gbps uplinks should not be inferred from other Hikvision switches.
Segmentation and routing
Organise traffic across the network
The exact datasheet lists 802.1Q VLANs, protocol/MAC/guest VLANs, VLAN mapping and MVRP. Static routing, RIP and OSPF add routing options alongside DHCP relay and multicast controls. Check the required routing scale and firmware capabilities before installation.
Traffic and security
Apply policies at the right layer
SP, WRR and combined SP+WRR scheduling work with 802.1p/DSCP priority mapping and rate limits. Layer 2/3/4 ACLs, IPv4/IPv6 ACLs and VLAN ACLs support traffic rules. ARP protection, DHCP snooping, IP/MAC/port binding, 802.1X, RADIUS/AAA and MAC limits provide configurable access controls.
Administration and resilience
Choose a controlled maintenance path
Web and command-line management, console access, SSH, SNMP and Hik-Partner Pro support administration and monitoring. The DS-3E2500-HI family is described as supporting resilient stacking with master/slave redundancy; verify exact stack combinations and firmware before relying on that design. STP/RSTP/MSTP and static or dynamic aggregation provide further topology options.
Specifications
Identity and interfaces
| Manufacturer | Hikvision |
|---|---|
| Model | DS-3E2552-HI-48T4F |
| Category | Managed Gigabit L2+ switch |
| Access ports | 48 × Gigabit RJ45 |
| Fibre uplinks | 4 × Gigabit SFP cages; compatible modules required |
| Switching capacity | 104Gbps, whole-device and port-performance references |
| Forwarding rate | 77.38Mpps, whole-device and port-performance references |
| MAC table | 16K entries |
| Internal cache | 1.5Mbits |
| PoE | No PoE capability established for this exact48T4F model |
Layer2 and routing
| Ethernet | LLDP; static MAC configuration; MAC learning limits; port/traffic mirroring; port isolation |
|---|---|
| Aggregation | Static and IEEE 802.3ad dynamic; up to 24 groups and 8 ports per group |
| Spanning tree | STP/RSTP/MSTP |
| VLAN | 802.1Q up to 4K; protocol-based, MAC-based, guest VLAN, VLAN mapping, MVRP |
| IPv4 routing | Static routing; RIP; OSPF; numerical route capacity not established |
| DHCP | Relay; client; snooping |
| Multicast | IGMPv1/v2/v3 snooping; PIM snooping; multicast VLAN; IPv6 multicast settings |
| IPv6 | Static routing and dual-stack; DHCPv6 client/snooping; ND/PMTU; IPv6 Ping/Telnet/SSHv2/DNS |
QoS and security
| QoS | SP/WRR/SP+WRR;802.1p and DSCP priority mapping; port speed limits |
|---|---|
| ACLs | Layer 2/3/4; IPv4/IPv6; VLAN ACL |
| Access controls | IP+MAC+port binding; MAC limits;802.1X; RADIUS/AAA; hierarchical user/password management |
| Protection | ARP attack prevention; multicast/broadcast/unknown-unicast suppression; TTL=1 and protocol-packet protections |
| Secure administration | SSH encrypted login; SNMPv3; configure supported security policy |
Management and resilience
| Interfaces | Console/command line; web; SSH; manufacturer also lists Telnet and AUX-modem methods |
|---|---|
| File transfer reference | FTP/TFTP/Xmodem/SFTP supported; choose a suitable secure method |
| Monitoring | SNMPv1/v2c/v3; sFlow; NQA; NTP; operating logs |
| Hik-Partner Pro | Activation; port rates/utilisation; topology; alarms; restart ports/devices; remote update with correct firmware |
| Stacking scope | DS-3E2500-HI family supports Intelligent Resilient Framework/master-slave redundancy; verify exact model, firmware and supported stack topology |
| Maintenance | Hot patch/in-service patch upgrade listed; applicability must be verified |
Power and installation
| Input | 100–240V AC,50/60Hz |
|---|---|
| Maximum consumption | 39W |
| Idle consumption | 28W |
| Surge rating | 6kV manufacturer reference |
| Enclosure | Metal; rack mount with mounting ears |
| Dimensional values | 440 ×260 ×43.6mm; confirm installation drawing and available rack depth |
| Net weight | 3.10kg |
| Gross weight | 4.70kg |
| Operating temperature | −5–45°C |
| Storage temperature | −40–70°C |
| Operating humidity | 10–95%, non-condensing |
| Relative humidity reference | 5–95%, non-condensing |
Verify the hardware revision, firmware, topology and SFP module compatibility before deployment. Stacking features are described by Hikvision for the DS-3E2500-HI family; supported combinations, software and port use must be confirmed for the planned stack. Optical modules, fibre, stack cables and licences are not established as included.
