FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White.

0.0 No reviews yet Write a review
SKU: CC-9011297-WW
New Supplier has stock — 1 avail

White Corsair FRAME 4000D RS ARGB mid-tower with three RS120 ARGB PWM fans, adjustable InfiniRail mounts, E-ATX support and tempered glass.

R2,399.00

VAT included · Secure checkout

Supplier has stock — 1 avail

Key product details

Full specifications below
  • Upc: 840440487722
  • Gtin: 840440487722
  • Brand: Corsair
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 1 avail Supplier has stock — 1 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Corsair · FRAME 4000D RS ARGB · White

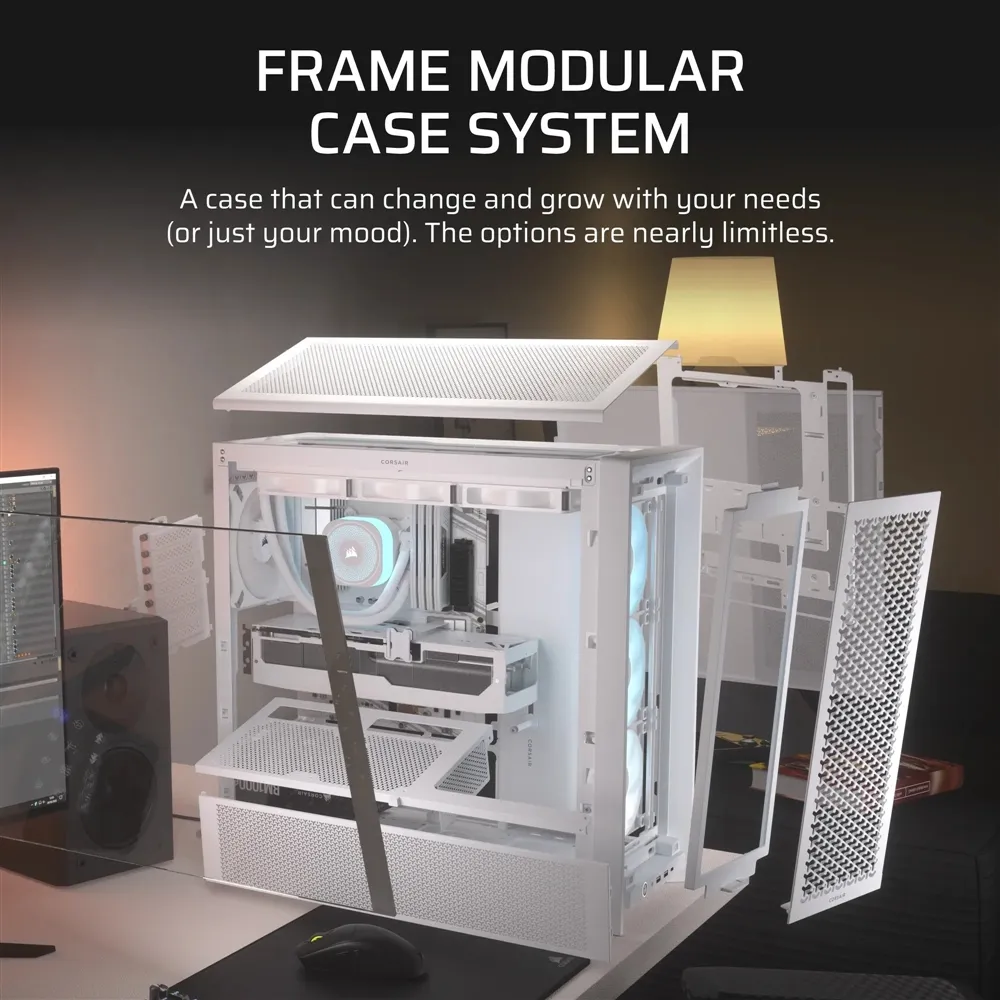

Lay out the build around the parts you want

Y-pattern steel mesh and a tempered-glass side panel frame this white Corsair mid-tower. The three front RS120 ARGB fans give you an intake and addressable lighting from the start. Adjustable mounting rails and a choice of horizontal or vertical GPU mounting leave room to change the build later.

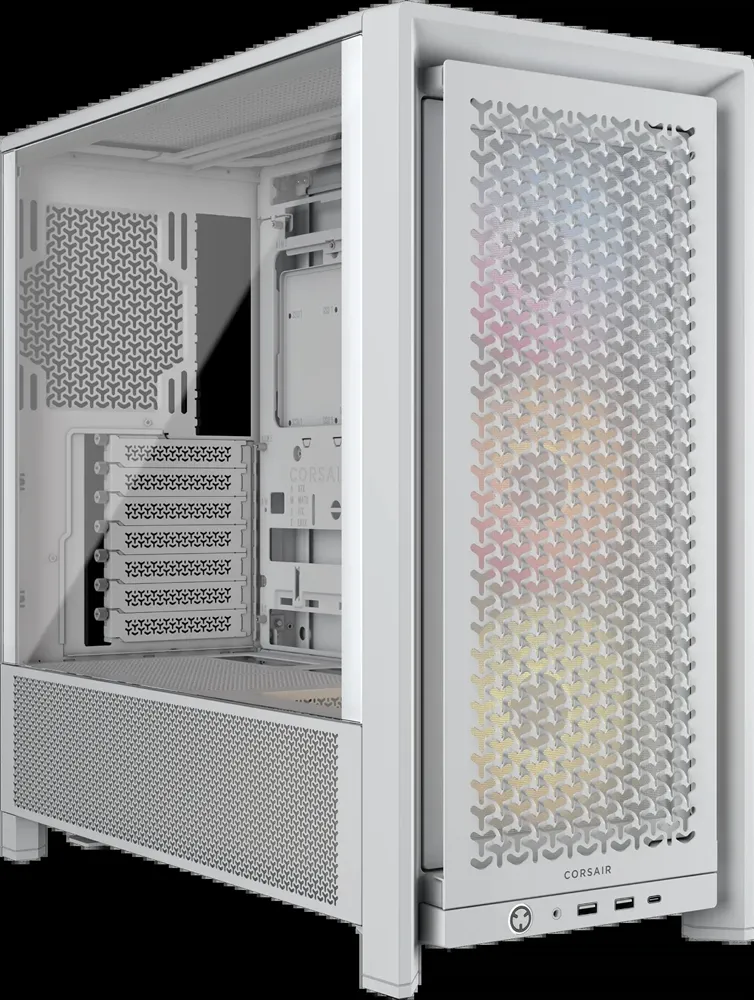

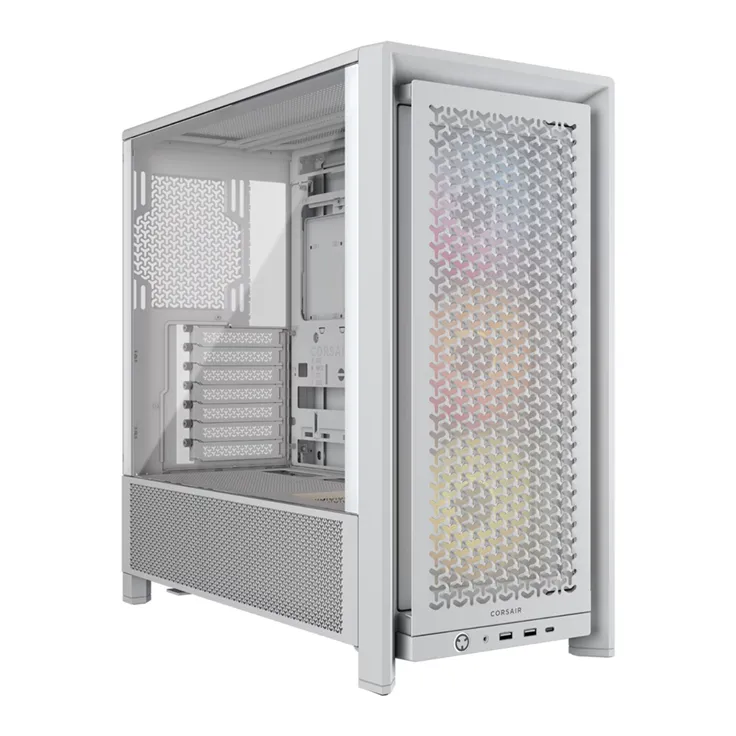

White Corsair FRAME 4000D RS ARGB tower with Y-pattern mesh and tempered-glass side panel
3 × 120 mmIncluded RS120 ARGB fans
E-ATXUp to 305 × 277 mm
2 × 360 mmMaximum dual radiator layout

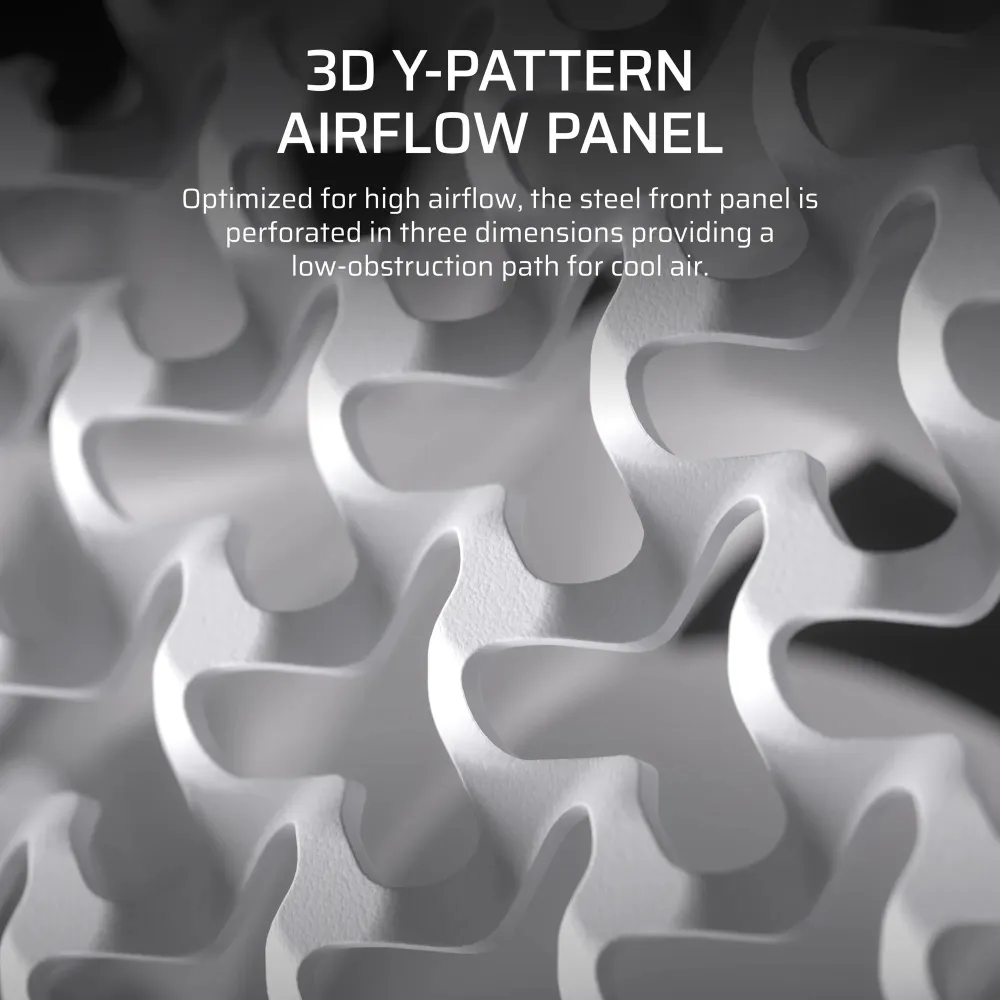

Airflow

Open mesh across the front

The repeating Y pattern leaves an open intake surface in front of the installed fans. Separate filters at the front, side and PSU intake catch dust where air enters the case.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Open mesh across the front

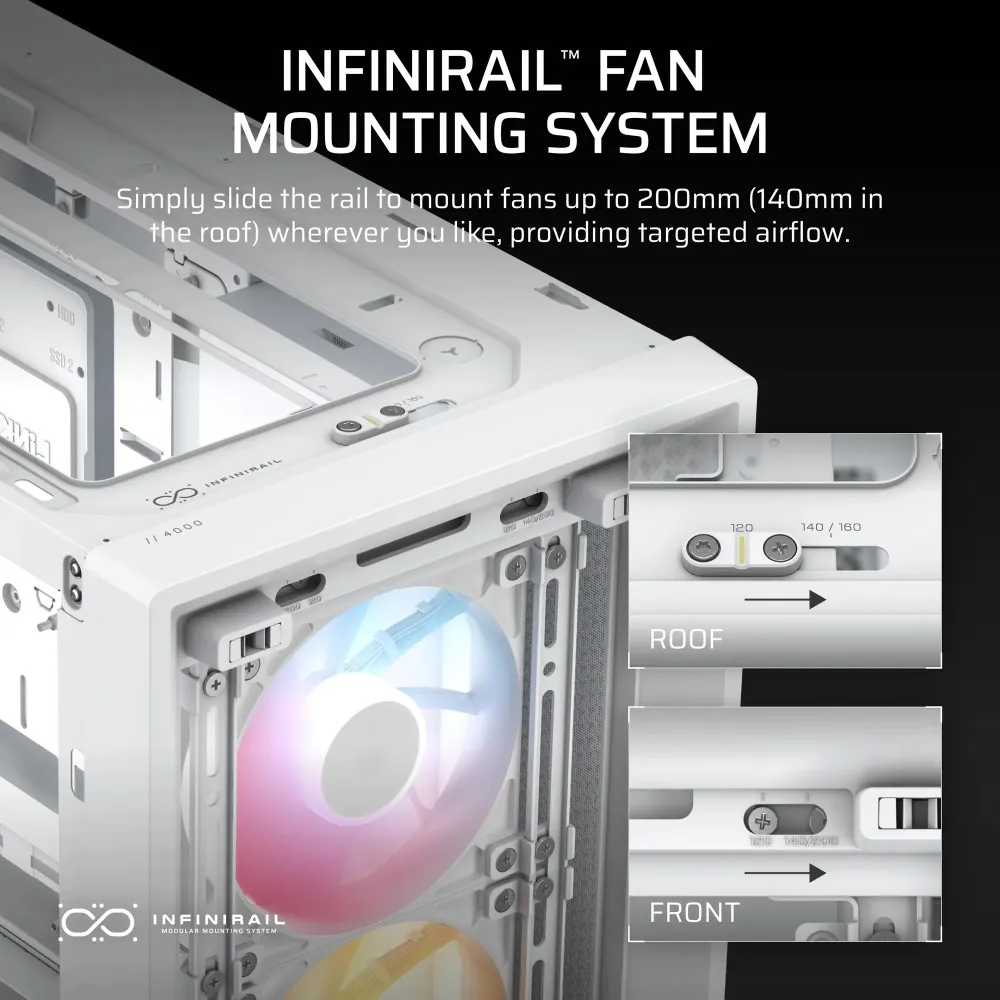

Fan positions

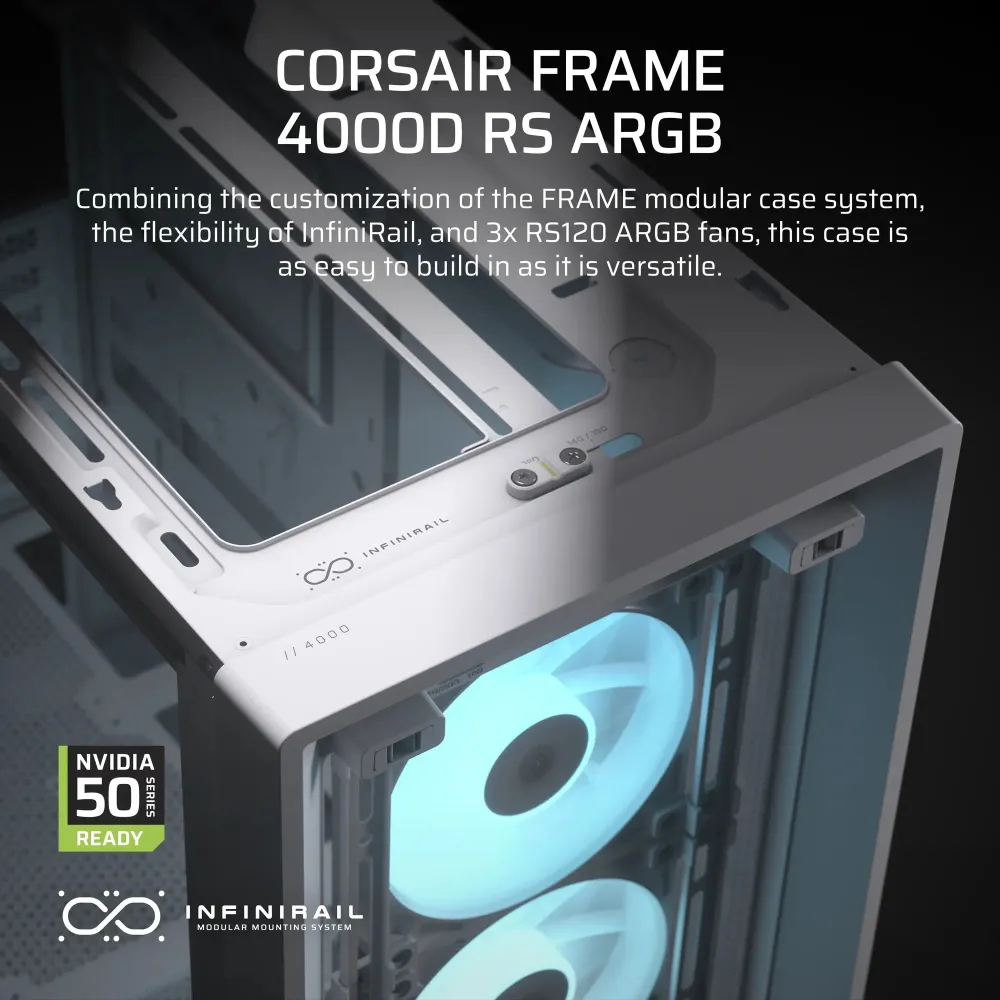

Slide the rails into place

InfiniRail lets you line up 120 or 140 mm fans at the front and roof. The front also accepts 200 mm fans. Check the side bracket position and PSU shroud clearance before choosing that larger size.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Slide the rails into place

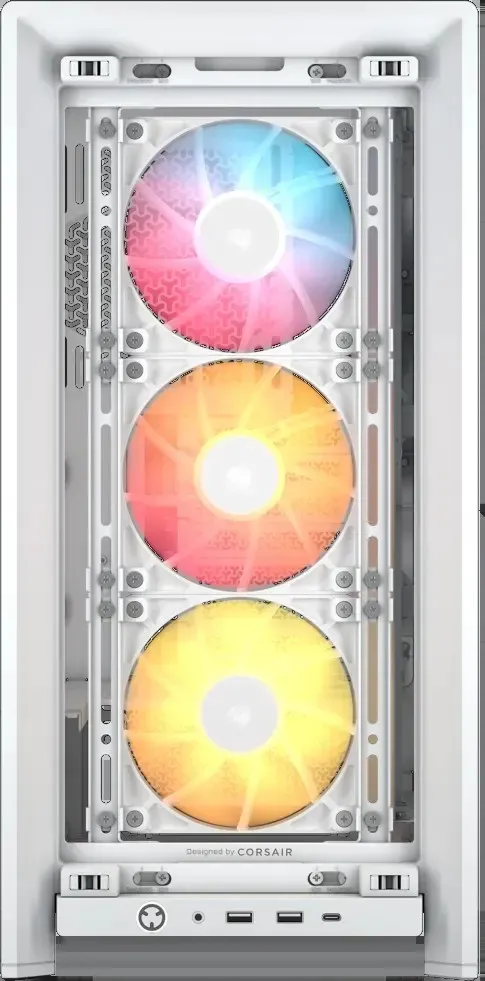

Supplied cooling

Connect three fans to the motherboard

Three 120 mm RS120 ARGB fans are already mounted at the front. Daisy-chain the four-pin PWM leads for speed control and connect the lighting to a compatible 5 V addressable RGB header. A lighting controller is sold separately.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Connect three fans to the motherboard

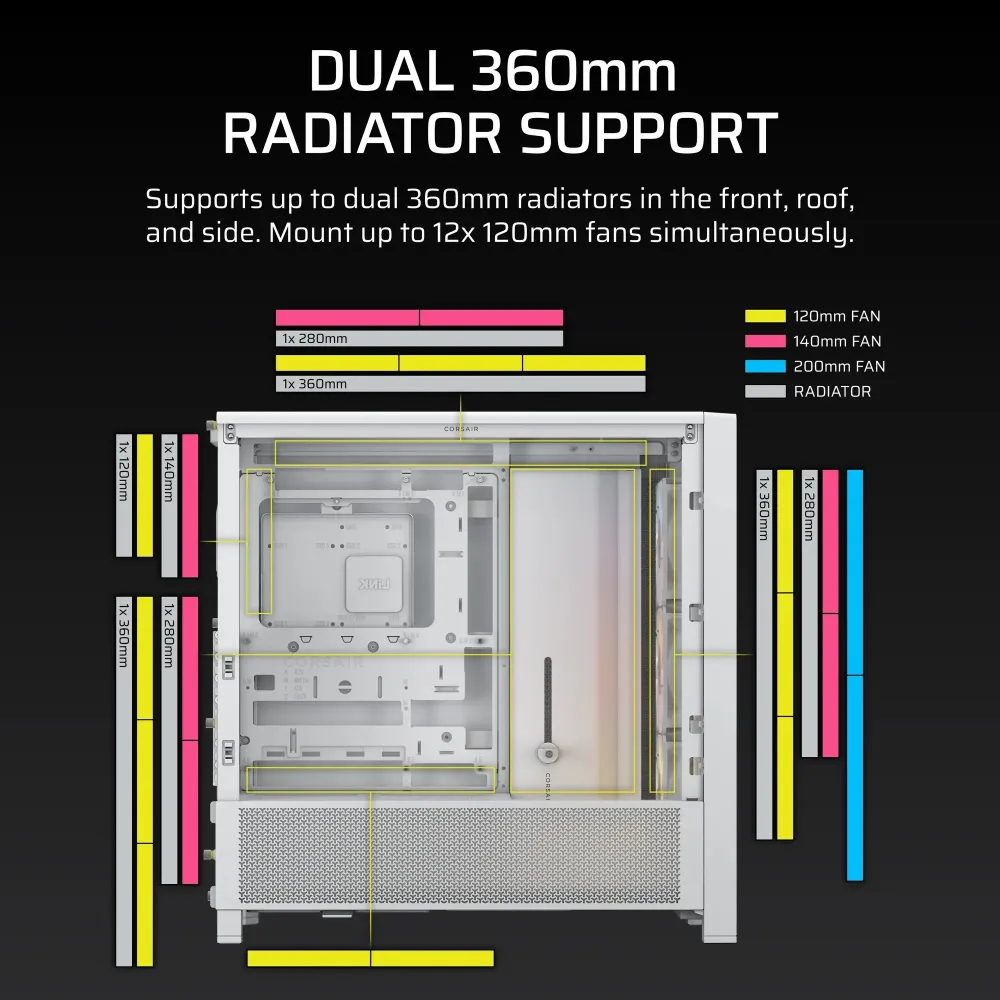

Liquid cooling

Plan the radiator pair before assembly

The front, roof and side each have a 360 mm mounting option. Some layouts can fit two 360 mm radiators together. Check radiator and fan thickness, tubing paths and graphics card clearance as a complete layout.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Plan the radiator pair before assembly

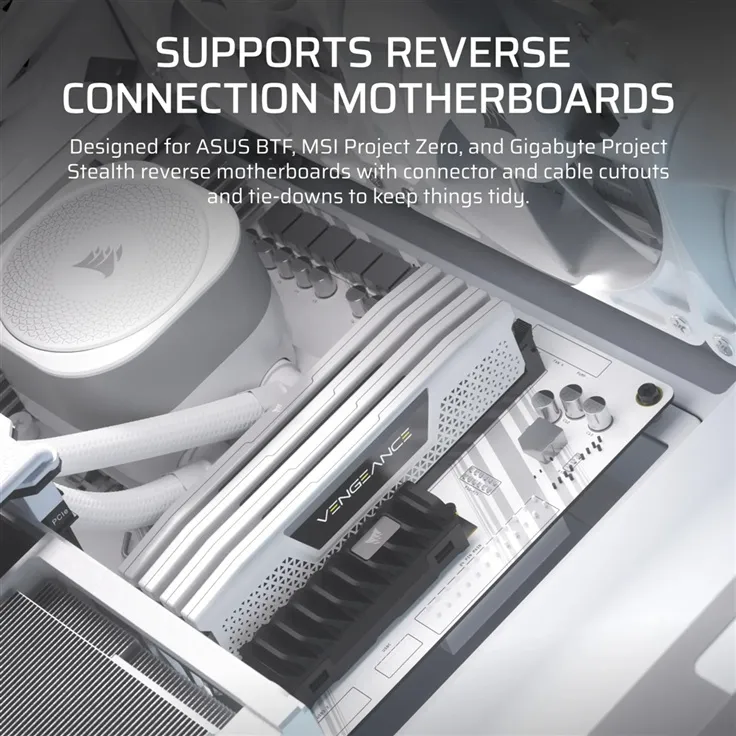

Motherboard and cables

Hide cables on the back of the tray

The white frame accepts conventional boards and compatible designs that put connectors on the back. Use the openings around the tray, the cable shroud and 37 mm of routing space to keep cables clear of the glass side.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Hide cables on the back of the tray

Graphics and fit

Choose how to present the graphics card

Mount a graphics card horizontally or use the vertical slots with a separately sold PCIe riser. The supplied support arm can help brace a long card. Measure the build with the fans and radiator in place before relying on the maximum component lengths.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Choose how to present the graphics card

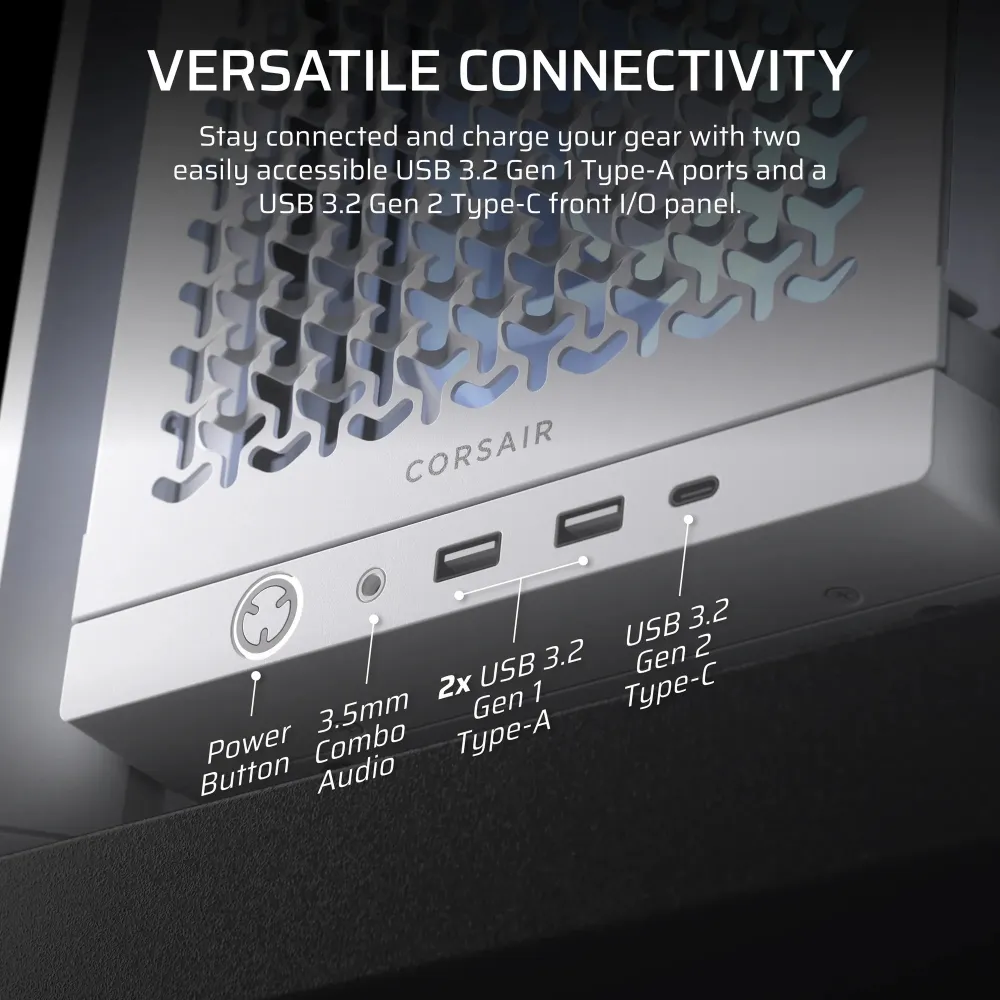

Front connections

Reach everyday ports at the case edge

Plug a headset into the combined audio port or use the two USB-A ports for desktop peripherals. The USB-C port connects through the motherboard’s internal Type-E header.

FRAME 4000D RS ARGB Mid-Tower PC Case; 3x RS ARGB PWM Fans; White. — Reach everyday ports at the case edge

Specifications

Chassis and component fit

ModelCC-9011297-WW
FinishWhite
FormatModular mid-tower
MaterialsSteel, Y-pattern airflow steel, tempered glass and plastic

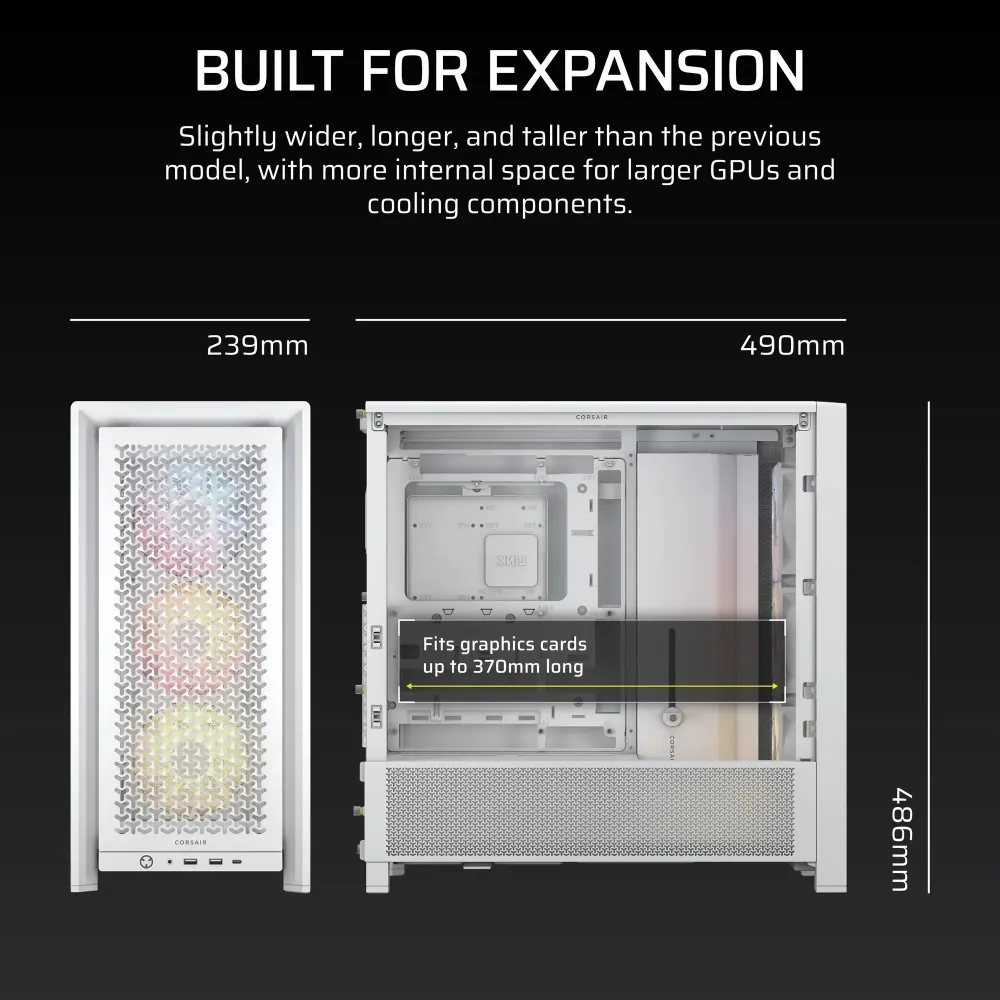

Case exterior, depth × width × height490 × 239 × 486 mm, as listed for CC-9011297-WW
MotherboardsMini-ITX, MicroATX, ATX and E-ATX up to 305 × 277 mm; supports compatible rear-connector motherboards
Graphics card limitThe manufacturer’s specification lists up to 430 mm. The product gallery shows 370 mm in the illustrated layout. Measure with your planned front fans or radiator fitted.
CPU air cooler limit170 mm
Power supplyATX, up to 220 mm
Expansion slots7 horizontal or 3 vertical; PCIe riser sold separately
Cable routing space37 mm
Side panelsTempered glass on the display side, steel behind the motherboard
Drive mountingCombination plates support up to 2 × 3.5-inch HDDs or 4 × 2.5-inch SSDs, with mixed capacity depending on positions used

Fans and radiator mounting

Included fans3 × Corsair RS120 ARGB PWM, front mounted
Fan power and lighting4-pin PWM; separate 5 V ARGB connection; compatible motherboard headers required for both controls
Front fans3 × 120 mm, 2 × 140 mm or 2 × 200 mm
Top fans3 × 120 mm or 2 × 140 mm
Side fans3 × 120 mm or 2 × 140 mm with side bracket
Rear fan1 × 120 mm or 1 × 140 mm
PSU shroud fans2 × 120 mm
Front, roof and side radiators240, 280 or 360 mm per position; up to two 360 mm radiators with suitable clearances
Rear radiator120 or 140 mm
Dust filtrationFront, side intake and PSU intake

Connections and coverage

USB-C1 × USB 3.2 Gen 2 Type-C (10 Gb/s on a compatible motherboard header)
USB-A2 × USB 3.2 Gen 1 Type-A (5 Gb/s)
AudioCombined microphone and headphone jack
Internal I/O connectionsType-E USB-C, USB 3.2 Gen 1, HD Audio and front-panel power/LED connector
Manufacturer case warrantyTwo years, subject to Corsair terms

Installed parts in the build images illustrate possible layouts. The case includes three front fans; graphics and liquid-cooling hardware are sold separately.
