ELGATO_STREAMDECK + XLR 10GBD9921

Product details

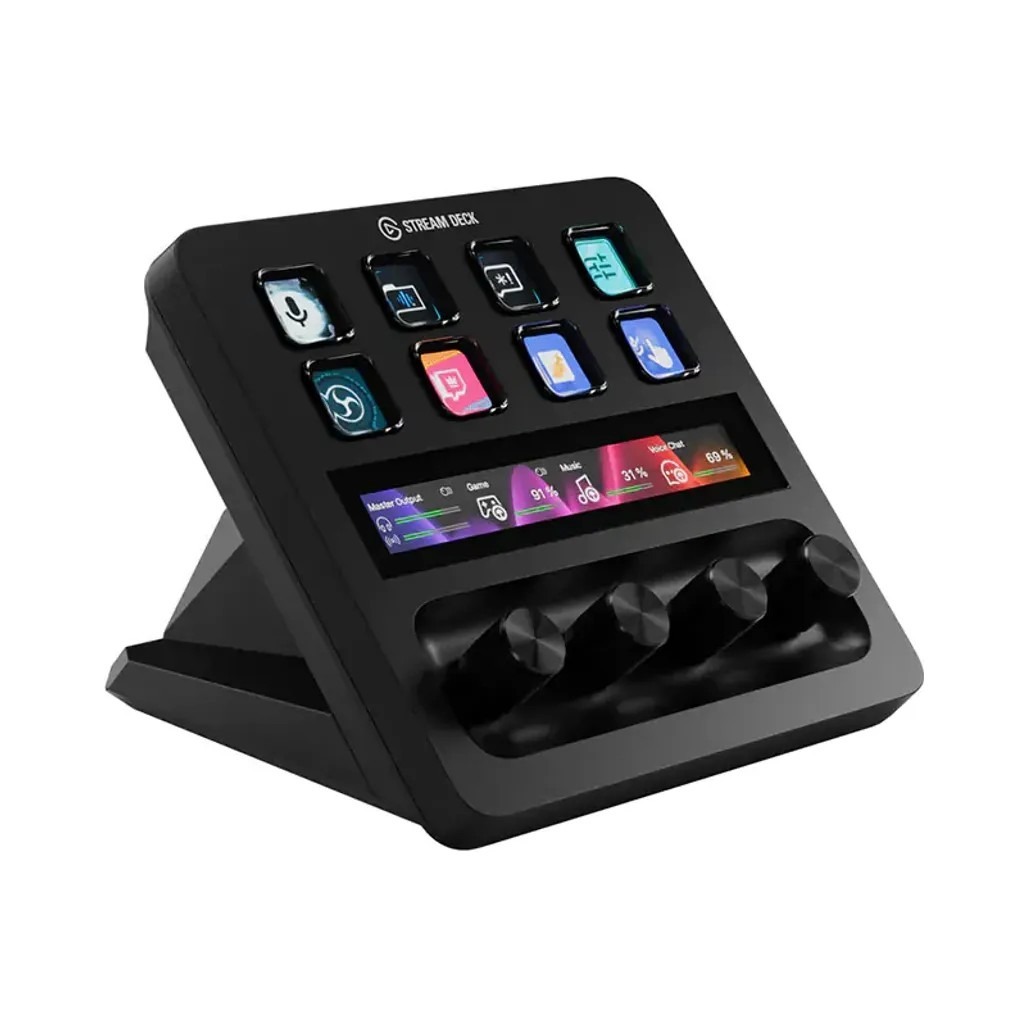

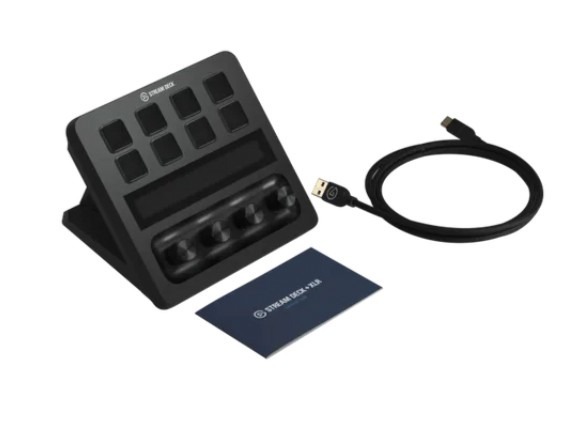

Elgato Stream Deck + XLR Dock (Model 10GBD9921)

Take full command of your content-creation setup with this all-in-one control hub. The Stream Deck + with XLR Dock combines customizable buttons, dials, and a touch strip with a professional XLR interface, giving streamers, podcasters, and creators the tools they need for smooth, high-quality production.

Key Features:

* 8 programmable LCD buttons: Assign macros, shortcuts, apps, or scenes to these visual keys.
* 4  multifunctional rotary dials (encoders): Great for adjusting volume, lighting, zoom, or fine tuning settings on the fly.
* Touch strip / LCD touch panel: Swipe through pages, monitor levels or system stats.

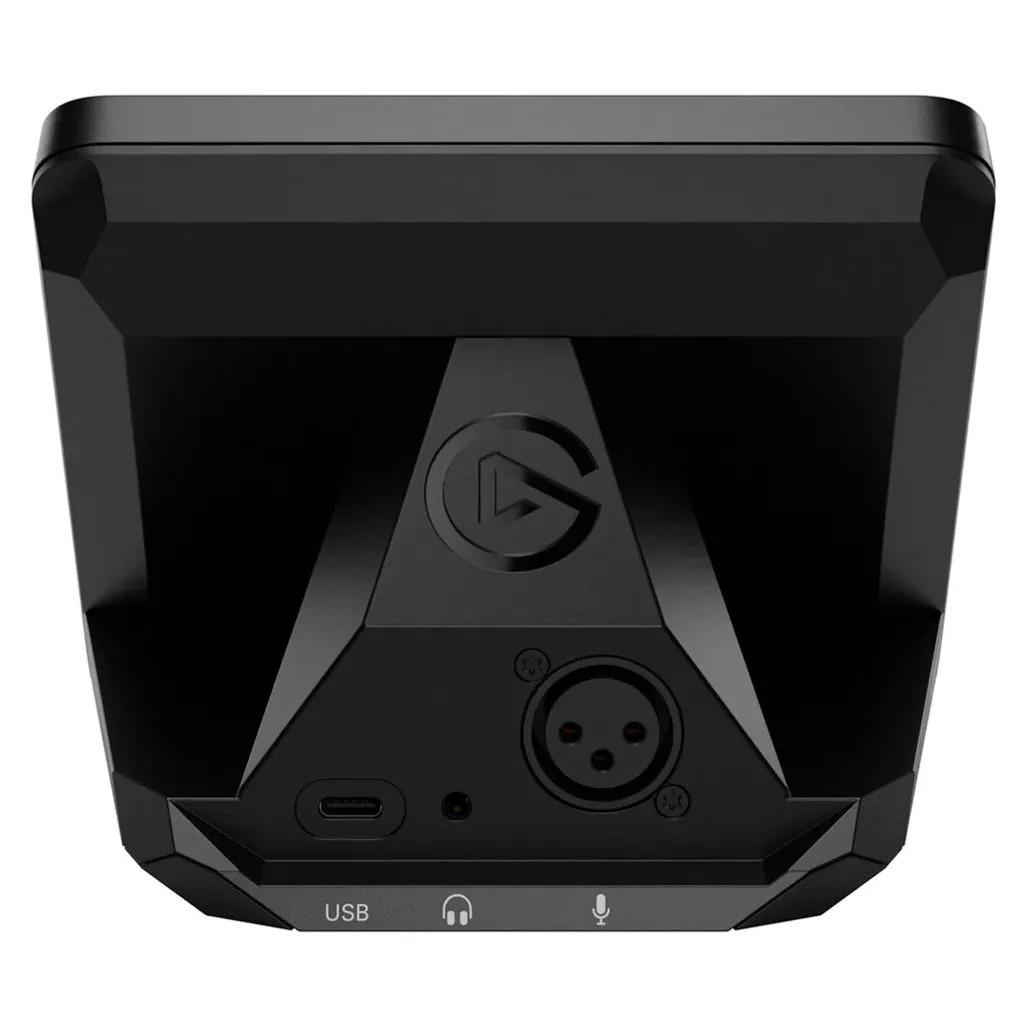

* Studio-grade XLR Dock built into the rear: Allows you to connect a 3-pin XLR microphone directly. Comes with a high quality preamplifier, 48V phantom power (for condenser mics), Clipguard to prevent distortion, and zero-latency headphone monitoring.

Specifications:

Specification Details
* Frequency Response 20 Hz – 20 kHz
* Gain Range 0 – 75 dB
* Dynamic Range ~100 dB (up to ~120 dB with Clipguard active)
* Noise (EIN) ˜ -130 dBV at 60 dB gain
* Phantom Power 48 V DC, ~7 mA
* Max Input Level ~10 V at 0 dB gain (with Clipguard)
* Sample Rate / Bit Depth 48 kHz, 24-bit resolution
* Physical Size ~140 × 138 × 110 mm
* Weight ~465 g
* Compatibility Windows 10 (64-bit) or newer; macOS 13 or newer

Why It’s Great:

* Combines multiple tools into one compact device — you don’t need a separate audio interface if you use a mic with XLR connector.
* Helps reduce desk clutter and simplify cable management thanks to the built-in dock and single USB-C connection.
* Offers real-time control and monitoring: adjust levels, switch scenes, control lighting or mic settings fast and accurately.
* Useful for both live streaming and post-production work: features like phantom power, Clipguard, and headphone monitoring give you pro audio tools.
