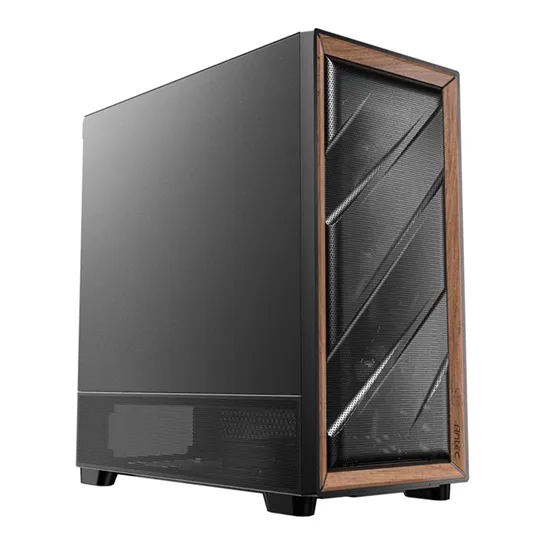

Antec FLUX SE · Black airflow mid-tower
Walnut at the front, five fans inside
The FLUX SE pairs a walnut-framed mesh front with two solid, foam-lined side panels. Five pre-installed PWM fans and vents around the power-supply chamber give you starting points for routing air through a full-size build. The removable top bracket lets you assemble the top cooling hardware outside the case.

Materials
Walnut and mesh on the same face
The mesh carries air through the front intake. The walnut surround gives the front a warmer finish, and the two tool-free side panels use sound-dampening foam inside.
Airflow
Direct intake below the graphics card
Three front fans feed the main chamber. A reverse fan on the power-supply shroud adds intake lower in the case and a 140 mm rear fan exhausts air. The integrated hub follows the motherboard’s PWM signal. The full-length bottom filter pulls out for cleaning.
Radiators
Build the top assembly outside the case
Mount the top fans or radiator to the removable bracket before lowering it into place. Antec documents a 360 mm front and 360 mm top combination, or a 420 mm front push-pull assembly paired with a 280 mm top radiator. Check your parts against the clearance drawings.
Motherboards and GPU
Choose the board and graphics-card orientation together
The tray takes E-ATX boards up to 330 mm wide, as well as ATX, Micro-ATX and Mini-ITX. Compatible back-connect boards route leads behind the tray. A separate vertical GPU bracket is needed if you use the open removable expansion-slot covers for a vertical card.
Power and ports
Keep the top controls easy to reach
Use the 10 Gbps USB-C port, two USB-A ports and combined audio jack from the front. Leave room for the PSU cables if you keep a hard drive fitted. Included straps and ties help keep surplus cable out of the main chamber.
