480GB Intel SSD, DC S3610 Series, 2.5″ Enterprise Server, DWPD 3, Solid State Drive

0.0 No reviews yet Write a review
SKU: SSDSC2BX480G4
New Supplier has stock — 2 avail

Intel DC S3610 SSDSC2BX480G4 480 GB 2.5-inch enterprise SATA SSD. Up to 550 MB/s read and 450 MB/s write; 3 DWPD endurance reference and enhanced power-loss protection.

R4,019.00

VAT included · Secure checkout

Supplier has stock — 2 avail

Key product details

Full specifications below
  • Mpn: SSDSC2BX480G4
  • Brand: Intel
Add to wishlist

Delivery & support

Clear fulfilment, warranty and payment details.

  • Availability Supplier has stock — 2 avail Supplier has stock — 2 avail
  • Delivery Nationwide courier delivery or collection from Strand, Cape Town. Courier nationwide or Strand collection
  • Dispatch Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation. Backorder — usually dispatched in 2–3 working days after payment verification, subject to supplier confirmation.
  • Warranty Manufacturer warranty applies where stated on the product page. As stated on this page
  • Returns See our Returns Policy for eligible change-of-mind and faulty goods procedures. See Returns Policy
  • Secure payment PayFast checkout with card, Instant EFT, and Mobicred. PayFast · card · EFT · Mobicred
Ask us a question

Intel DC S3610 · 480 GB enterprise SATA

Enterprise SATA storage, with endurance in view

The Intel DC S3610 480 GB pairs a 2.5-inch SATA format with an enterprise endurance reference of three drive writes per day. Its 480 GB specification combines sequential reads up to 550 MB/s and writes up to 450 MB/s with enhanced power-loss data protection and drive-health monitoring.

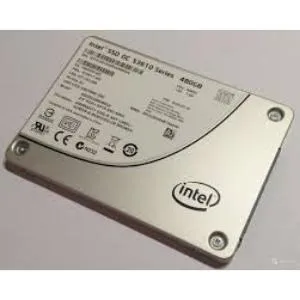

Intel SSD DC S3610 enterprise SATA solid-state drive in its silver 2.5-inch enclosure
480 GBNominal enterprise capacity
550 / 450 MB/sSequential read / write reference
3 DWPDManufacturer endurance reference
SATA 6 Gb/s2.5-inch connection

The server fit

Start with the bay, interface and workload

The 480 GB DC S3610 brings enterprise solid-state storage to a compatible 2.5-inch SATA server bay. Intel’s 2.5-inch enclosure drawing specifies a maximum length of 100.45 mm, width of 69.85 mm (±0.25 mm) and thickness of 7.0 mm (+0/−0.5 mm). Confirm carrier and backplane fit for the intended server. Check that the exact drive, controller and host operating system support the features your installation needs.

Capacity-specific performance

Keep the 480 GB figures in view

Intel specifies sequential reads up to 550 MB/s and writes up to 450 MB/s for this 480 GB model, measured with IOMeter, 128 KB transfers and queue depth 32. Its 4 KB random references are up to 84,000 read IOPS and 28,000 write IOPS at queue depth 32 over the full drive address range. These are manufacturer test references, not a prediction for every application or storage array.

Endurance with context

Plan writes over the service period

Intel rates the series for three drive writes per day over five years under its JESD218 endurance basis. The 480 GB model’s separate endurance table lists up to 3.7 PB using the JESD219 workload. Use the stated conditions when sizing a workload, and check warranty entitlement separately for the supplied unit.

Data protection and visibility

Protection built around the storage path

Enhanced power-loss protection, end-to-end data protection and a power-loss capacitor self-test are part of the DC S3610 design. SMART information provides drive-health, temperature and wear references for a suitable management system. These features complement backups and controlled shutdown procedures; they do not establish a guarantee that every failure leaves data recoverable.

Host and environment

Support the drive as part of the system

The 2.5-inch design accepts 5 V SATA power or combined 5 V + 12 V supplies; it does not operate on 12 V alone. Intel specifies a 0–70°C case operating range with temperature monitoring and thermal throttling. Hot insertion and removal require the proper connector and operating-system support. Check the current server and storage-controller guidance before changing a live system.

Retention and legacy support

Retention at rated endurance

Intel’s retention reference is three months without power at 40°C once rated write endurance has been reached. This defined test condition helps put the endurance specification in context. The September 2016 specification also lists historical Windows, Linux and VMware support references; check current guidance for your particular host and operating system.

Specifications

Identity and capacity

ManufacturerIntel
SeriesSSD DC S3610
Exact manufacturer partSSDSC2BX480G4
Nominal capacity480 GB
Device roleInternal enterprise/server solid-state drive
Form factor2.5-inch
InterfaceSATA Revision 3.0; SATA6Gb/s
Supported SATA rates6 Gb/s, 3 Gb/s and 1.5 Gb/s
User-addressable sectors937,703,088 sectors of 512 bytes
Capacity basis1 GB = 1,000,000,000 bytes; formatted capacity and host reporting differ
Catalogue capacity category251 GB to 999 GB catalogue category; actual drive capacity is 480 GB

Endurance and data protection

Drive writes per day3 DWPD over five years, manufacturer JESD218 basis
Power-loss protectionEnhanced power-loss data protection;capacitor self-test
Data-path protectionEnd-to-end data protection
Drive monitoringEnhanced SMART;temperature monitoring/logging;wear indicators
Flash technology referenceIntel 20 nm High Endurance Technology multi-level-cell NAND
Data retention referenceThree months power-off at 40°C once rated write endurance is reached
Retention boundaryApplies at rated write endurance under the stated manufacturer test conditions
Reliability estimate2 million-hour MTBF, a statistical manufacturer estimate; not individual service life or warranty duration
480 GB endurance tableUp to 3.7 PB under JESD218 verification and JESD219 workload

Power, environment and integration

Power connection5 V or 5 V + 12 V SATA supply; 12 V-only unsupported
Power conditionsRMS averages measured over 100 ms; power-loss capacitor charge enabled
Operating case temperature0–70°C
Temperature managementInternal sensor;monitoring/logging;thermal throttling
Hot-plug boundaryRequires appropriate SATA connector, host and operating-system support
Command featuresNCQ;TRIM;SMART;ATA/ATAPI ACS-2reference
Host fitConfirm exact controller, backplane, carrier and physical-clearance support
Historical OS scopeThe 2016 specification lists legacy Windows/Windows Server, VMware and Linux releases; no current-version certification inferred
Documentation revisionIntel 331342-007US, September 2016
480 GB, 5 V active write5.3 W RMS average under 128 KB QD32 sequential-write test
480 GB, 5 V active read2.7 W RMS average under 128 KB QD32 sequential-read test
480 GB, 5 V idle0.57 W manufacturer reference
Drive enclosure (L × W × H)100.45 mm maximum × 69.85 mm (±0.25 mm) × 7.0 mm (+0/−0.5 mm), manufacturer 2.5-inch drawing
Physical-fit boundaryCheck carrier, backplane connector and available clearance for the exact host; manufacturer drawing is not a supplied-unit measurement

Performance references — 480 GB

Sequential readUp to 550 MB/s
Sequential writeUp to 450 MB/s
Sequential test conditionsIOMeter; 128 KB (131,072-byte) transfers; queue depth 32; SATA 6 Gb/s
Random test conditionsIOMeter; queue depth 32; full logical address range; 4 KB = 4,096 bytes
Typical sequential latency55 µs read; 66 µs write
Latency conditionsIOMeter; 4 KB sequential transfers; queue depth 1
Performance qualificationManufacturer reference; actual host, controller, workload and system configuration affect results
Random4 KB readUp to 84,000 IOPS
Random4 KB writeUp to 28,000 IOPS

Driver & Software Downloads

Use official support resources for this product. Each link opens in a new tab.

Intel SSD DC S3610 product specification

Official Intel September 2016 specification, document 331342-007US. Includes separate capacity tables; use the 480 GB 2.5-inch column. Technical reference, not an installation or firmware package.
